Ignition Switch: Service and Repair

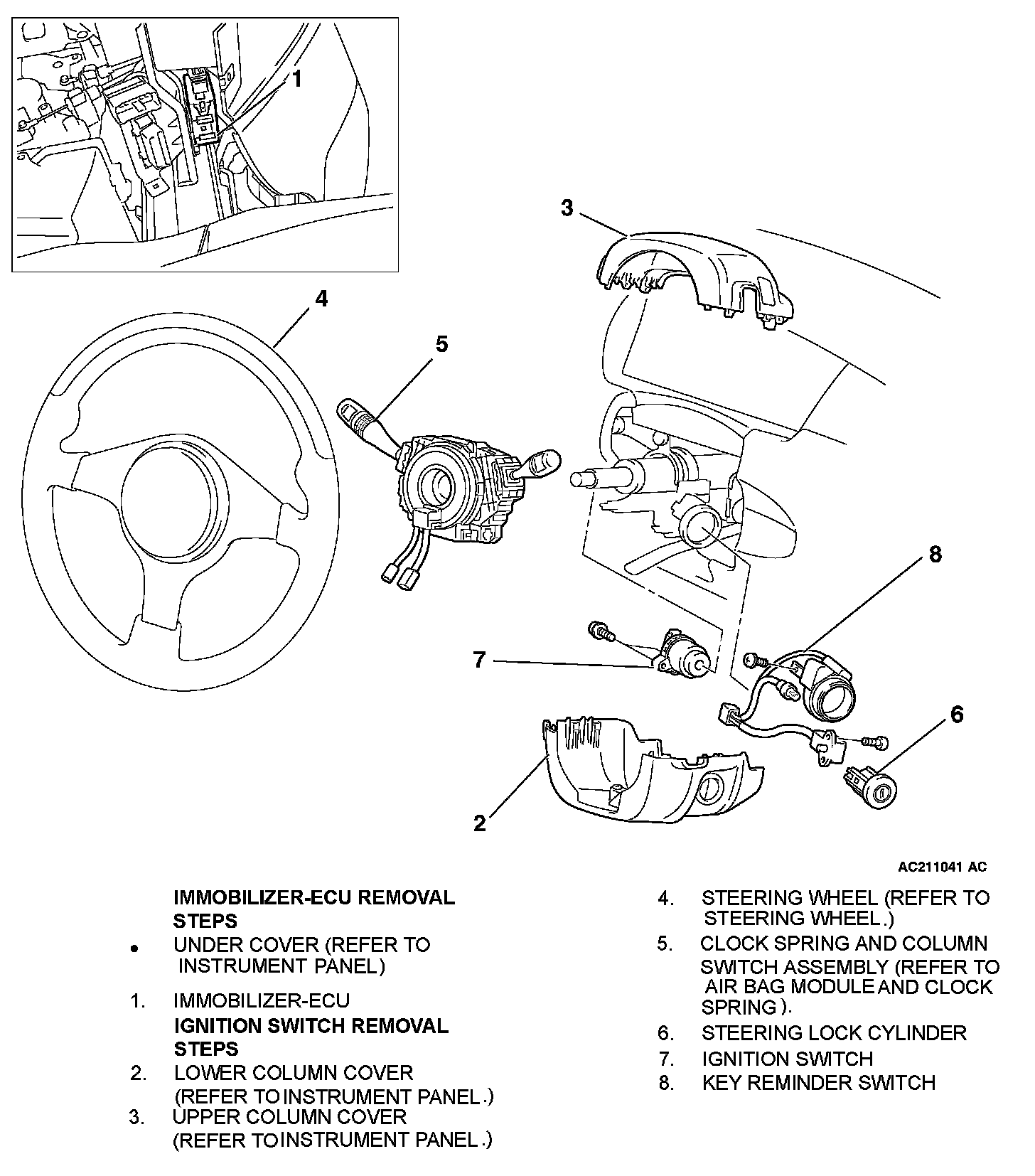

IGNITION SWITCHRemoval Steps 1-8:
REMOVAL AND INSTALLATION
WARNING:
- Before removing the steering wheel, air bag module assembly refer to Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
Required Special Tool:
- MB990784: Ornament remover
REMOVAL SERVICE POINTS
<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
