Ignition Switch Continuity Check

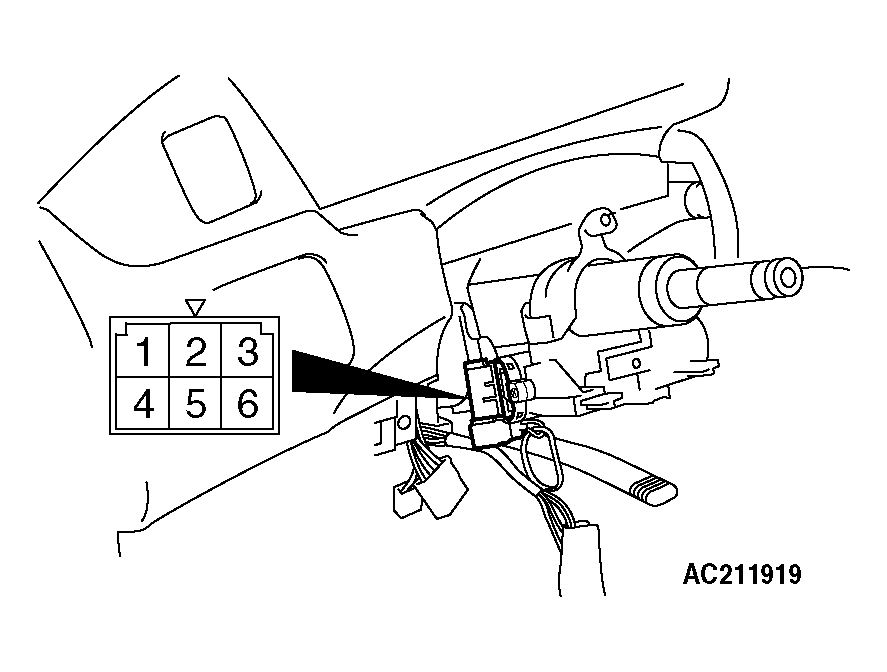

Disconnect ignition switch connector C-87 without removing the ignition switch and steering lock cylinder. Then check the continuity.
TESTER CONNECTION SPECIFIED CONDITION
| SWITCH POSITION | TESTER CONNECTION | SPECIFIED CONNECTION |
|---|---|---|
| "LOCK" (OFF) | 1 - 2, 1 - 4, 1 - 5, 1 - 6 | Open circuit |
| "ACC" | 1 - 6 | Less than 2 ohms |
| "ON" | 1 - 2, 1 - 4, 1 - 6 | Less than 2 ohms |
| "START" | 1 - 2, 1 - 5 | Less than 2 ohms |
