Operating The Transmitter Unlock Button Press Twice

When the transmitter unlock button is pressed twice, the ETACS-ECU energizes its door unlock relay to operate the driver's door lock actuator and the other door lock actuators for 0.25 second each in succession. Then, the doors will be unlocked.

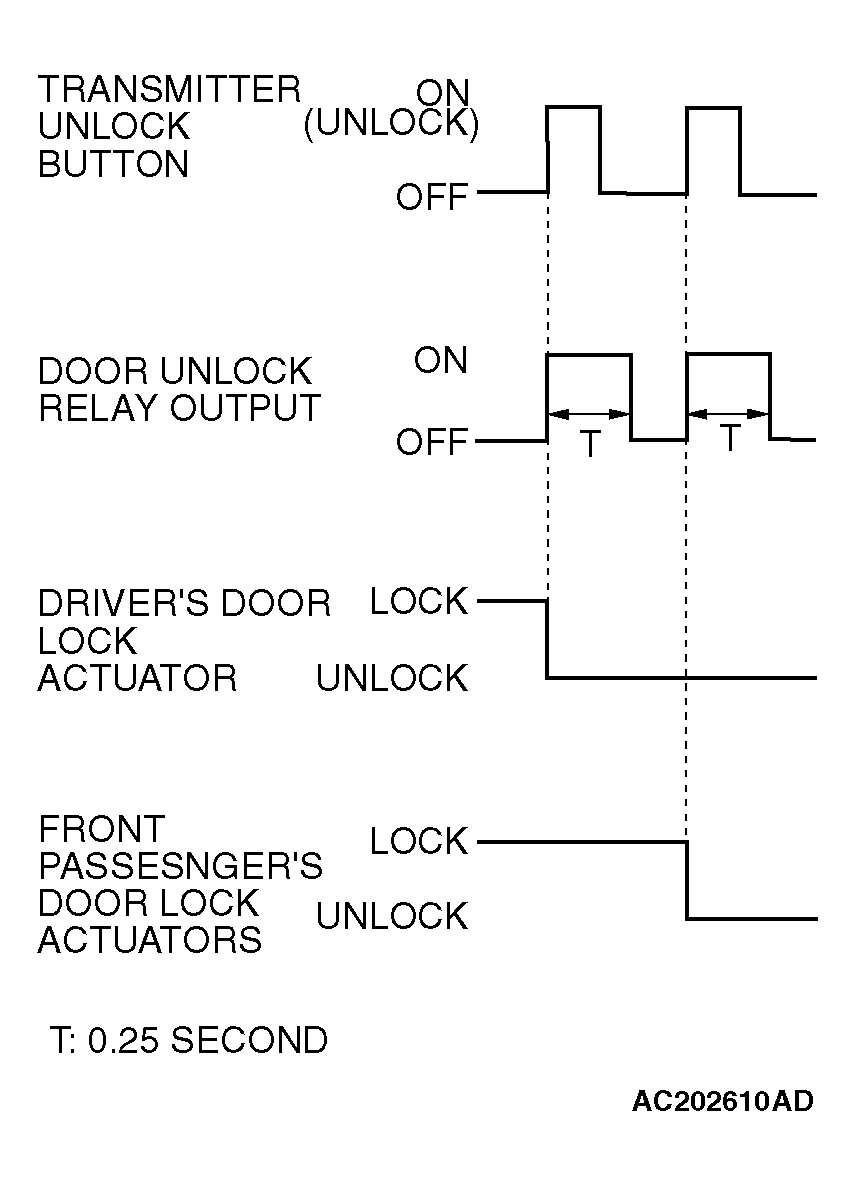

Fig 1: Drive Pattern - Transmitter Unlock Button Press Twice
G04298828Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
