Disassembly And Assembly: Notes

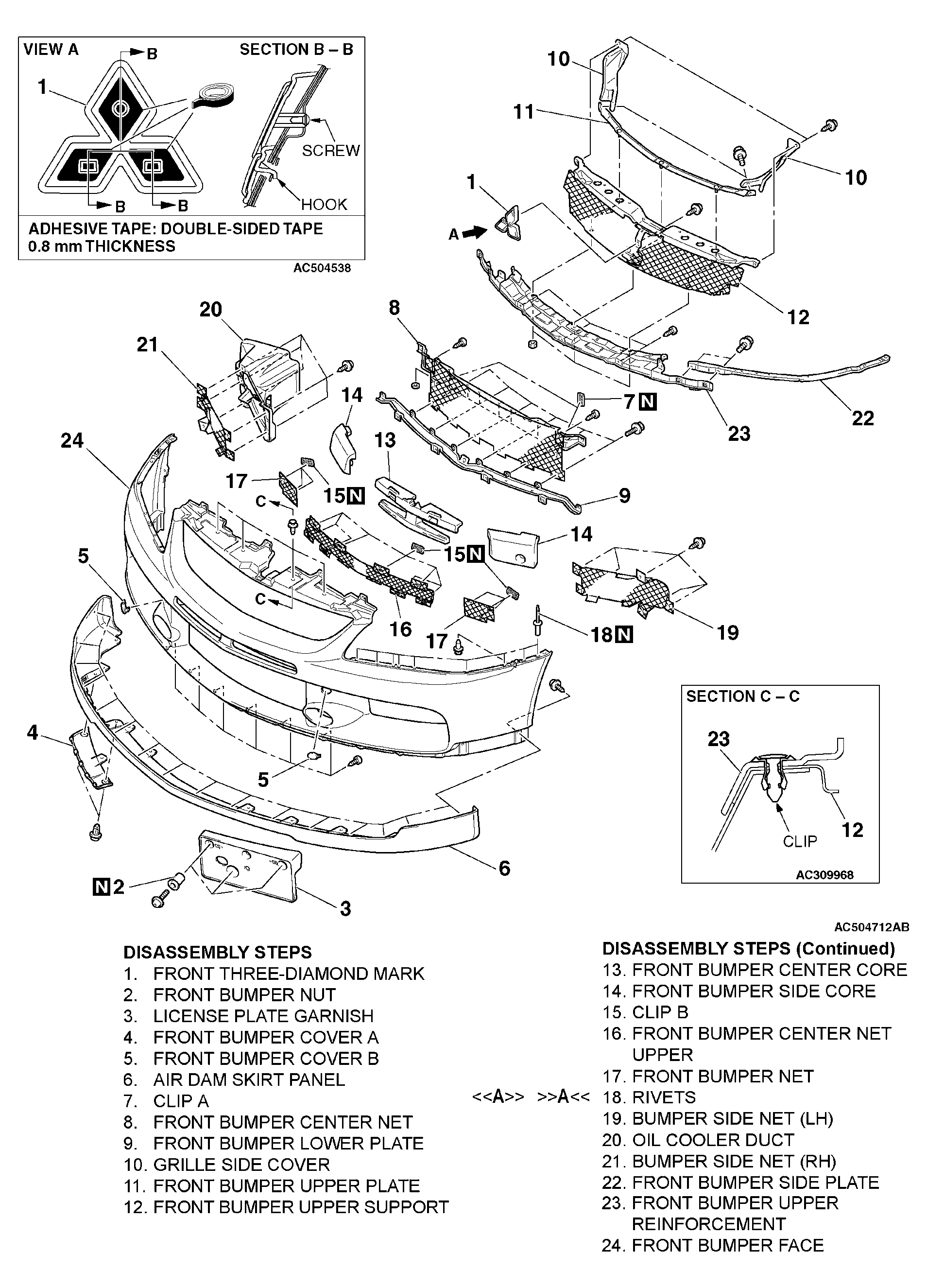

Fig 1: Exploded View Of Front Bumper Assembly
G04297770Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
