DTC 71: Lateral G-Sensor System: Notes

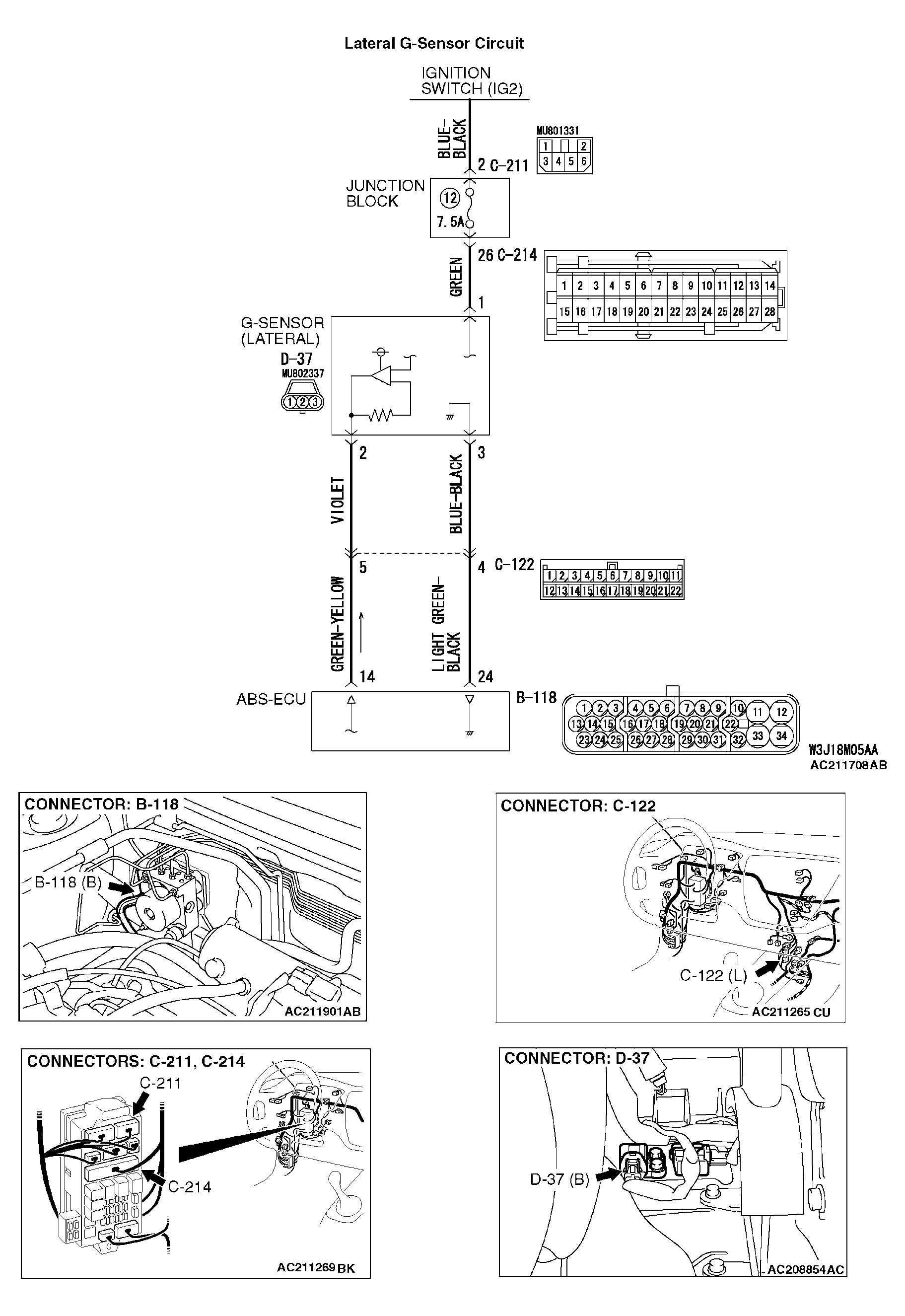

Fig 1: Lateral G-Sensor Circuit Diagram
G04297394Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
