Lateral/Longitudinal G-Sensor Check

Required Special Tool:

• MB991348: Test Harness

1. Disconnect the G-sensor connector and connect special tool MB991348, between terminals of the disconnected connector.
2. With the ignition switch turned to the "ON" position, read the voltage between terminals number 2 and number 3.

   Standard Value: 2.4 -2.6 V

3. With special tool MB991348 connected, rotate so that the arrow points straight down. Read output voltage between terminals number 2 and number 3.

   Standard Value: 3.4 -3.6 V

4. If the voltage deviates from the standard value, and nothing is wrong with the power supply wire and ground wire, replace the G-sensor.

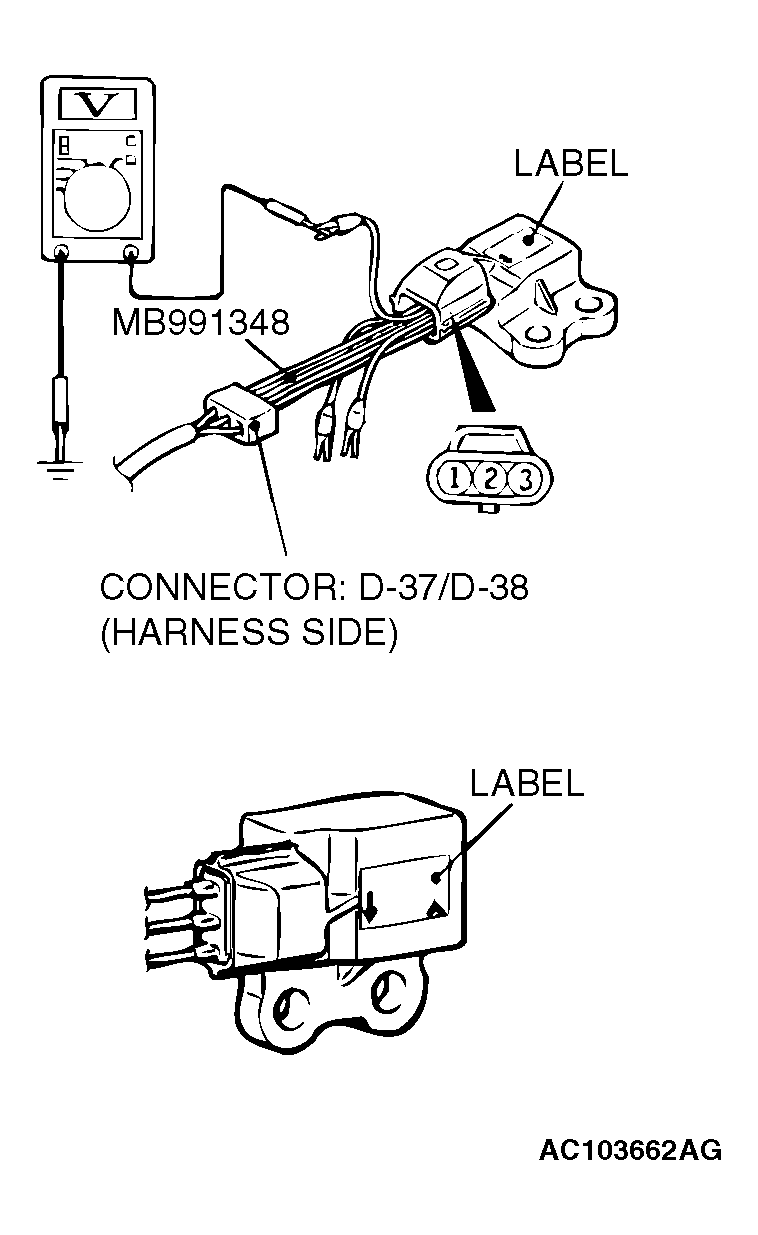

   Fig 1: Checking Voltage Between Terminals Number 2 And Number 3

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
