Removal And Installation: Notes

NOTE: The ABS-ECU is integrated in the hydraulic unit.

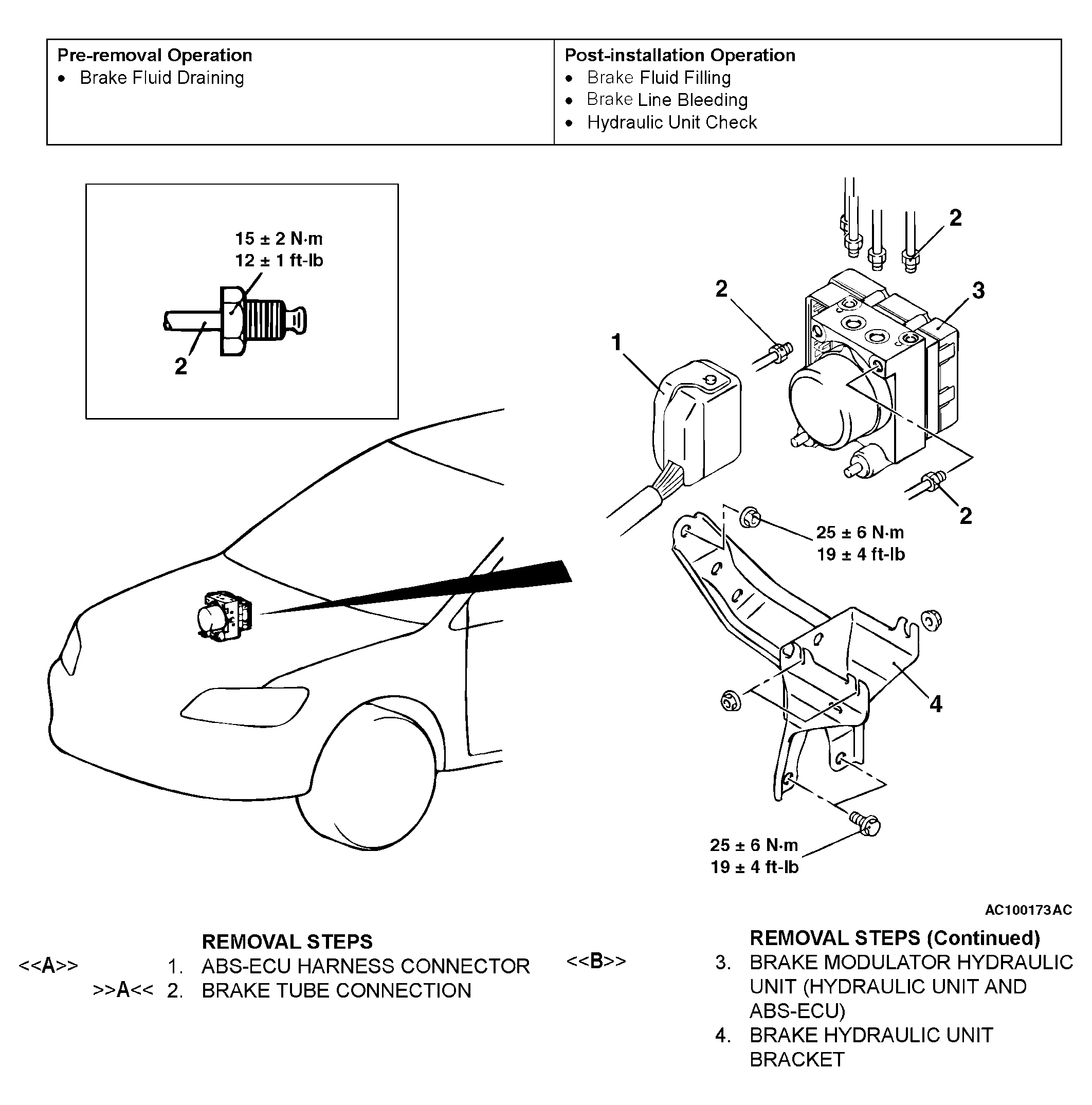

Fig 1: Removing/Installing Hydraulic Unit
G04297527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
