Removal And Installation

CAUTION:
  • Before removing the steering wheel and air bag module assembly, be sure to refer to SERVICE PRECAUTIONS ) and AIR BAG MODULE(S) AND CLOCK SPRING .
  • Make sure no oil adheres to the steering angular velocity sensor because a photointerruptors are mounted on the steering angular velocity sensor.

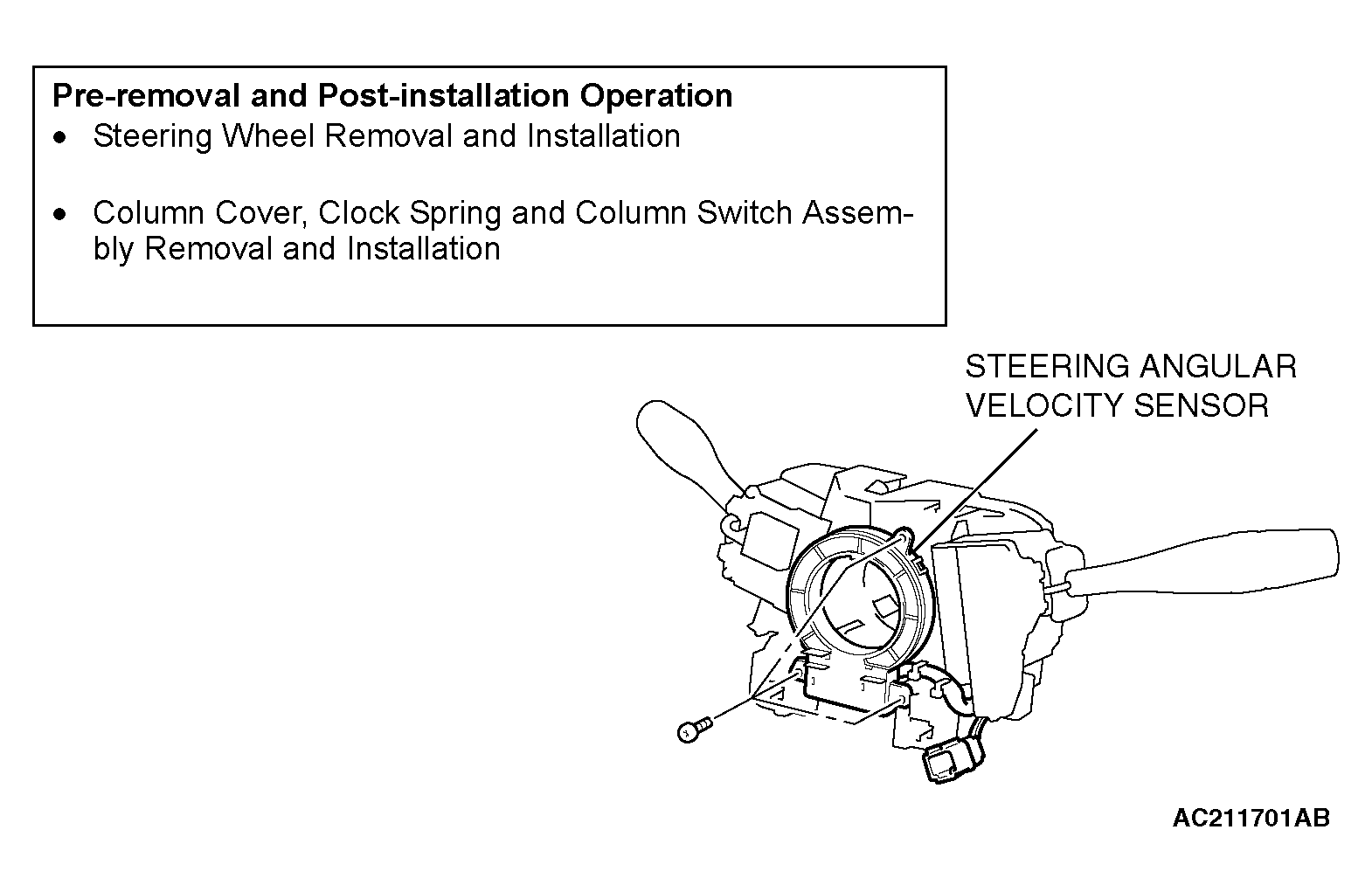

Fig 1: Removing/Installing Steering Angular Velocity Sensor
G04297538Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
