Special Tools: Notes

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04297048
 MB991115
Oil seal installer		 - Press-fitting of the differential carrier oil seal (Use together with MB990938)
G04297049
 MB990767
Front hub and flange yoke holder		 MB990767-01 Rear wheel hub fixing
G04297050
 MB991618
Hub bolt remover		 General service tool Hub bolt removal
G04297051
 MB990241
Axle shaft puller
  1. MB990242 Puller shaft
  2. MB990244 Puller bar
 MB990241-01 or General service tool
  • Removal of the rear wheel hub
  • Removal of the driveshaft
G04297052
 MB991354
Puller body		 General service tool
G04297053
 MB990590
Rear axle shaft oil seal remover
  1. MB990212 Adapter
  2. MB990211 Slide hammer
 - Removal of the rear wheel hub
G04297054
 MB991897
Ball joint remover		 MB991113-01, MB990635-01 or General service tool
  • Knuckle and rear suspension arms ball joint disconnection
NOTE: Steering linkage puller (MB990635 or MB991113)is also used to disconnect knuckle and tie rod end ball joint.
G04297055
  1. MB991017
  2. MB990998
  3. MB991000

A, B: Front hub remover and installer
C: Spacer		 MB990998-01
  • Provisional holding of the wheel bearing
  • Measurement of wheel bearing breakaway torque
  • Measurement of wheel bearing end play
NOTE: MB991000, which belongs to MB990998, should be used as a spacer.
G04297056
 MB990641
Lower arm bush (A) remover and installer		 - Removal and installation of the differential support member bushing
G04297057
 MB991439
Bush remover and installer		 -
G04297058
 MB990909
Working base		 General service tool Supporting of the differential carrier
G04297059
 MB991116
Working base adapter		 General service tool
G04297060
 MB990810
Side bearing puller		 MB990810-01
  • Removal of the side bearing inner race
  • Removal of the companion flange
G04297061
 MB990811
Side bearing cup		 MB990811-01 Removal of the side bearing inner race
G04297062
 MB990850
End yoke holder		 MB990767-01 Companion flange fixing
G04297063
 MD998801
Remover		 General service tool Removal of drive pinion rear bearing inner race
G04297064
 MB990835
Drive pinion setting gauge set
  1. MB990836 Drive pinion gauge assembly
  2. MB990392 Cylinder gauge
 - Adjustment of the drive pinion height
G04297065
 MB990988
Side bearing holding tool set		 - Measurement of clutch plate preload
G04297066
 MB990326
Preload socket		 General service tool
  • Measurement of the wheel bearing breakaway torque
  • Measurement of the drive pinion turning torque
G04297067
 MB990685
Torque wrench		 General service tool
G04297068
 MB990728
Bearing installer		 MB99802-01 Press-fitting of the drive pinion rear bearing inner race
G04297069
 MB990727
Oil seal installer		 MB990031-01 Press-fitting of the drive pinion oil seal
G04297070
 MB990925
Bearing and oil seal installer set
  1. MB990926 - MB990937 Installer adapter
  2. MB990938 Bar
  3. MB990939 Brass bar
 MB990925-01 or General service tool
  • Press-fitting of differential carrier oil seal (Use together with MB991115)
  • Inspection of final drive gear tooth contact
  • Removal and installation of drive pinion front/rear bearing outer race
SPECIAL TOOLS

TOOL TYPE TOOL NUMBER O D mm (in)

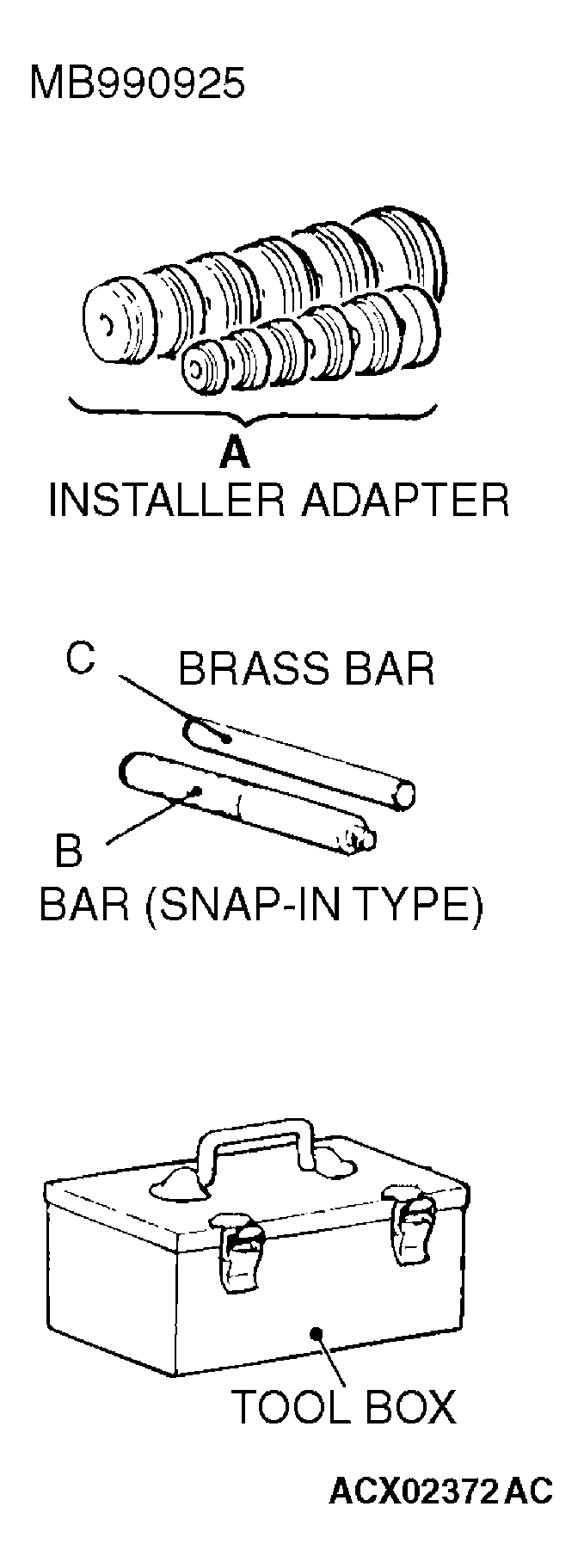

G04297071
 A MB990926 39.0 (1.54)
MB990927 45.0 (1.77)
MB990928 49.5 (1.95)
MB990929 51.0 (2.00)
MB990930 54.0 (2.13)
MB990931 57.0 (2.24)
MB990932 61.0 (2.40)
MB990933 63.5 (2.50)
MB990934 67.5 (2.66)
MB990935 71.5 (2.81)
MB990936 75.5 (2.97)
MB990937 79.0 (3.11)
B MB990938 -
C MB990939 -
