Removal And Installation

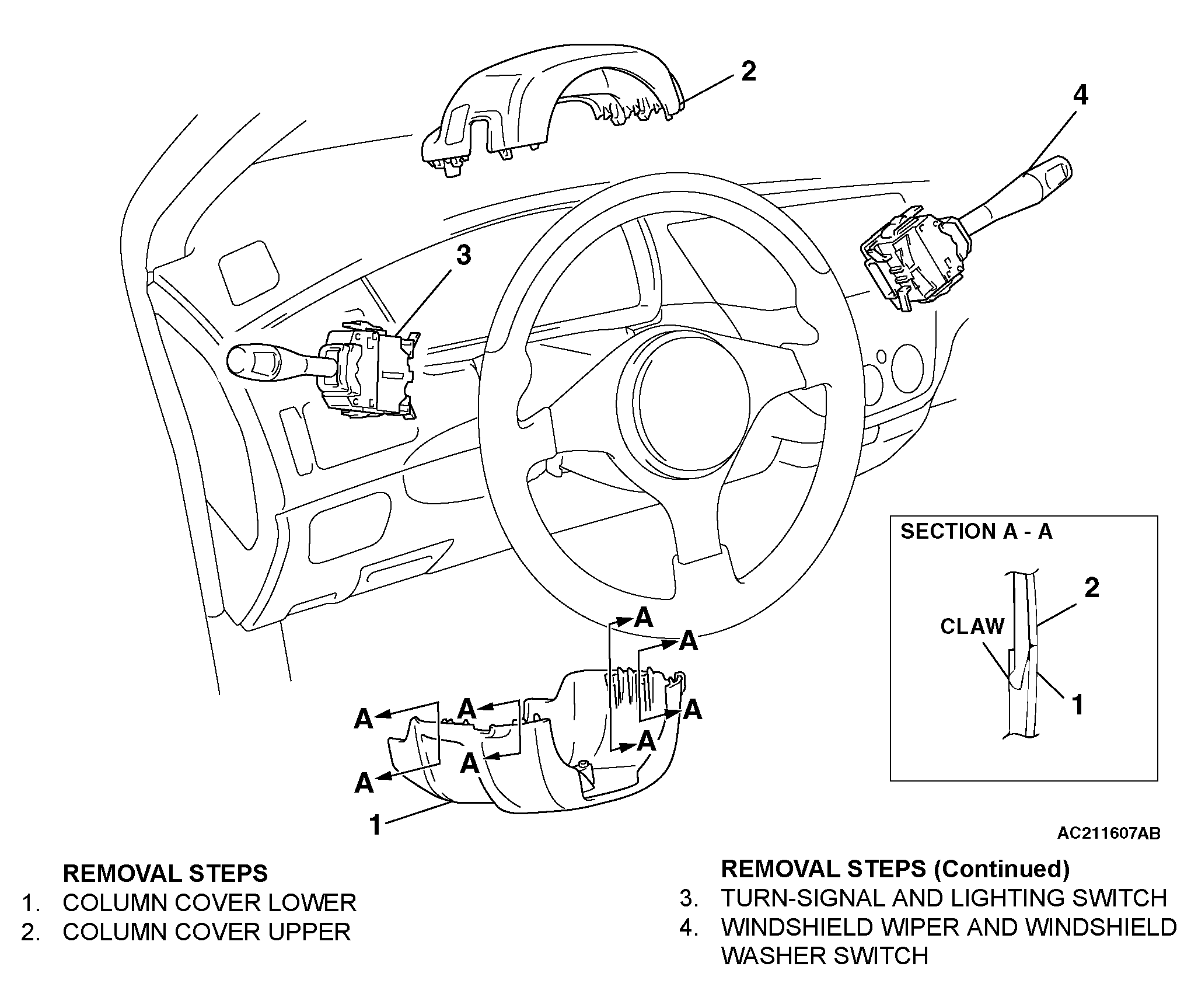

Fig 1: Removing/Installing Column Switch
G04298406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
