Removal And Installation: Notes

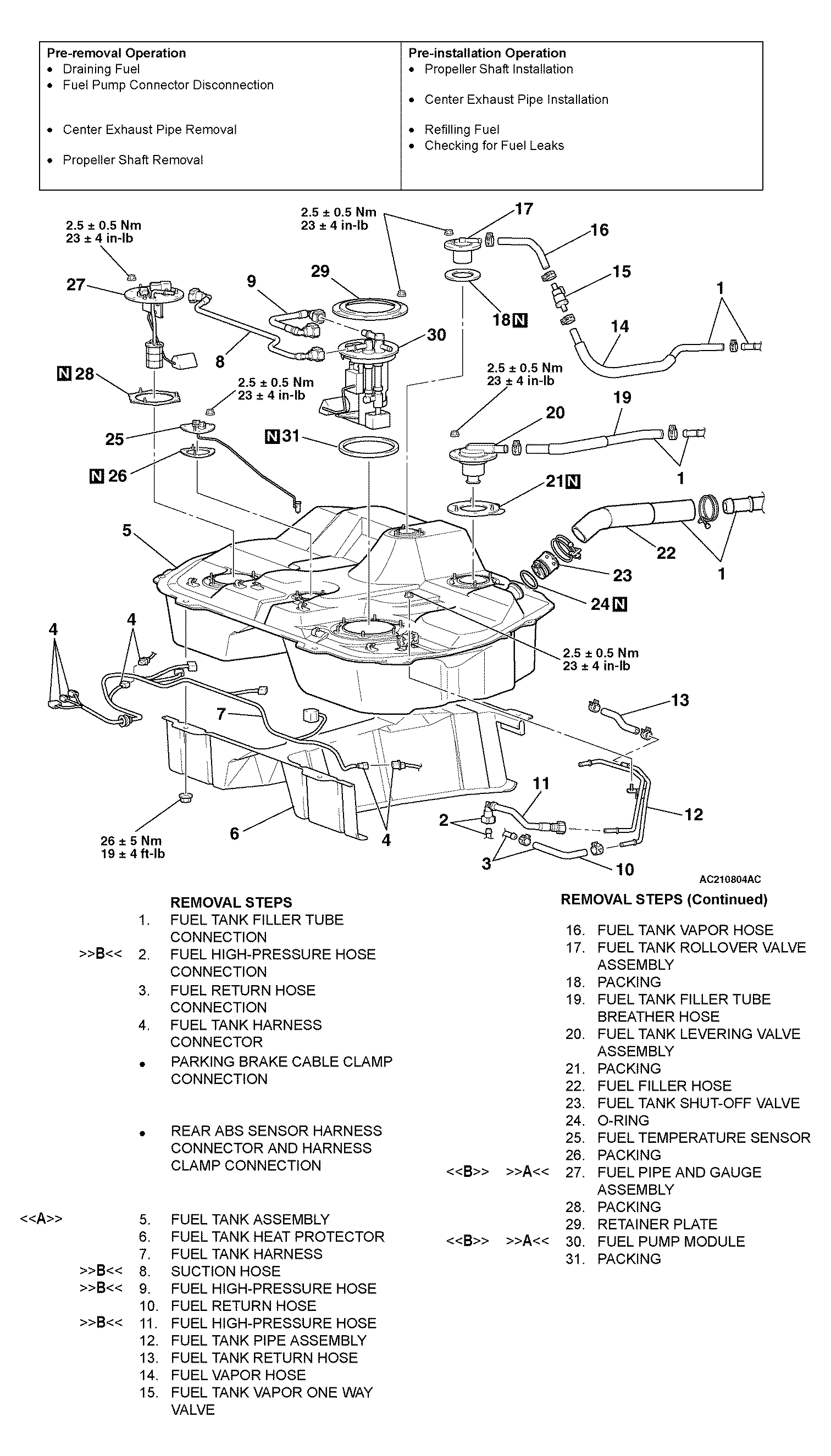

Fig 1: Removing/Installing Fuel Tank (1 Of 2)
G04295967Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
