Removal And Installation: Notes

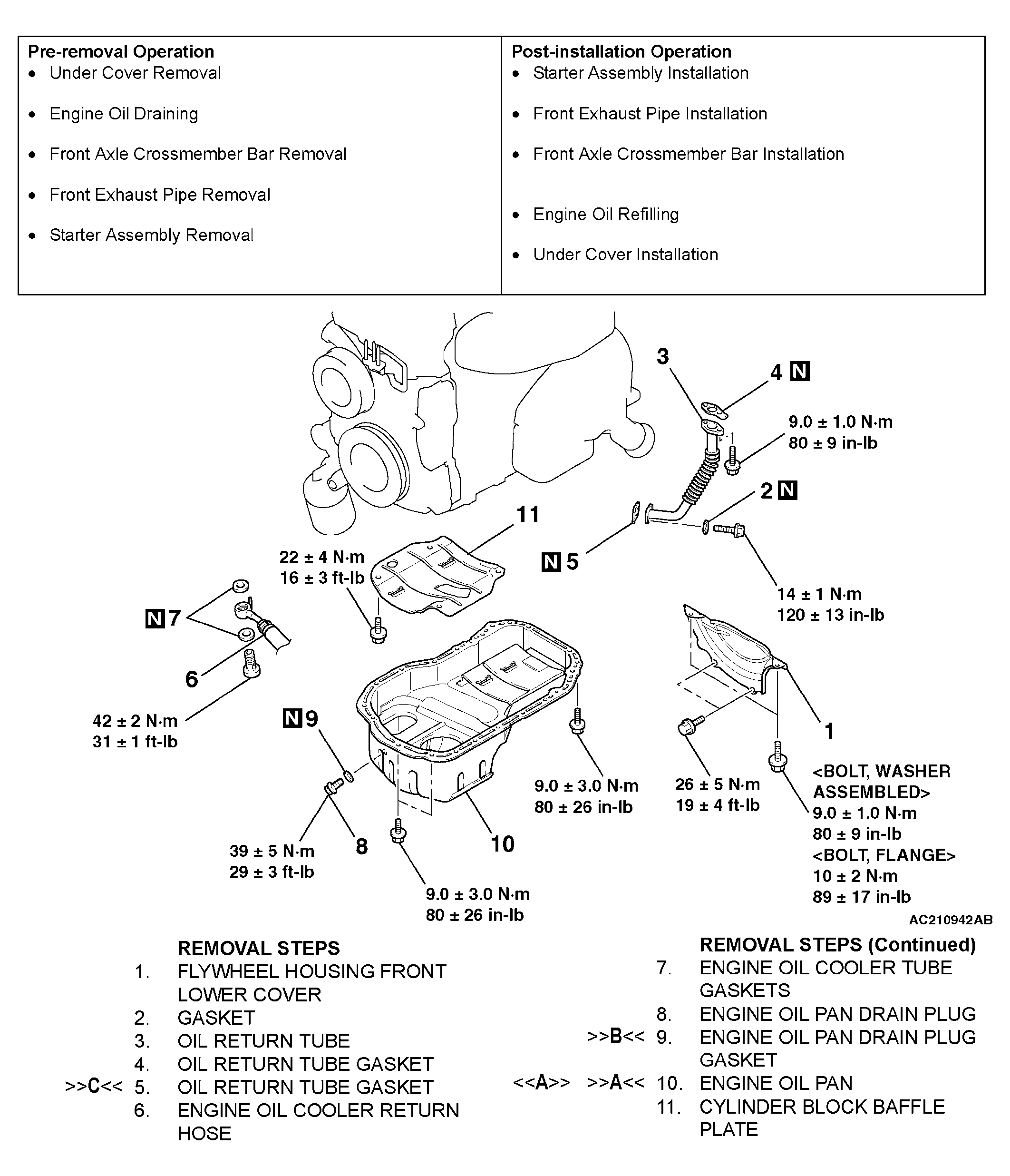

Fig 1: Removing And Installing Of Oil Pan
G04294020Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
