Removal And Installation: Notes

CAUTION: Never overhaul the V.V.T. sprocket.

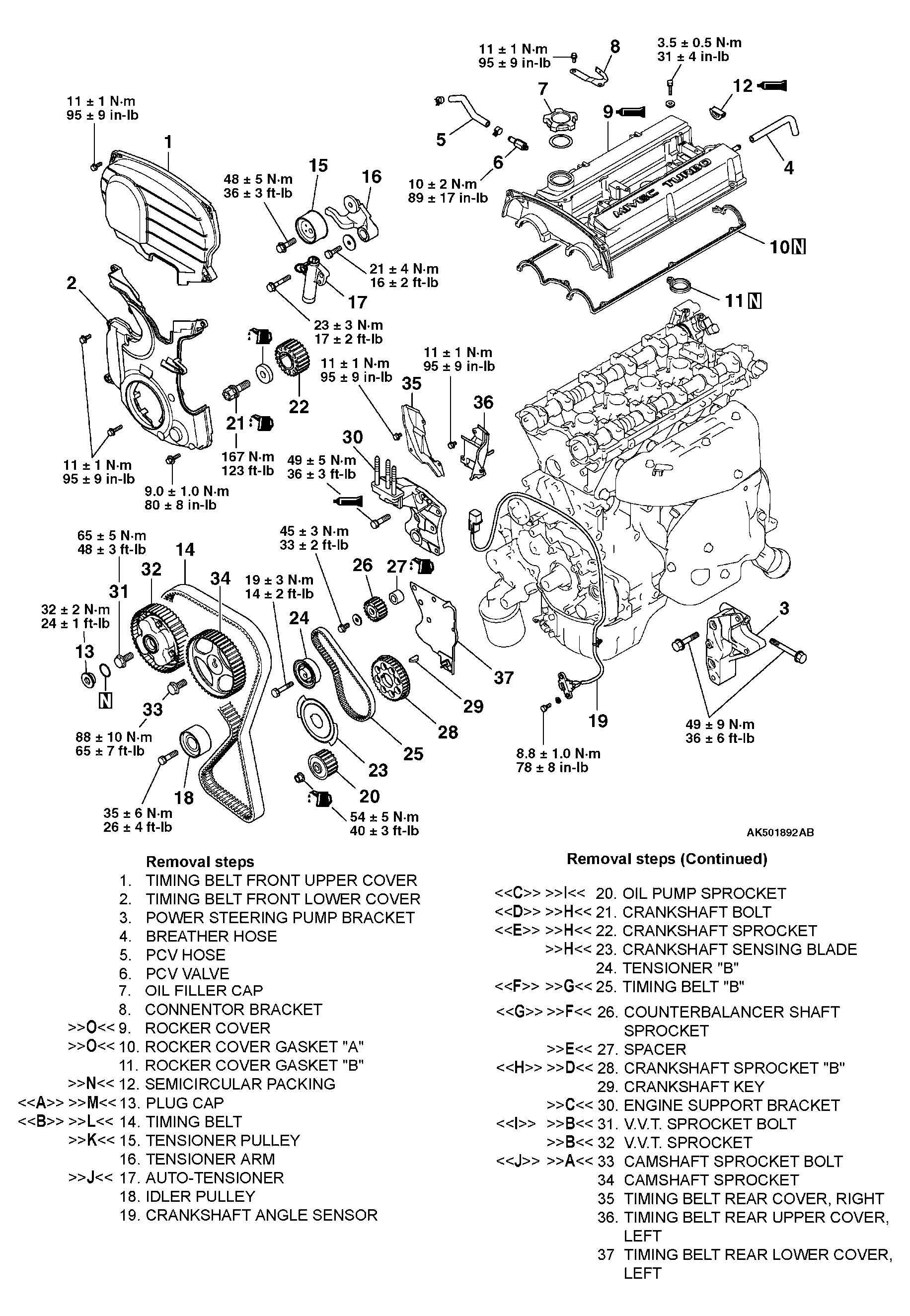

Fig 1: Removing/Installing Timing Belt Components
G04294107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
