Auto-Cruise Control Switch Check
WARNING: This page is about a different variant/trim than selected.
- Remove the auto-cruise control switch (Refer to AUTO-CRUISE CONTROL ).

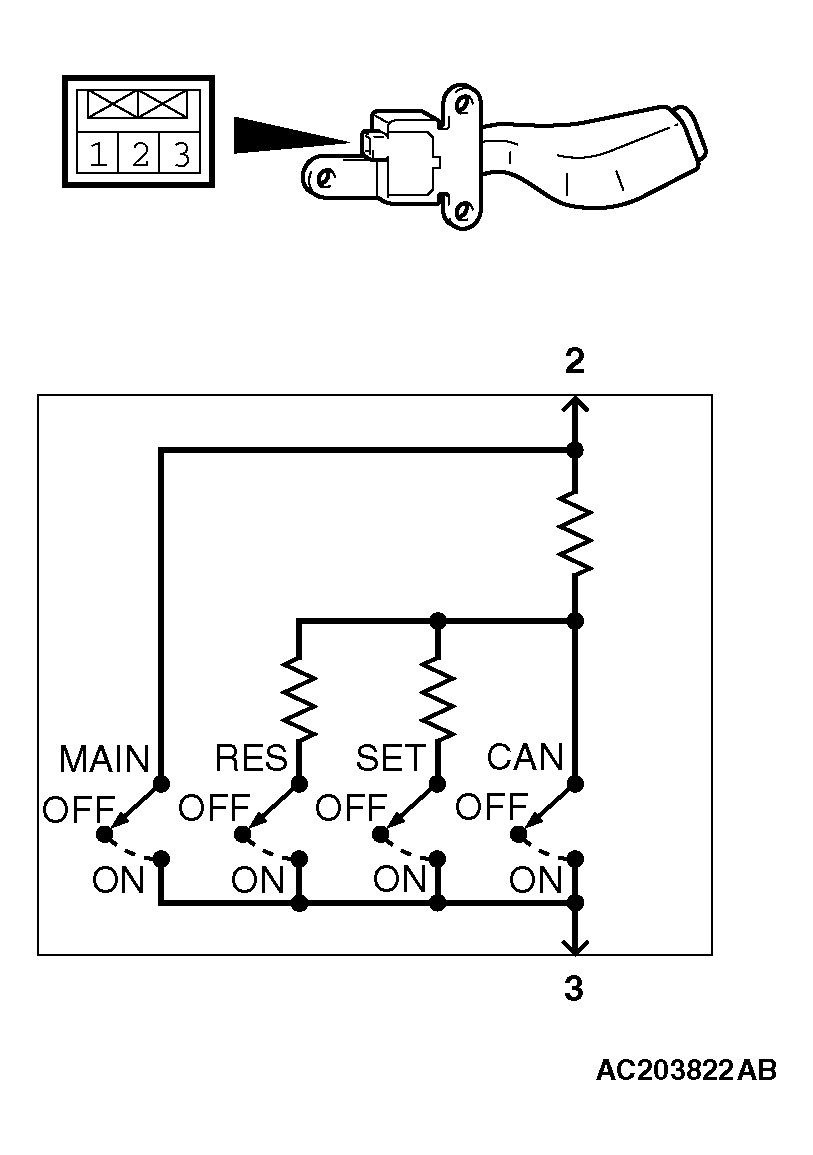

- Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
AUTO-CRUISE CONTROL SWITCH POSITION
| SWITCH POSITION | SPECIFIED CONDITION |
|---|---|
| "CRUISE" (MAIN) switch "OFF" | Open circuit |
| "CRUISE" (MAIN) switch "ON" | Less than 2 ohms |
| "CANCEL" switch ON | Approximately 100 Ω |
| "ACC/RES" switch ON | Approximately 887 Ω |
| "COAST/SET" switch ON | Approximately 300 Ω |
