General Circuit Diagram For The Keyless Entry System
WARNING:
This page is about a different variant/trim than selected.

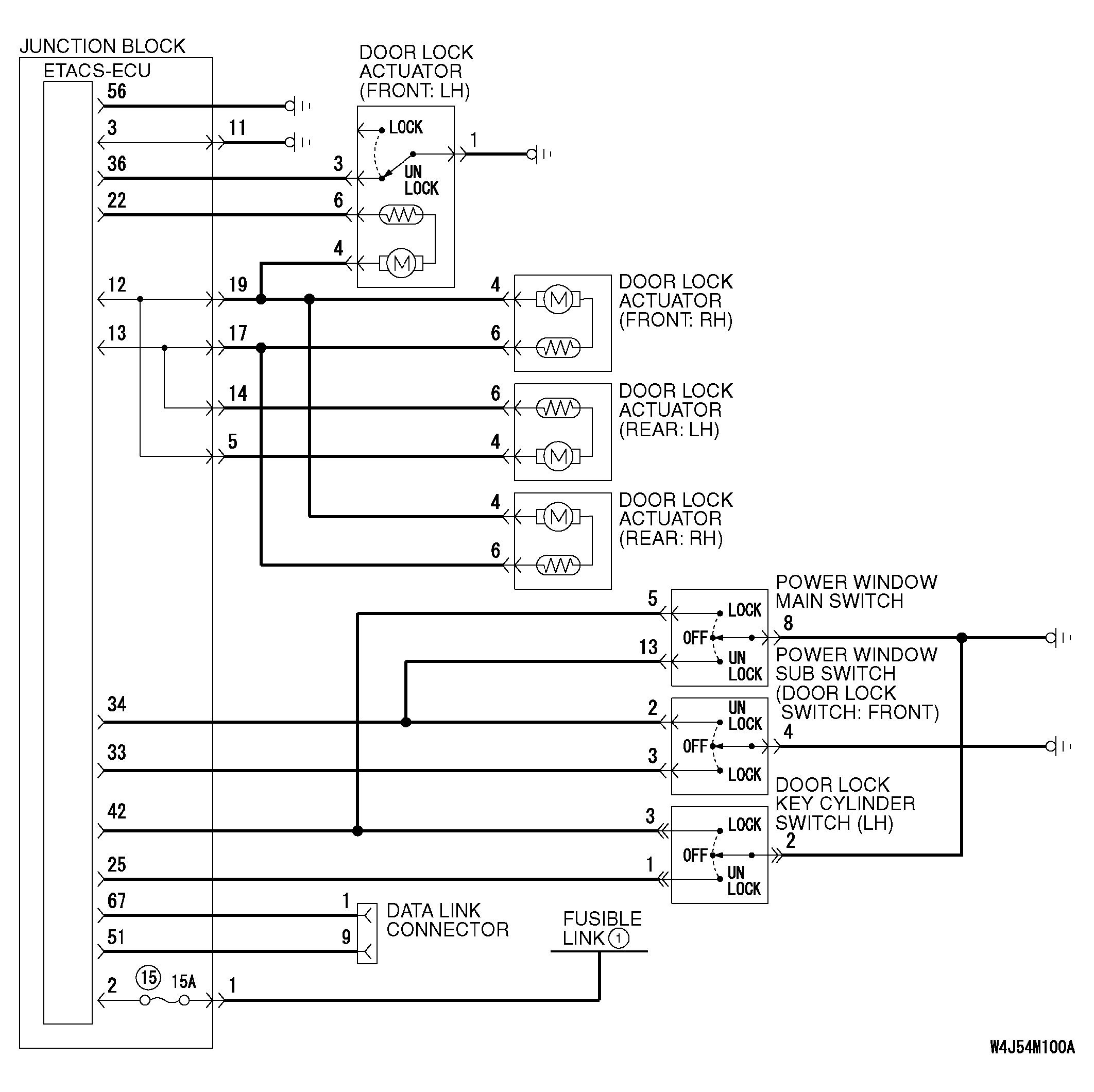

Fig 1: General Circuit Diagram For Keyless Entry System (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

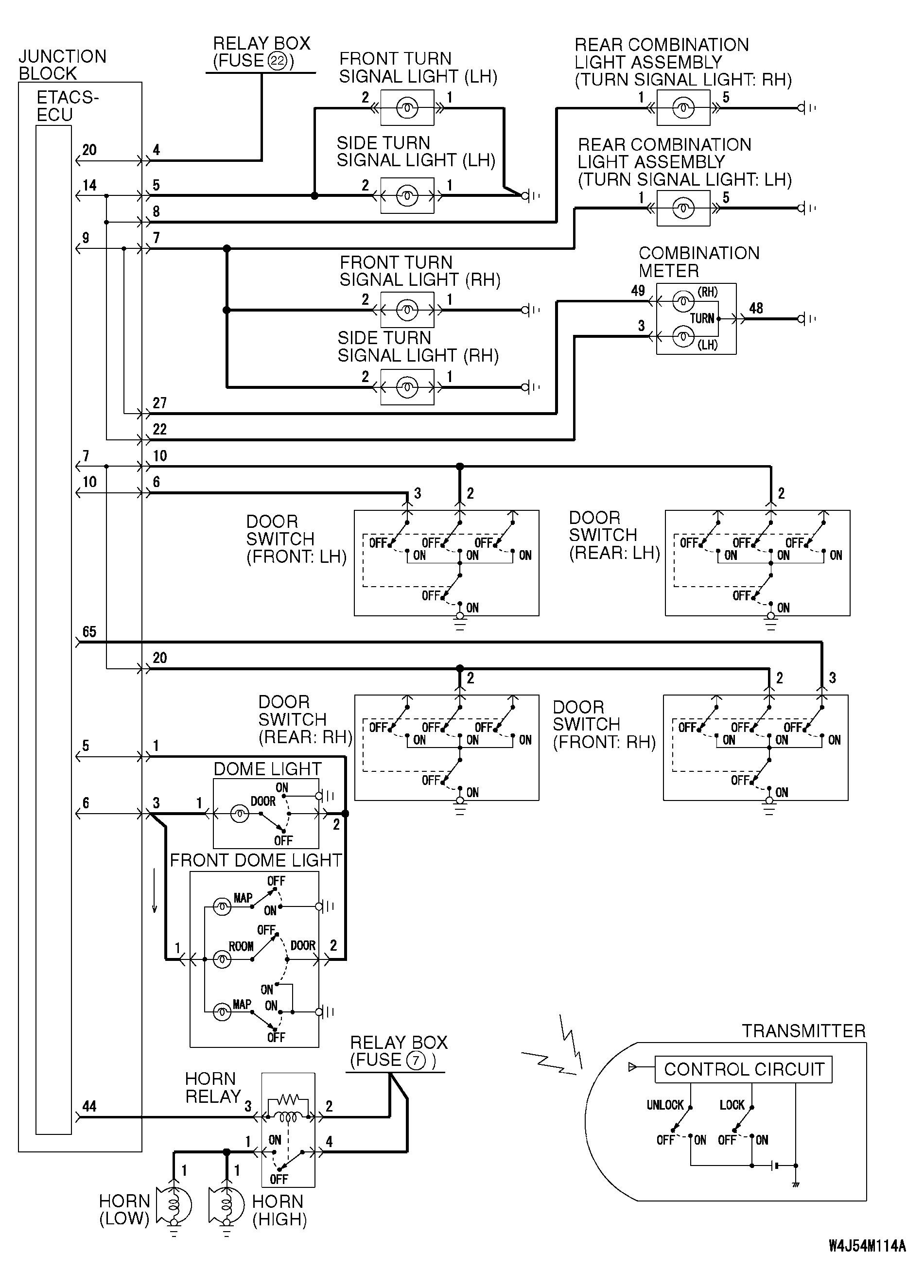

Fig 2: General Circuit Diagram For Keyless Entry System (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
