General Circuit Diagram For The Power Windows

WARNING: This page is about a different variant/trim than selected.

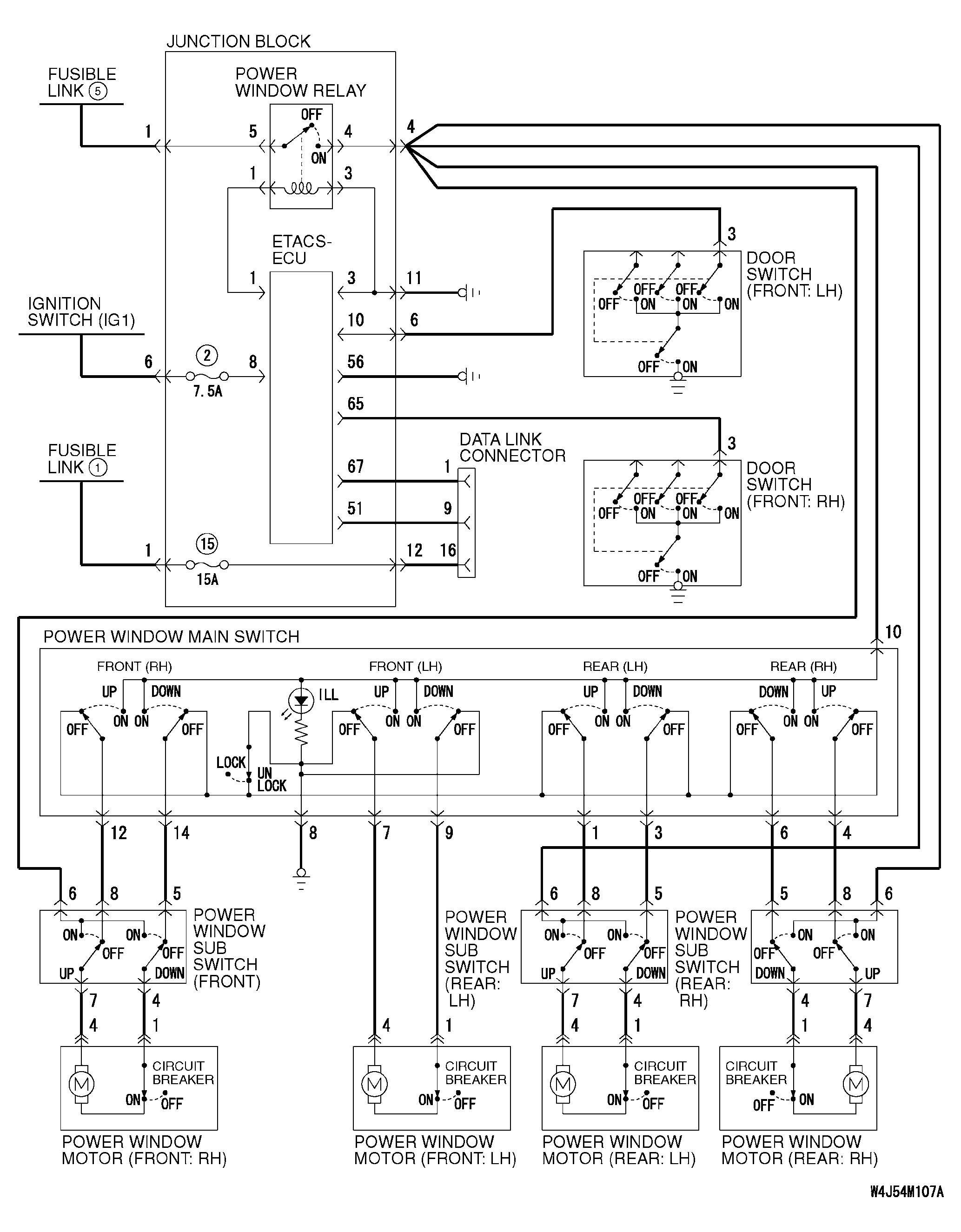

Fig 1: General Circuit Diagram For Power Windows
G04279214Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
