Removal And Installation

WARNING: This page is about a different variant/trim than selected.

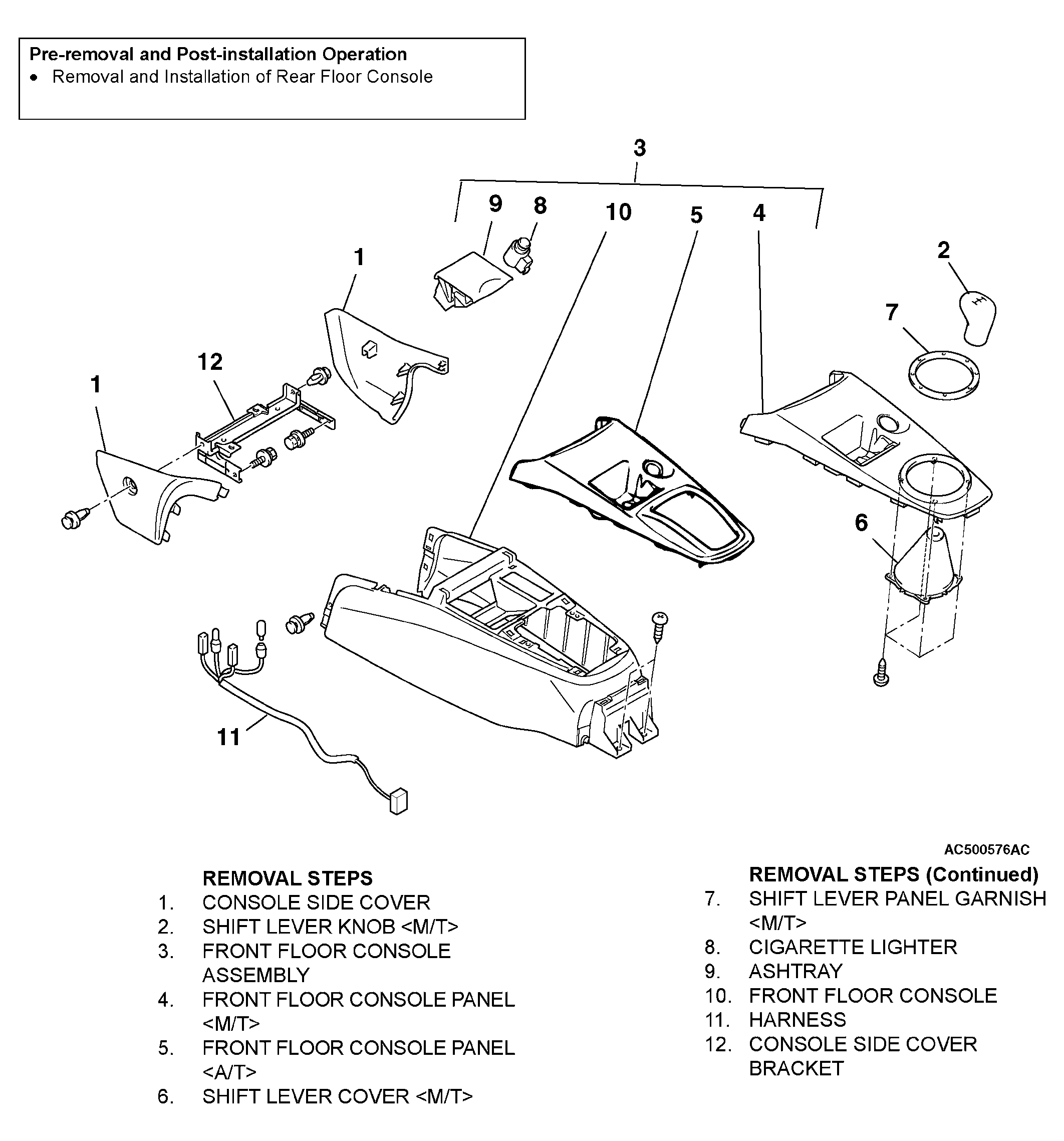

Fig 1: Removing View Of Front Floor Console Assembly
G04278099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
