Data List Reference Table

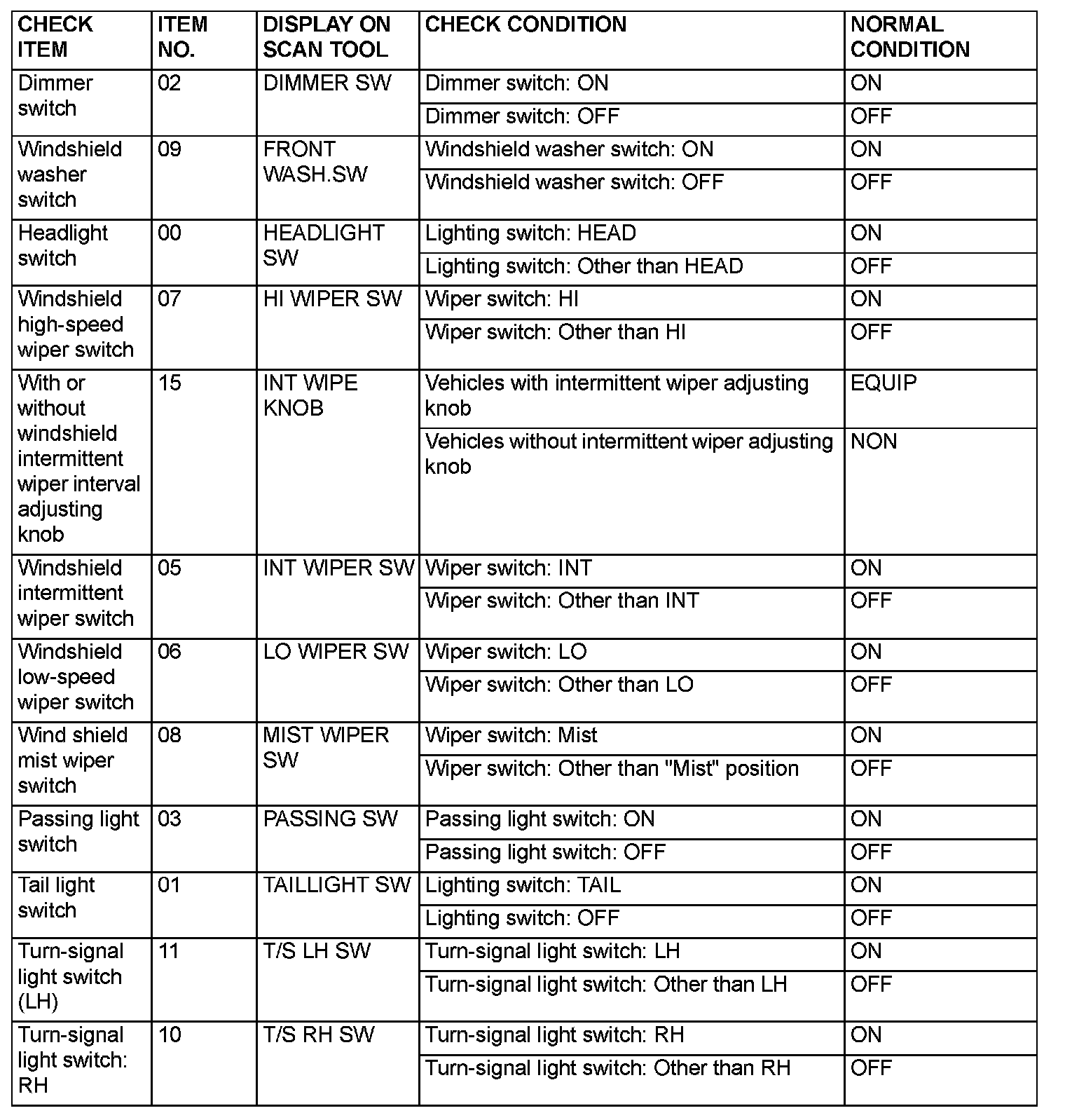

Data List Reference table - Column ECU:

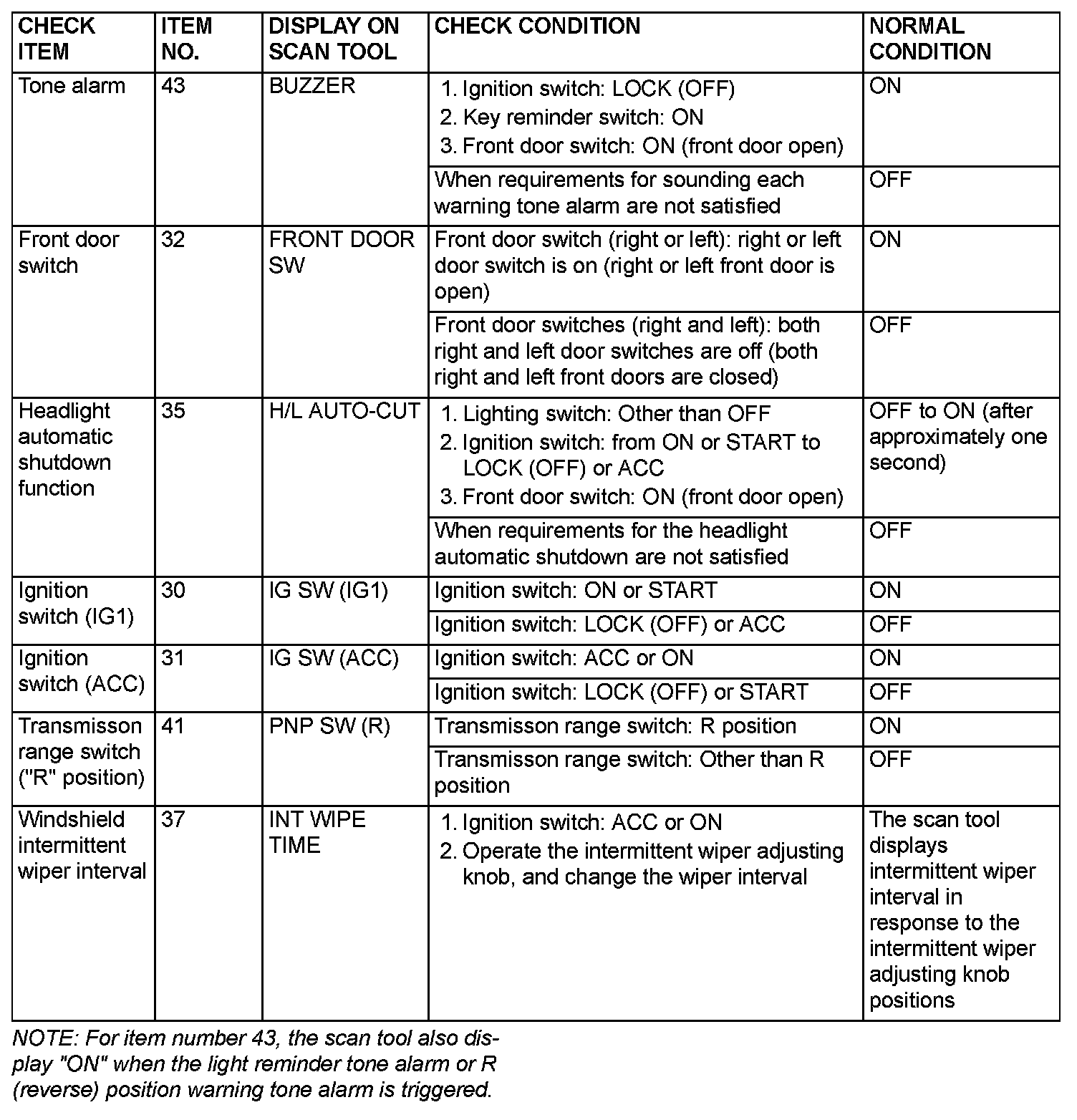

Data List Reference table - ETACS ECU:

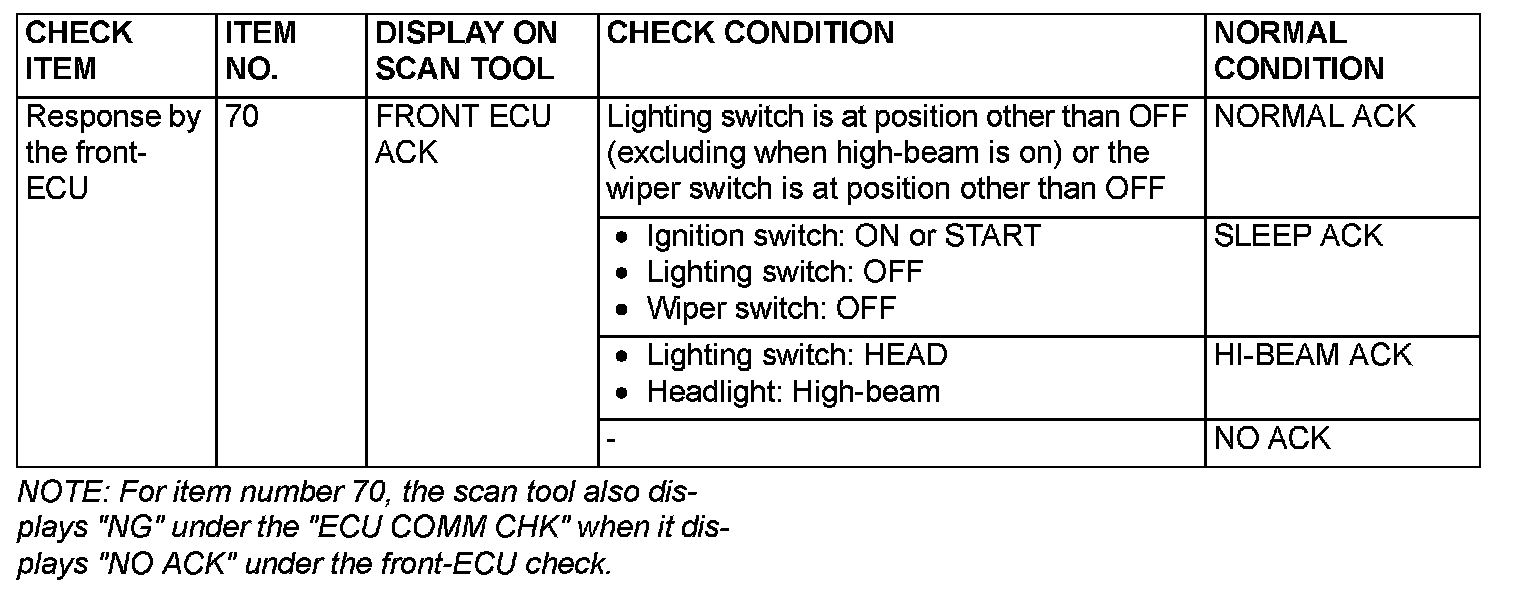

Data List Reference table - Front ECU:
