Function Diagnosis
The table shows the service data and their normal condition, which are displayed during the "FUNCTION DIAG." The row "Normal conditions" shows values, which are shown when each operation is made.

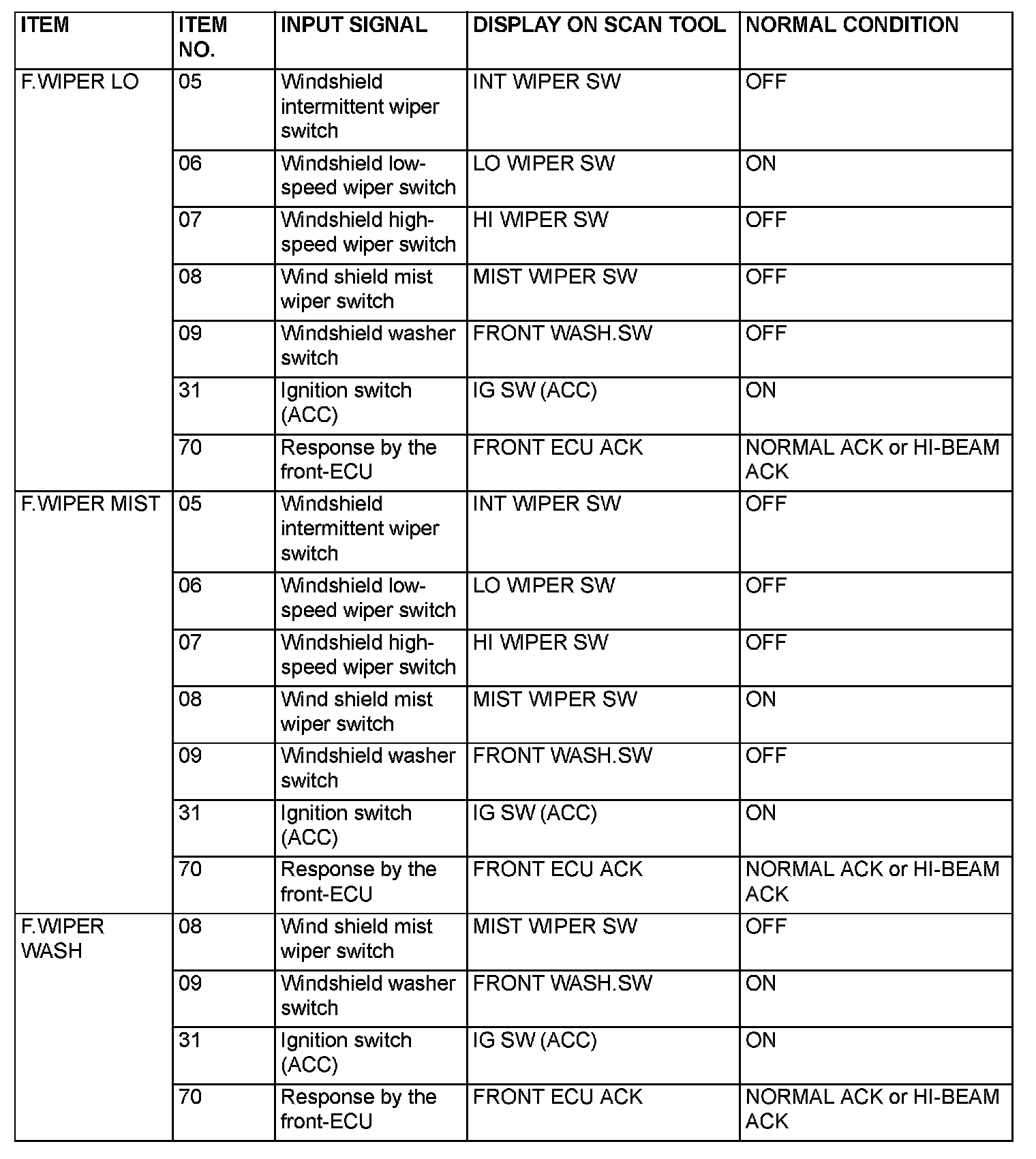

Wiper Part 1:

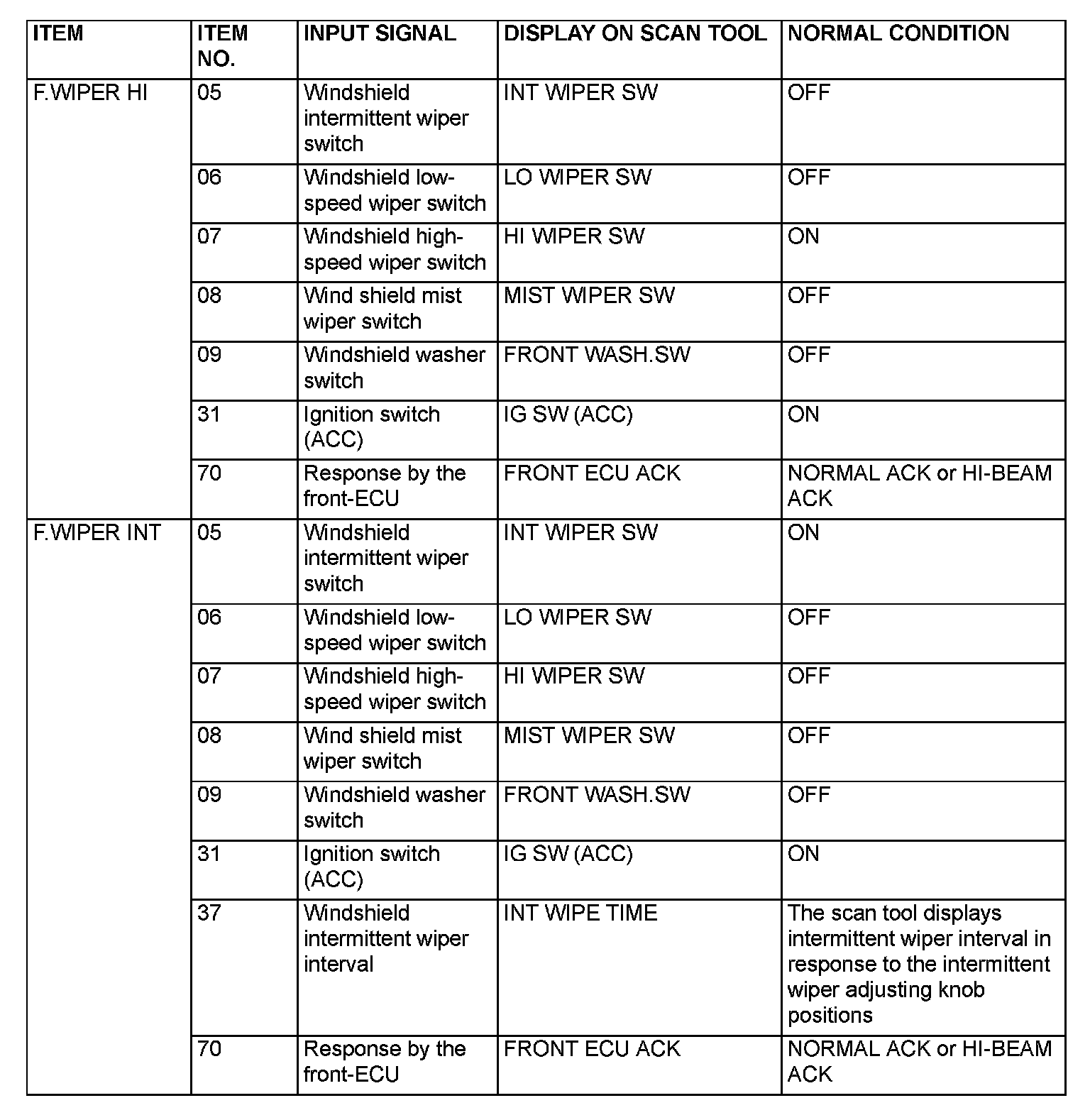

Wiper Part 2:
WIPER

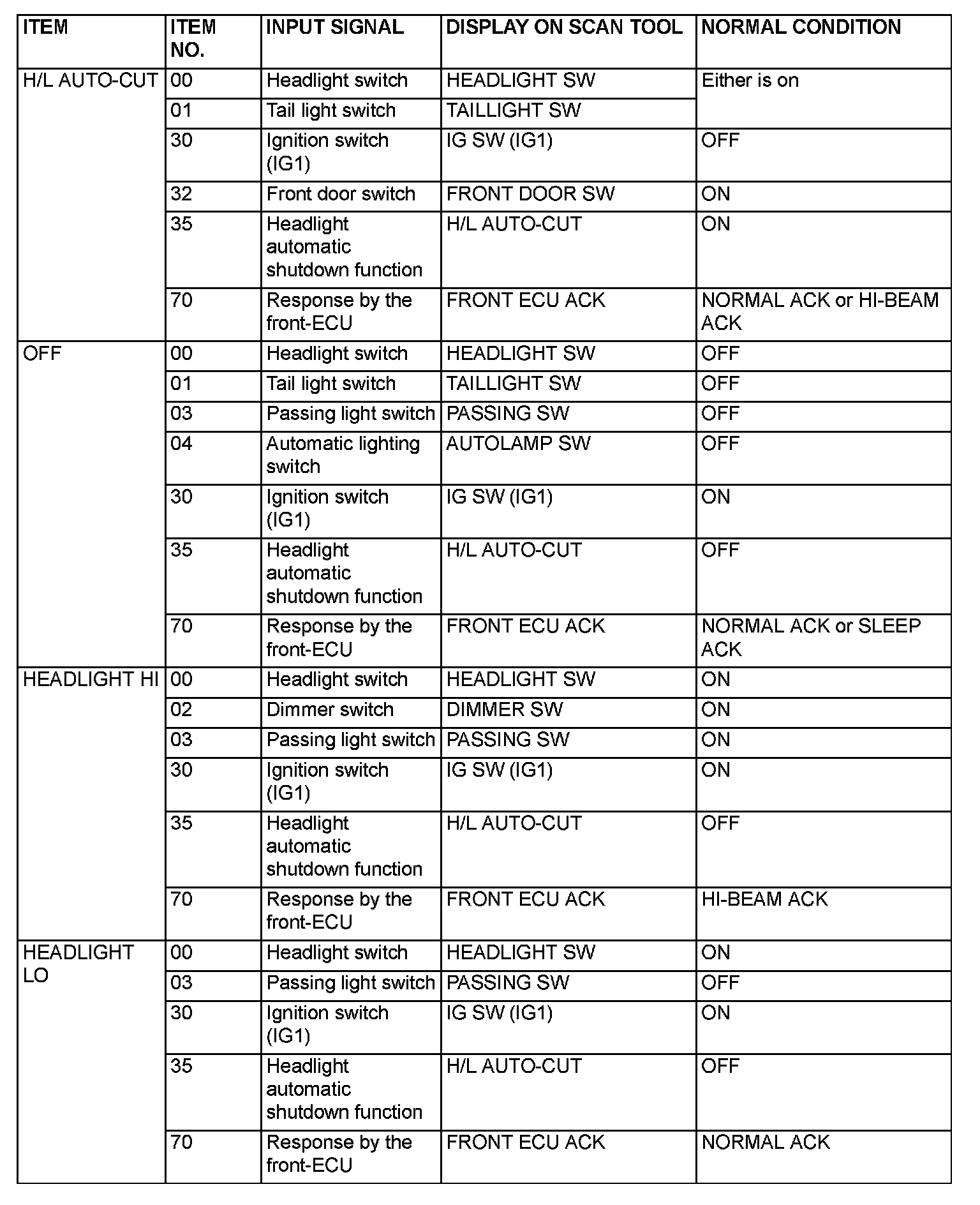

Lighting Part 1:

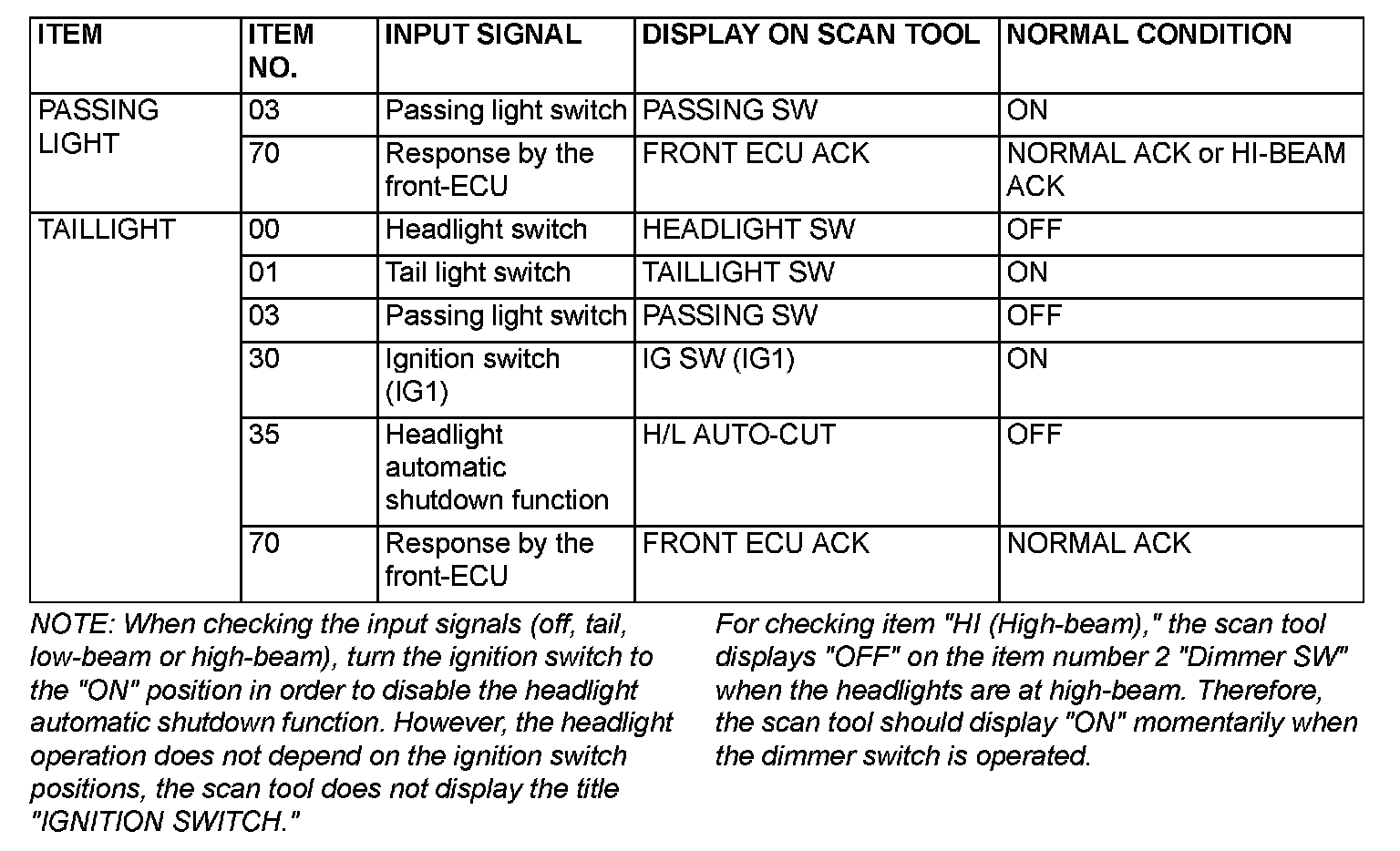

Lighting Part 2:
LIGHTING
Turn Signal:
TURN SIGNAL

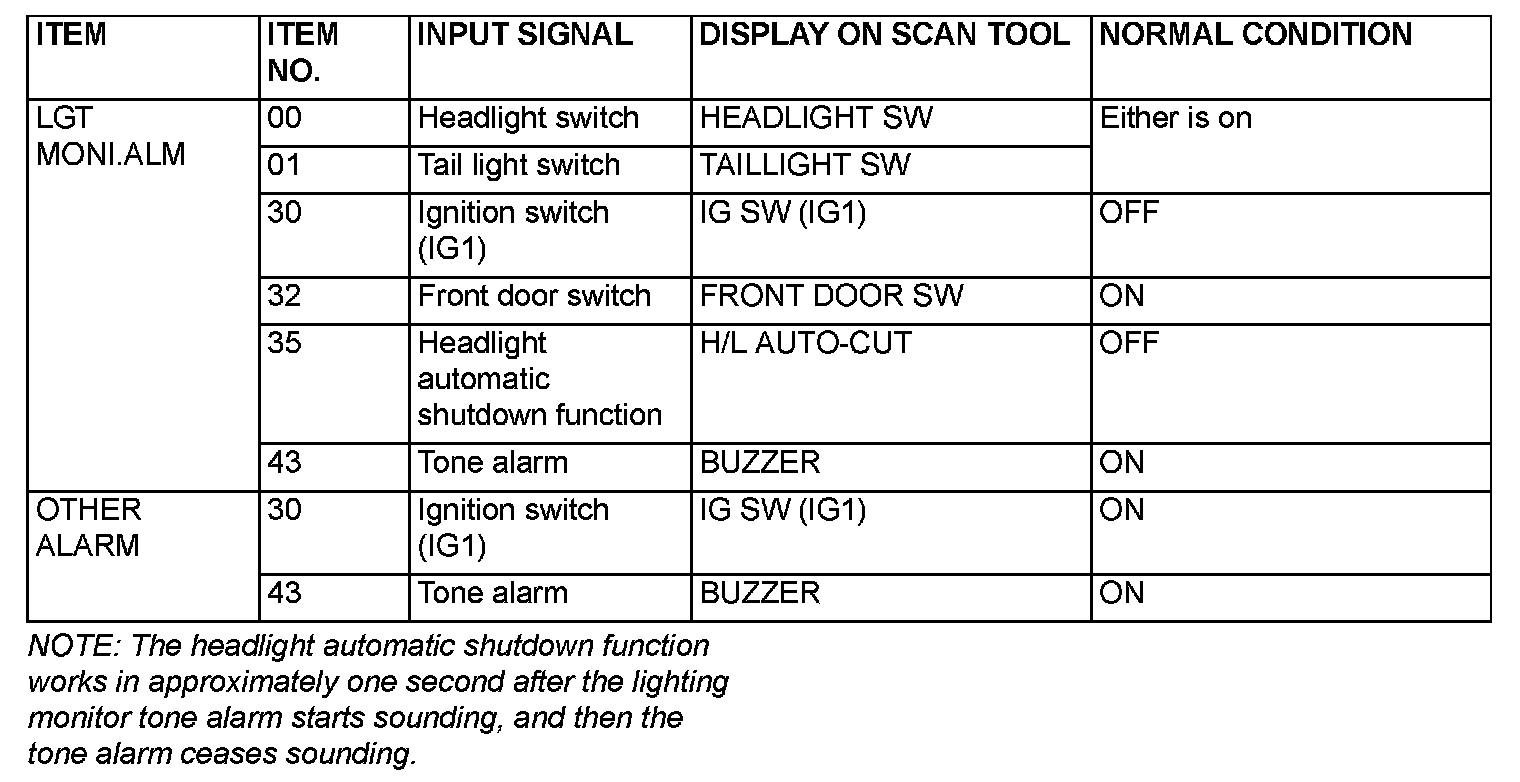

Buzzer Part 1:
Buzzer Part 2:
BUZZER
