Removal And Installation: Notes

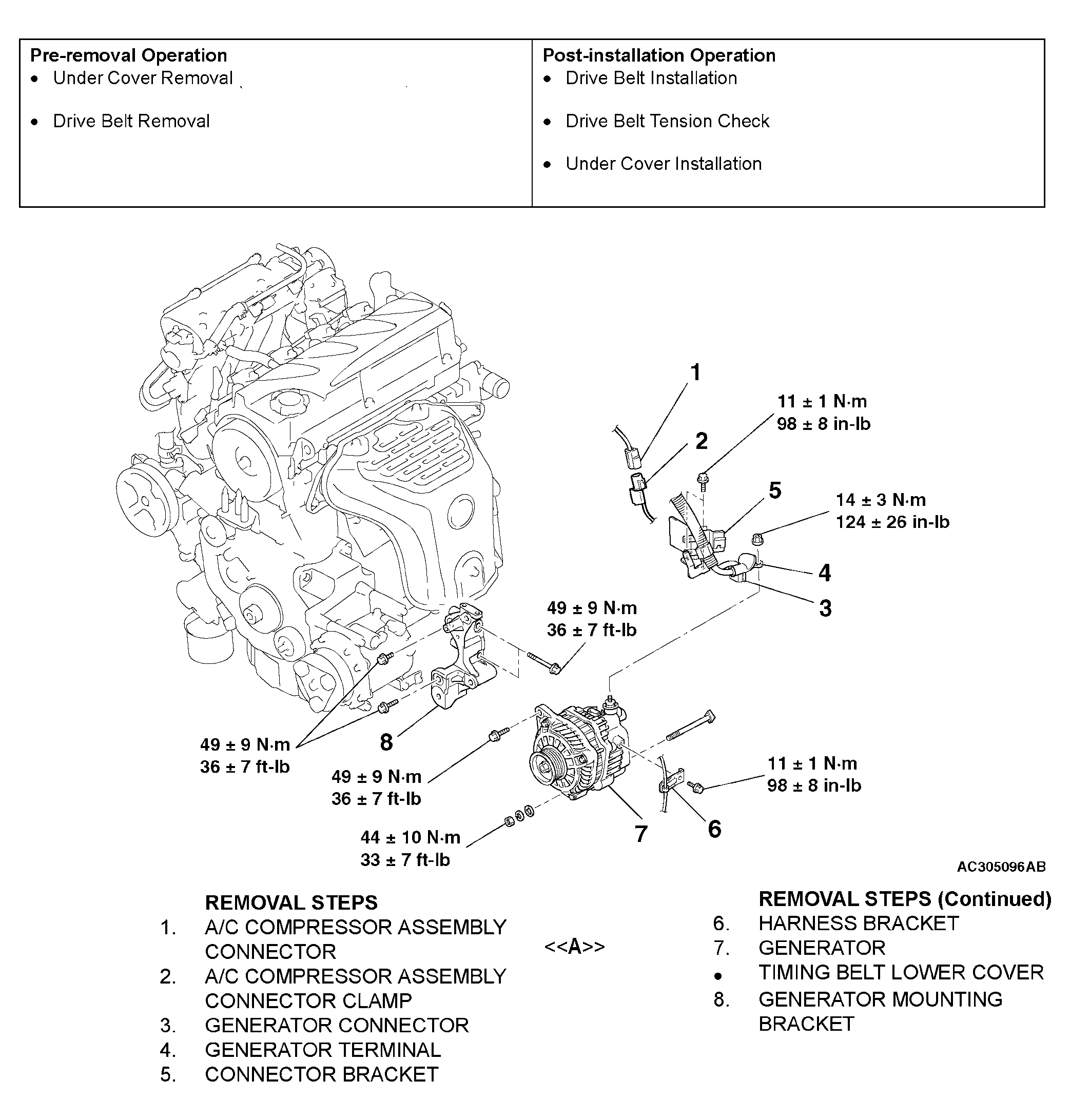

Fig 1: Removal And Installation Of Generator Assembly With Torque Specifications
G04302056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
