4.7L Engine

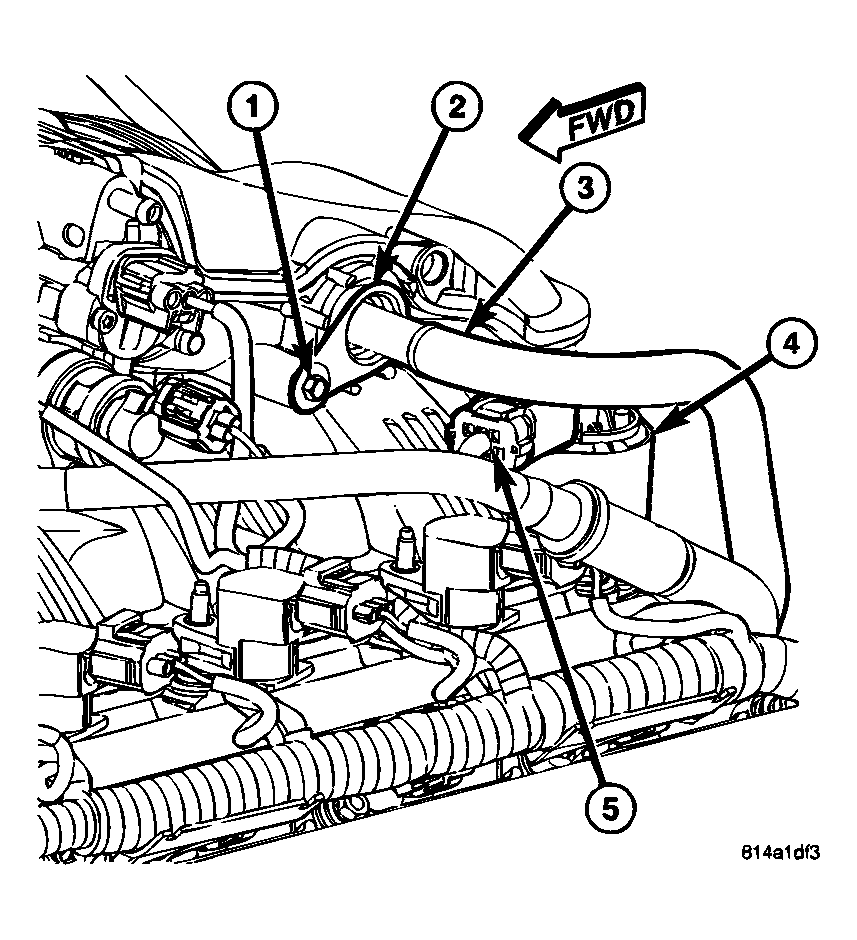

Fig 1: Identifying Electronic EGR Valve And Solenoid Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Clean area at rear of left cylinder head where it joins base of EGR valve.
Clean EGR tube where it joins EGR valve.
Position new gasket between EGR valve and cylinder head.
Position EGR valve to cylinder head. Install and tighten two bolts (5). Torque to 9 N.m (80 in lbs.).
Position new gasket between EGR tube flange and EGR valve assembly.
Position EGR tube (1) to side of EGR valve and into intake manifold. Install two bolts (4) finger tight (temporarily).

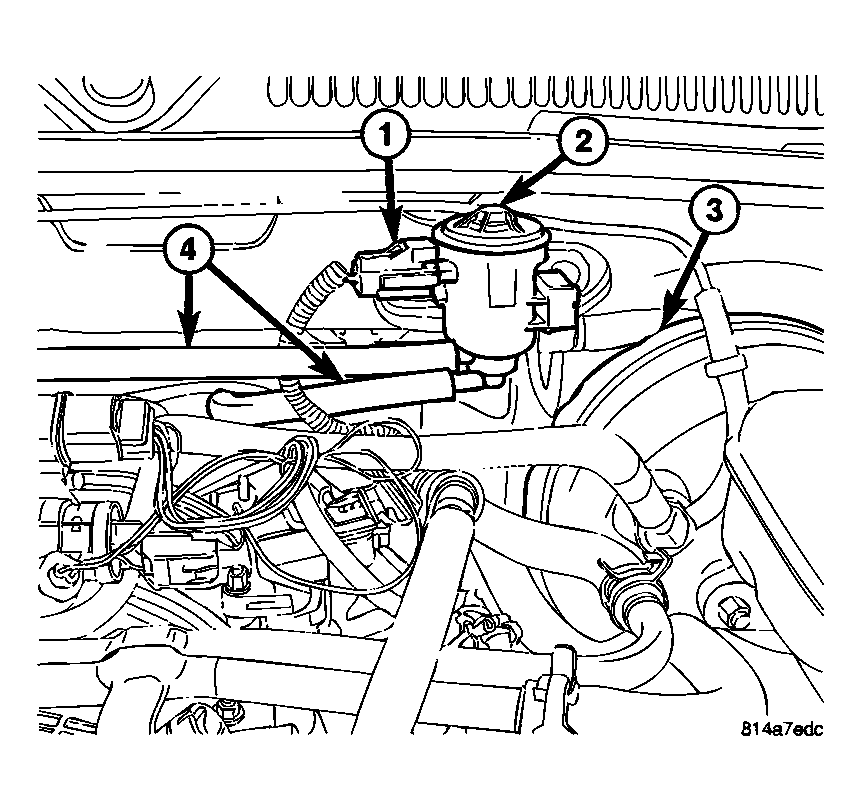

Fig 2: Identifying Electronic EGR Valve And Solenoid Assembly Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install EGR tube flange bolt (1) at intake manifold. Torque to 11 N.m (8.5 ft. lbs.).
Connect electrical connector (5) to top of EGR valve solenoid (4).

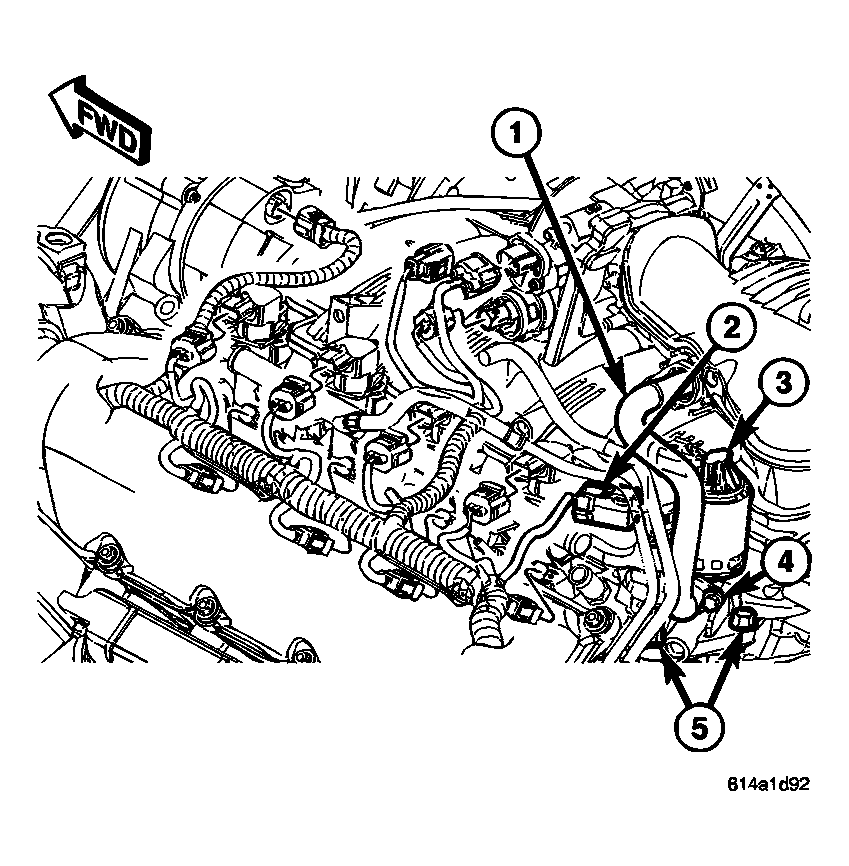

Fig 3: Identifying Electronic EGR Valve And Solenoid Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Do a final tightening of two EGR tube bolts (4). Torque to 11 N.m (8.5 ft. lbs.).

Fig 4: Installing EVAP Solenoid
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install EVAP solenoid (2). Refer to SOLENOID - EVAP/PURGE .
