Switch - Power Window: Installation

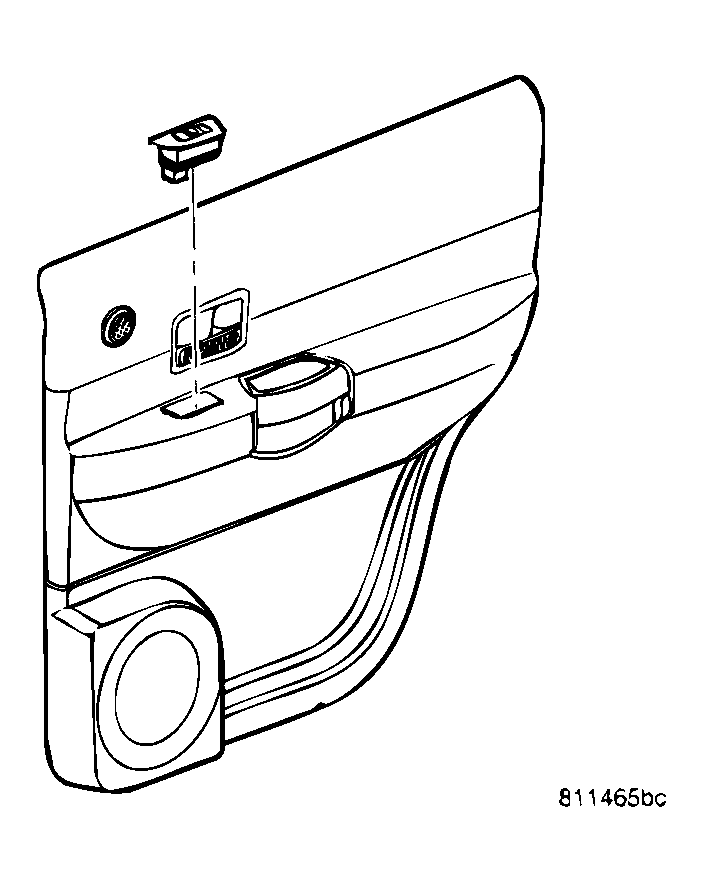

Fig 1: Installing Switch To Door Trim Panel

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The driver and front passenger side power window switch is included in the window/lock switch  . (Refer to INSTALLATION ).

1. Install the switch to the door trim panel.
2. Install the door trim panel (Refer to INSTALLATION ).
3. Connect the battery negative cable.
