Data List Reference Table


The table shows the service data and their normal condition, which are displayed during the "Data List."

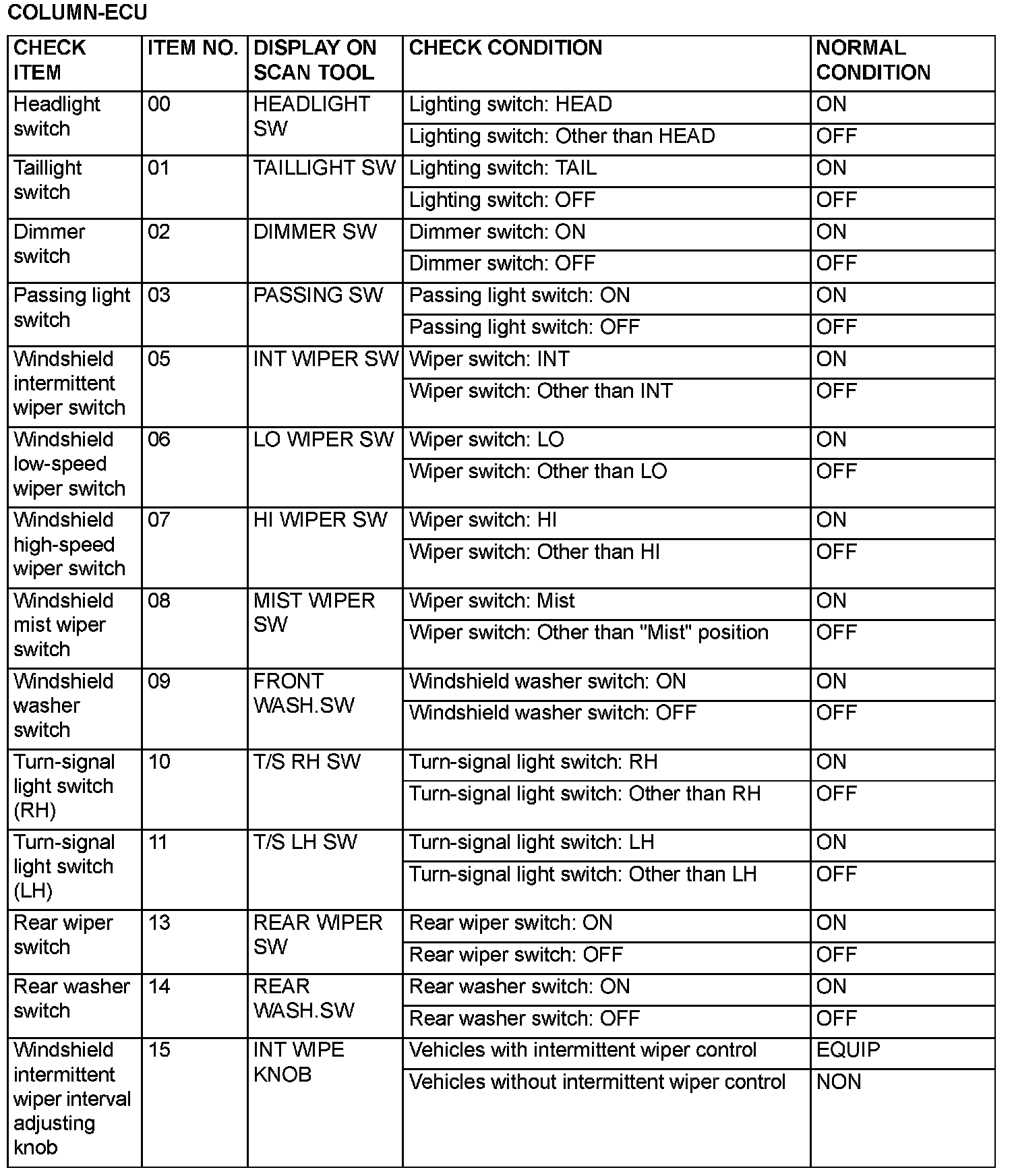

Column-ECU:




COLUMN-ECU

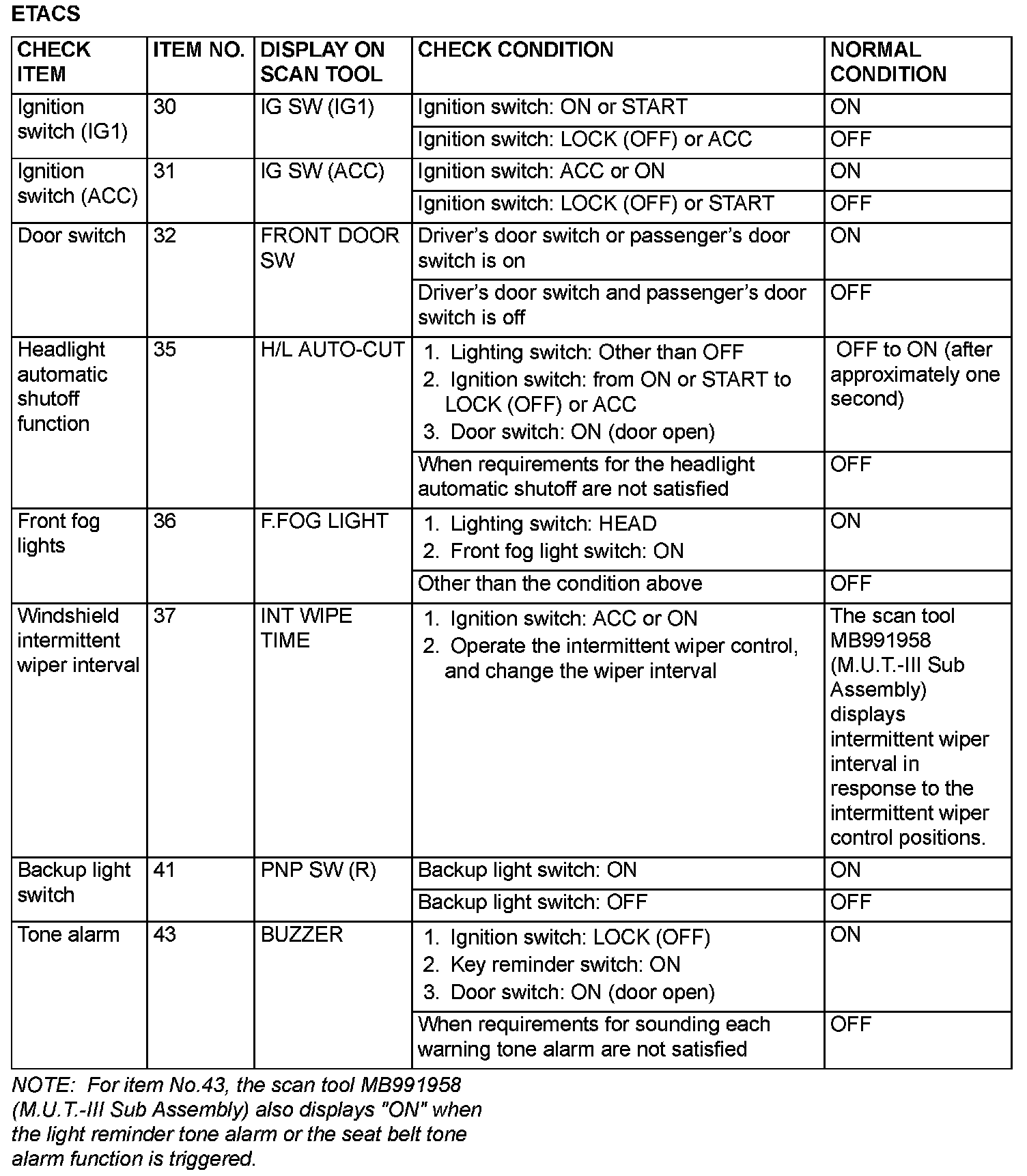

ETACS:




ETACS

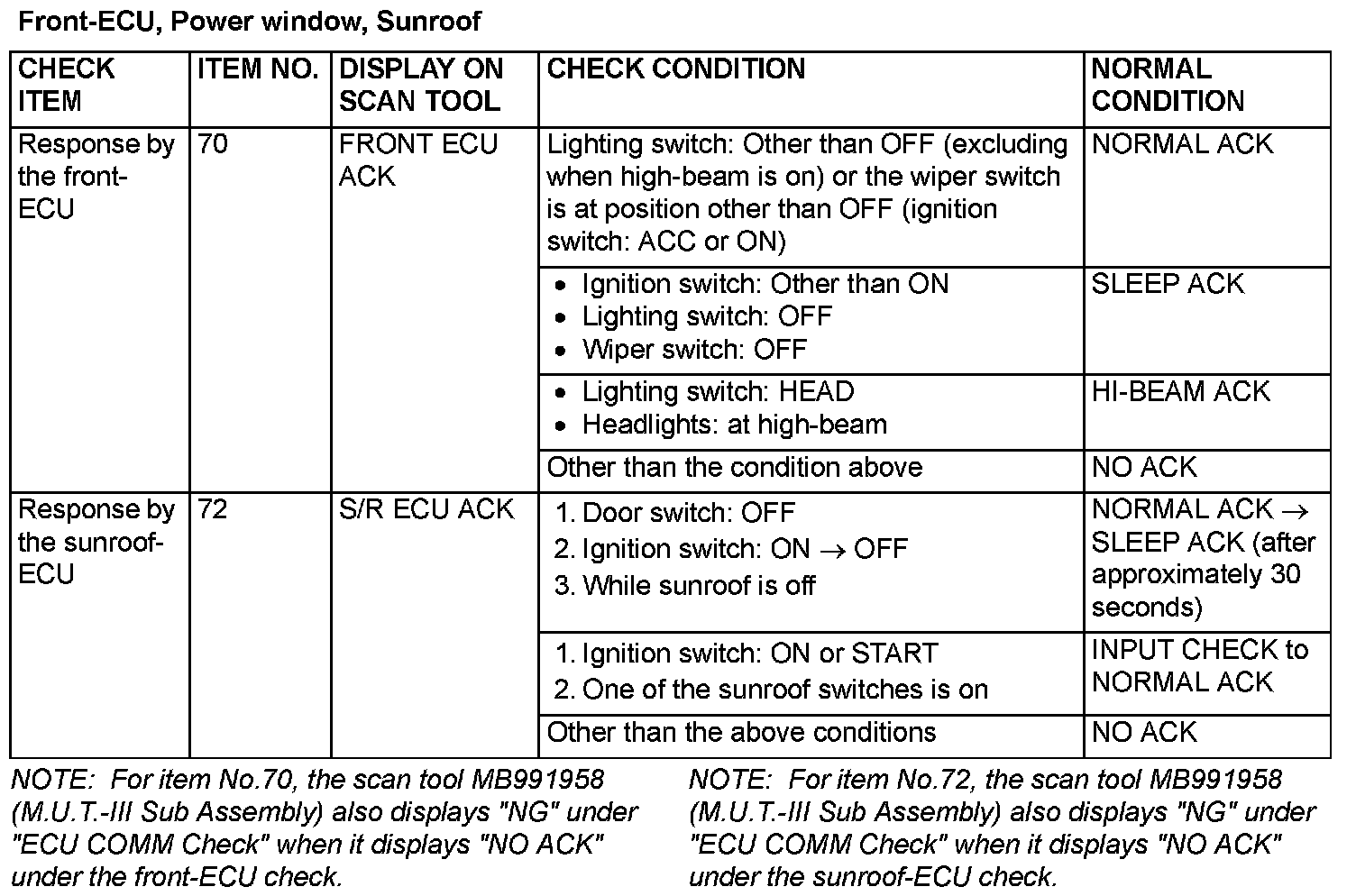

Front-ECU, Power Window, Sunroof:




FRONT-ECU, POWER WINDOW, SUNROOF
