Powertrain Management: Locations

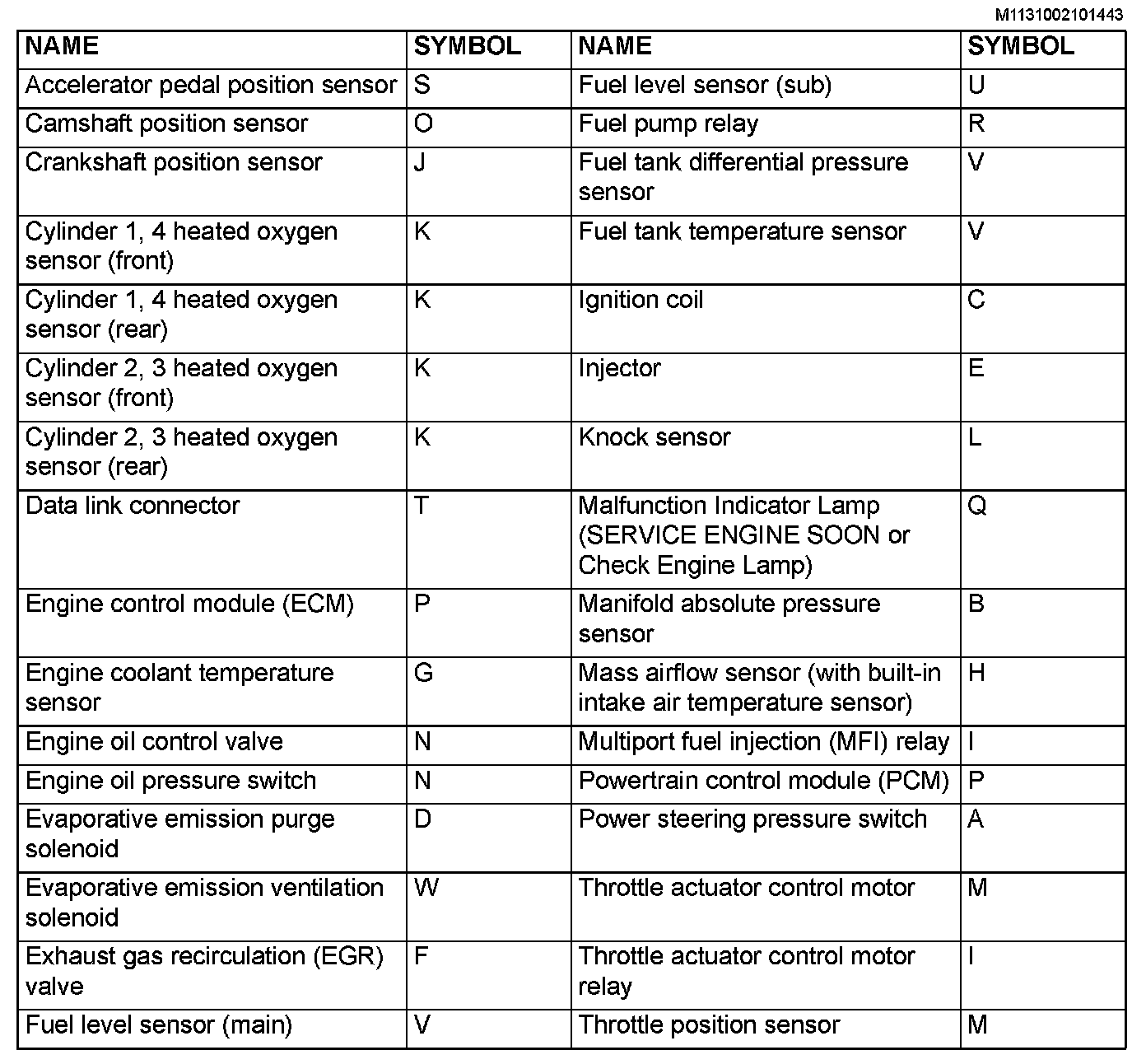

Component Location:

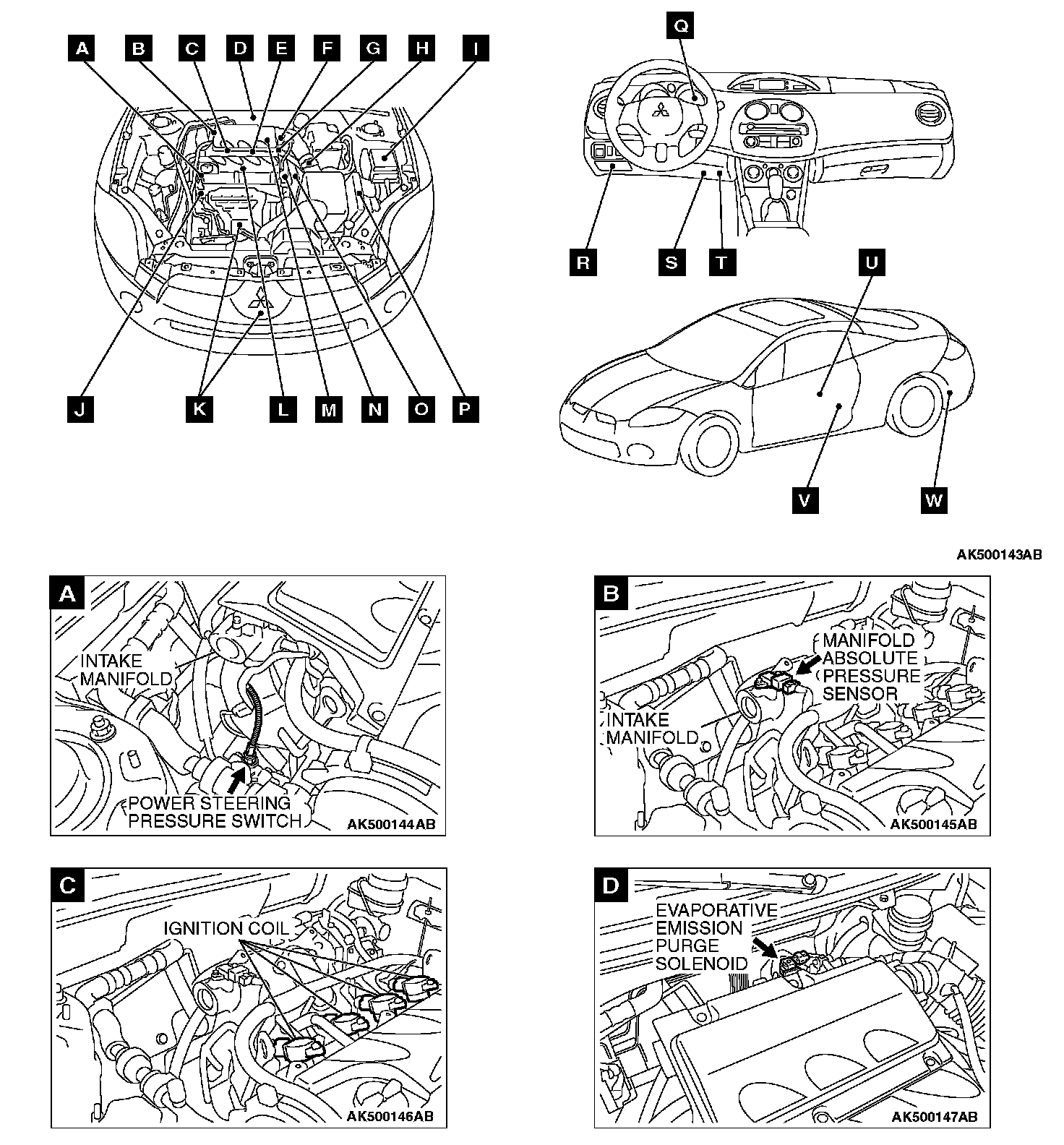

Overall View:

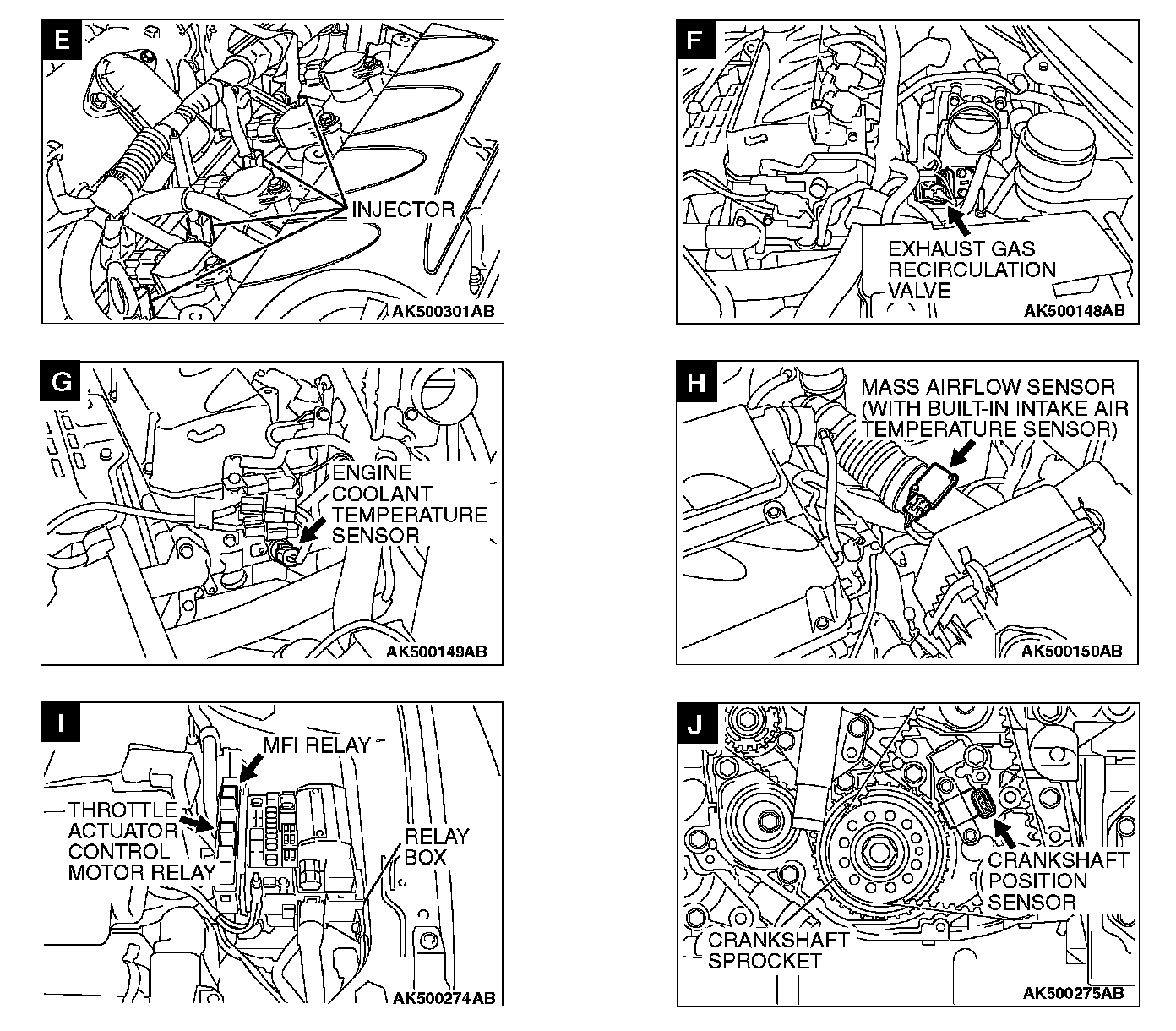

View E-J:

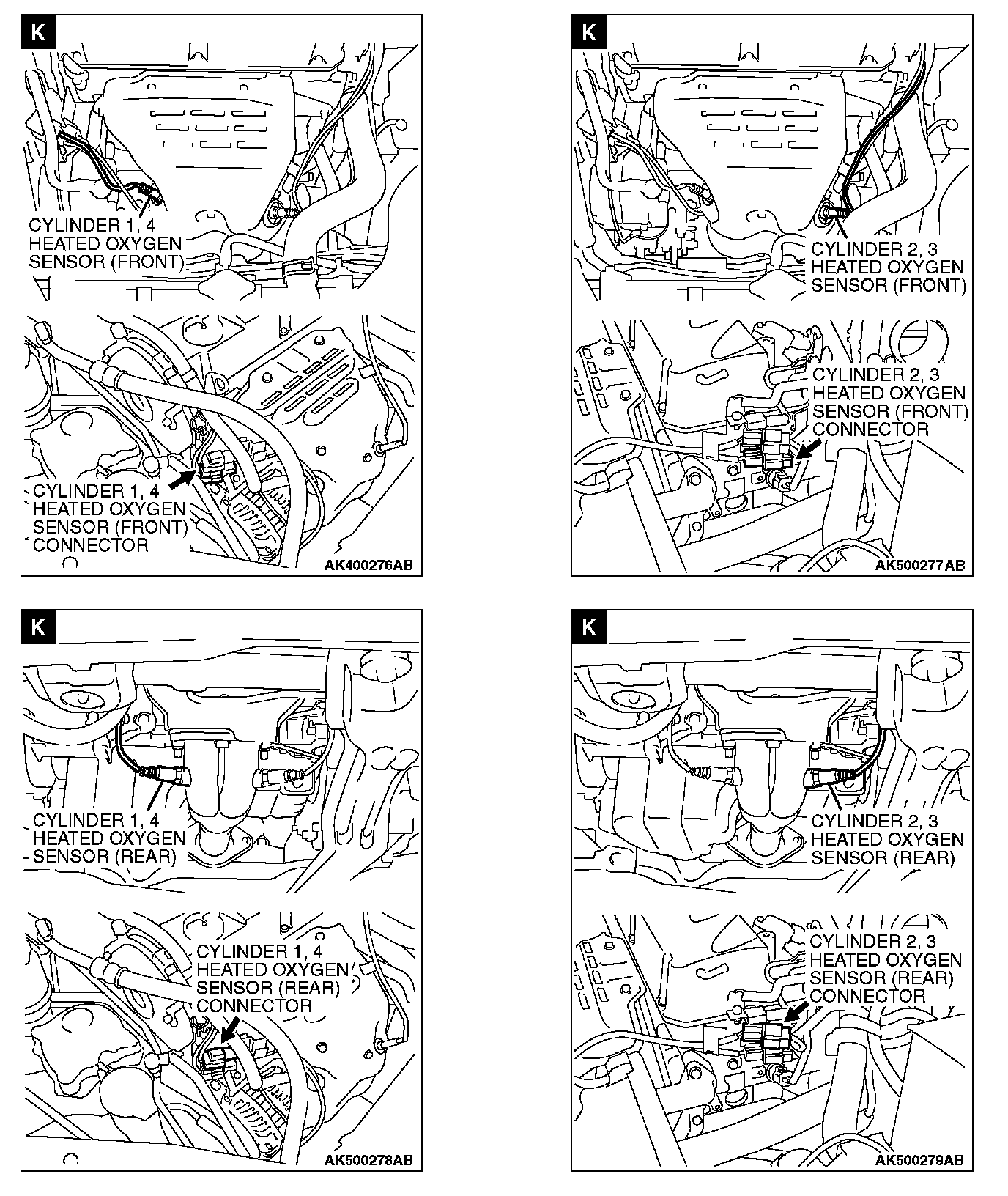

View K:

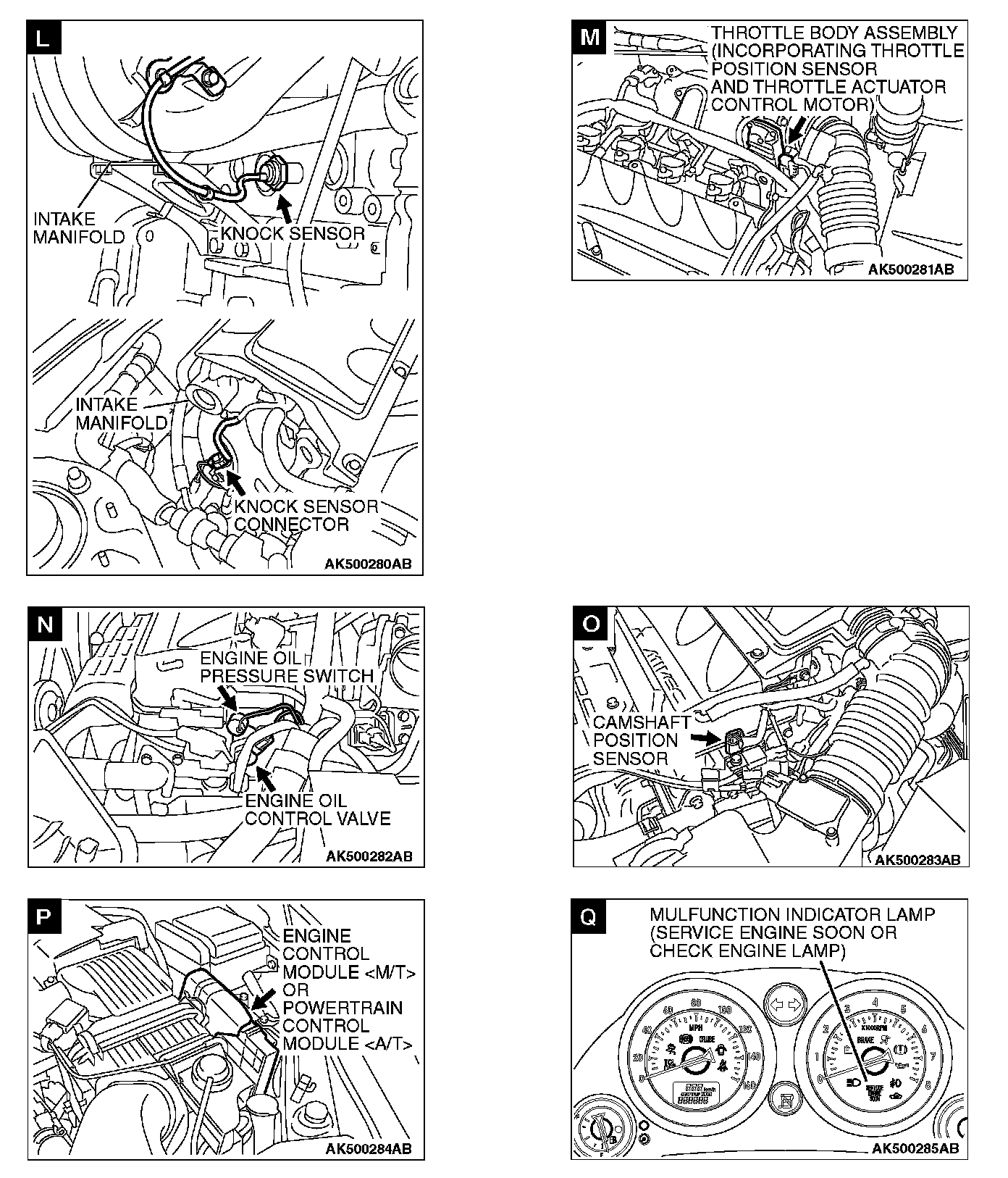

View L-Q:

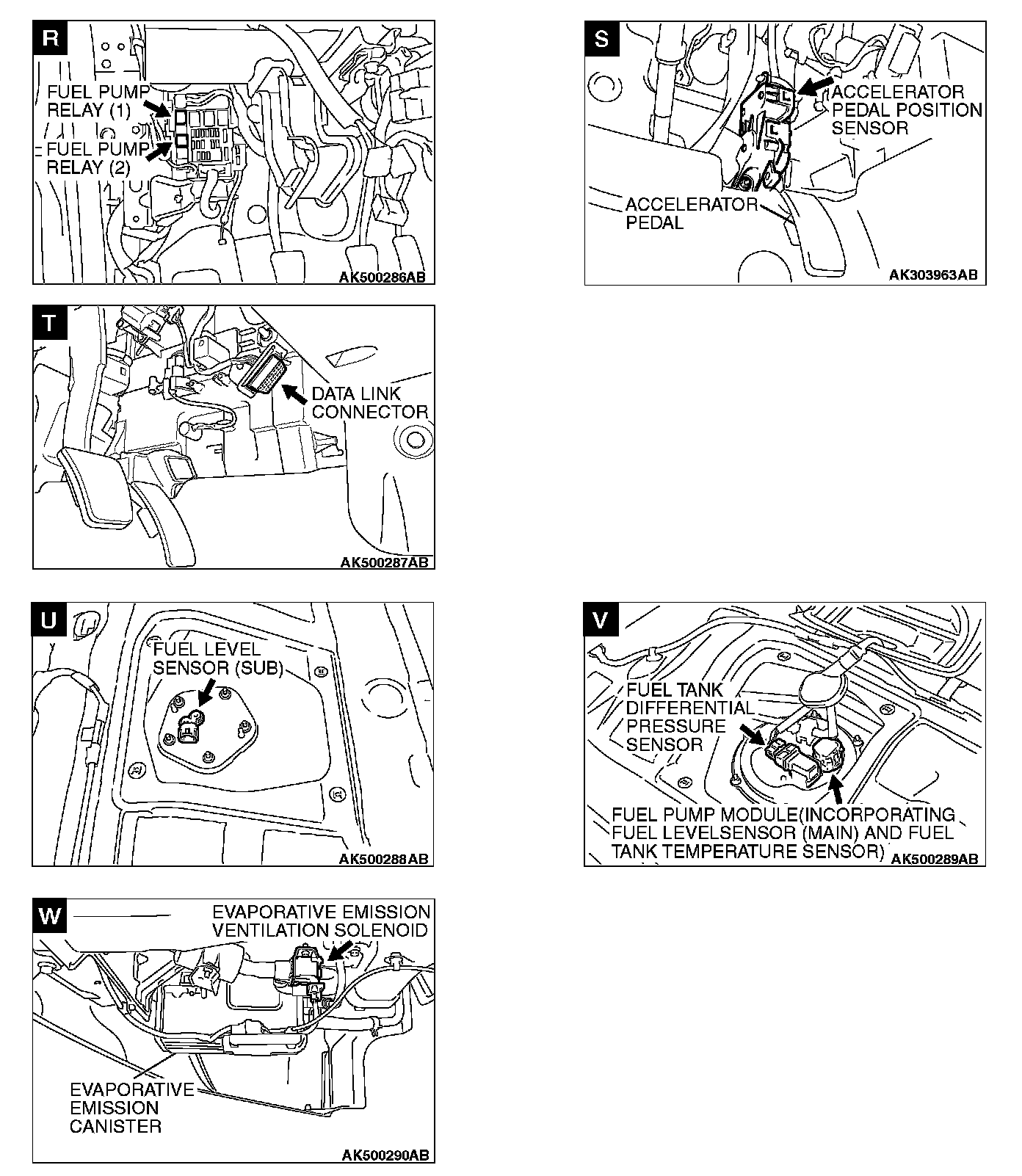

View R-V:
