Loose Panel
LOOSE PANEL
REMOVAL AND INSTALLATION

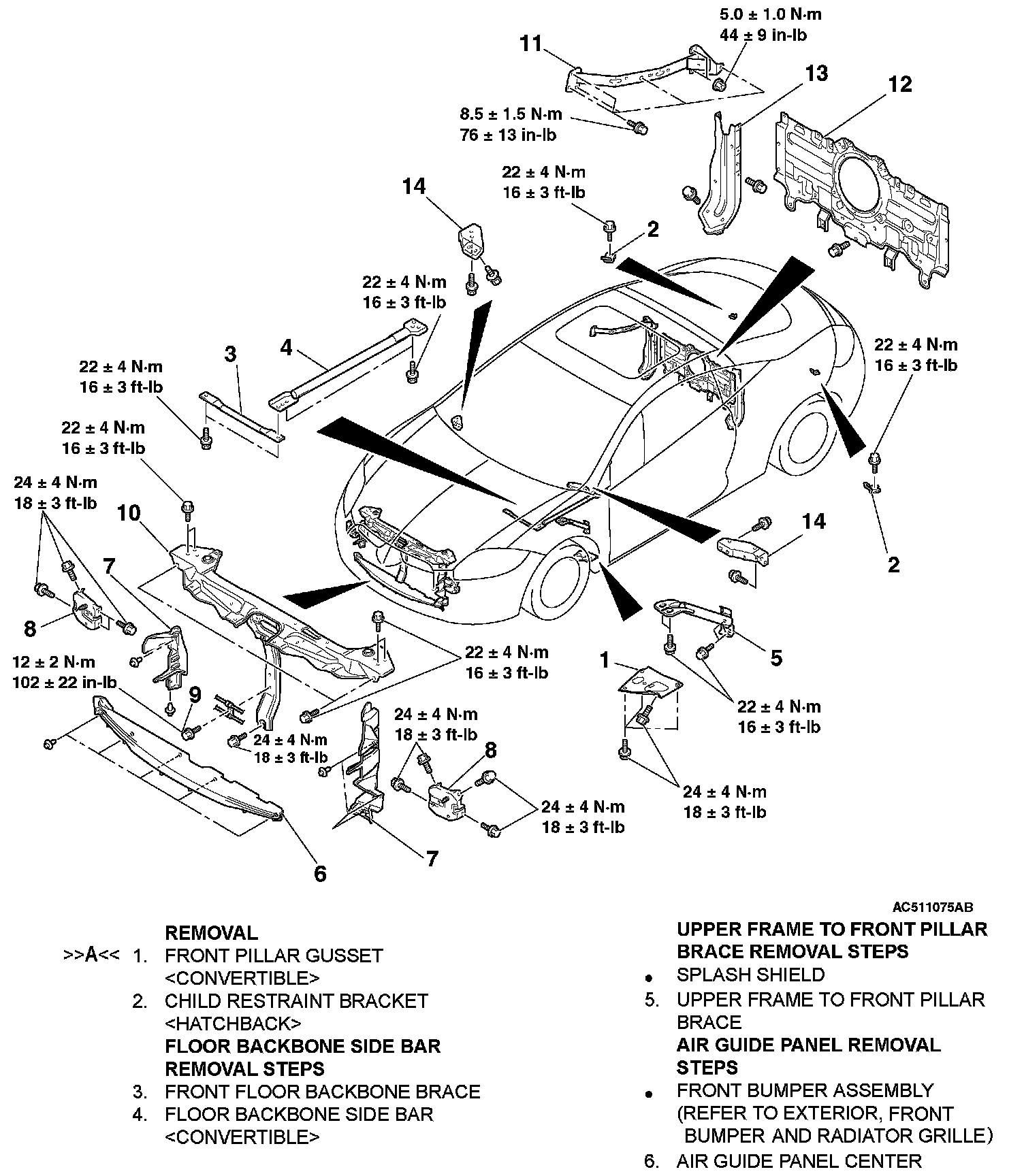

Removal Steps 1-14 (Part 1):

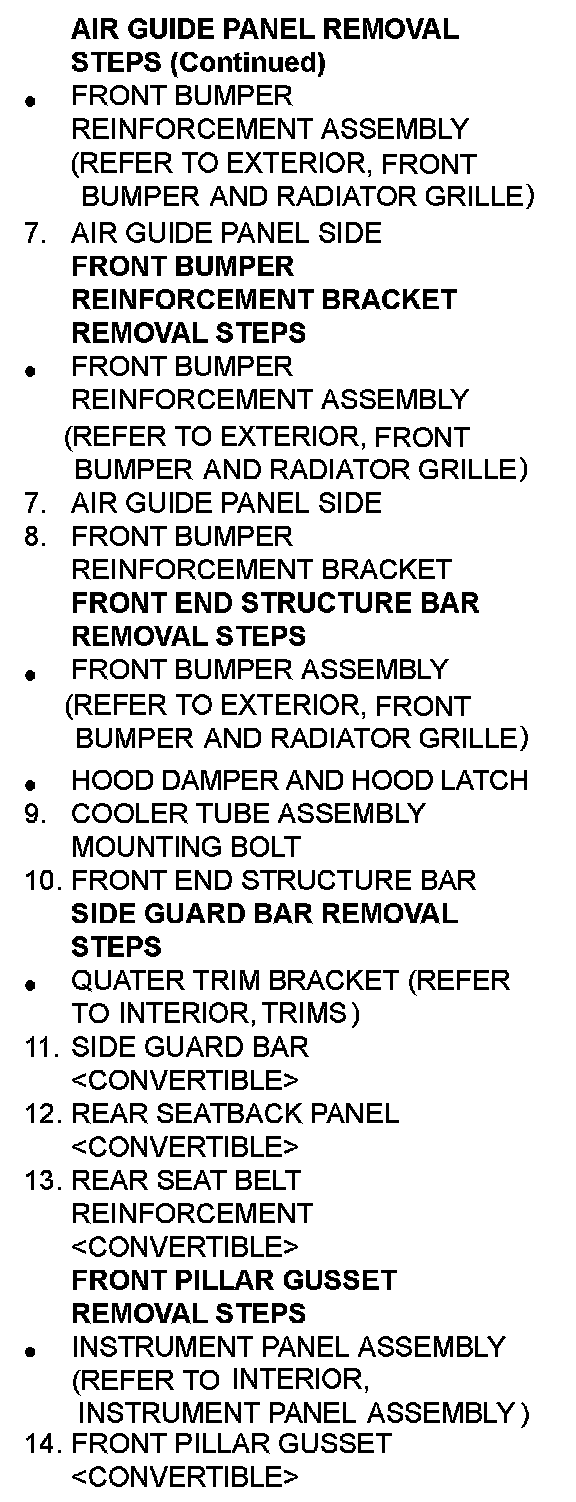

Removal Steps 1-14 (Part 2):
