Defogger Relay Continuity Check

TERMINALS CONTINUITY REFERENCE CHART

BATTERY VOLTAGE CONNECT TESTER BETWEEN: SPECIFIED CONDITION
Not applied 4-5 Open Circuit
  • Connect terminal 1 to the positive battery terminal
  • Connect terminal 3 to the negative battery terminal
 4-5 Less than 2 ohms

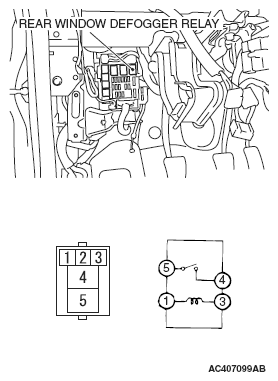

Fig 1: Identifying Rear Window Defogger Relay
G05106510Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
