Liftgate Handle Check

Check continuity between the liftgate handle terminals.

TESTING LIFTGATE HANDLE

HANDLE POSITION TESTER CONNECTION SPECIFIED CONDITION
At the "ON" position 1 - 2 Less than 2 ohms
At the "OFF" position 1 - 2 Open circuit

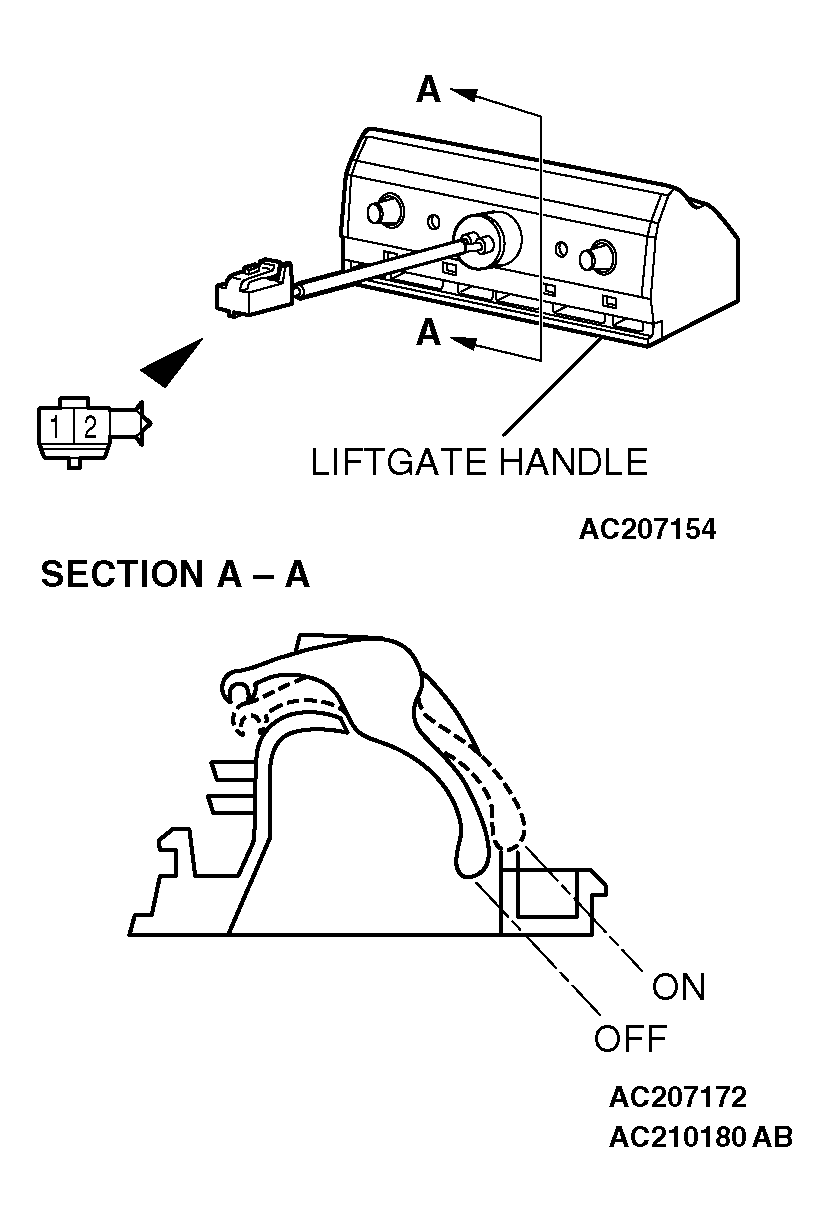

Fig 1: Identifying Liftgate Handle Connector Terminal
G04312757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
