Home >> Mitsubishi >> 2007 >> Endeavor LS, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control >> Exhaust Gas RECIRCULATION (EGR) System >> Removal And Installation >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Removal And Installation: Notes

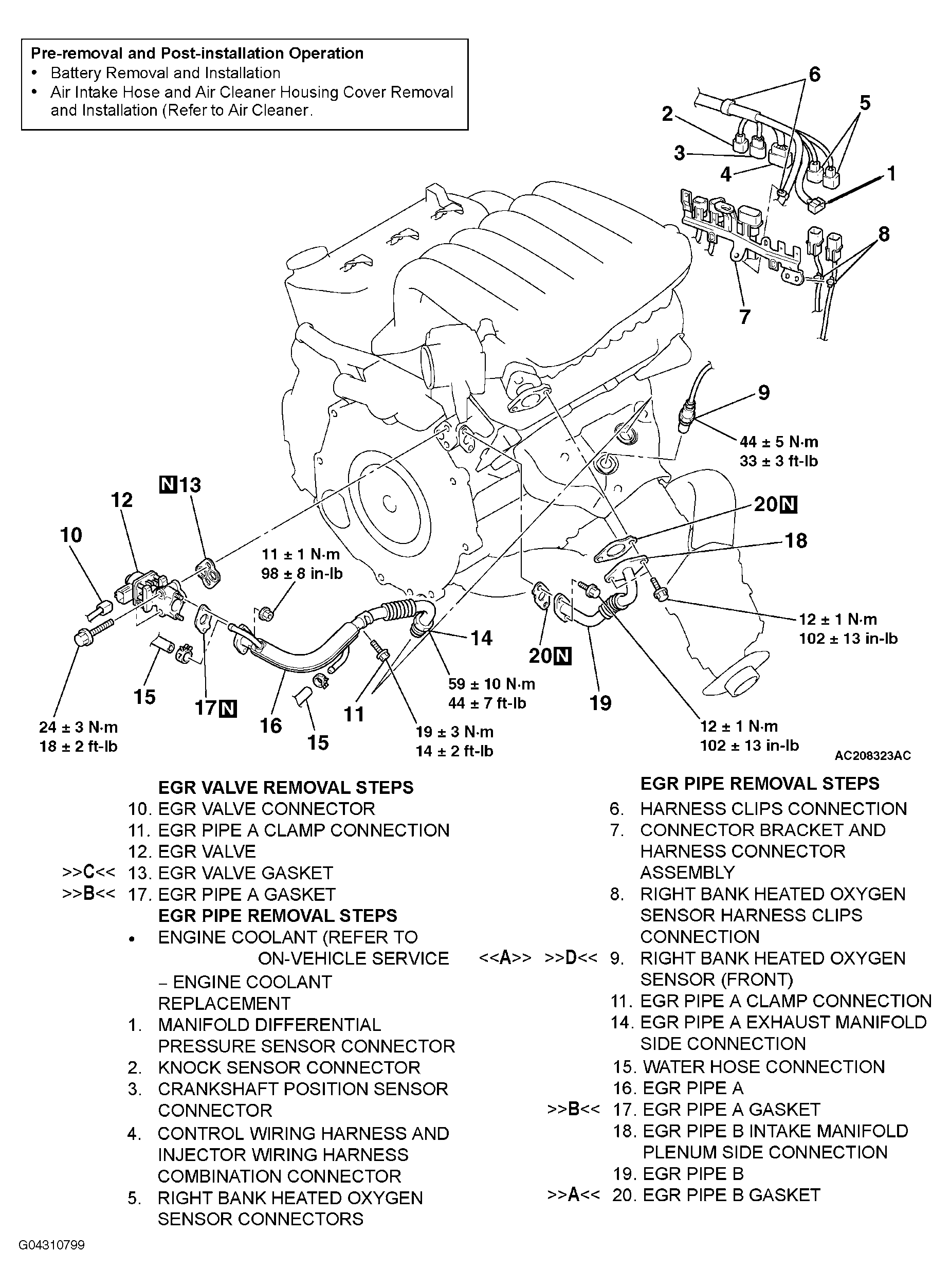

Fig 1: Removing/Installing EGR Valve With Torque Specifications
G04310799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
