Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

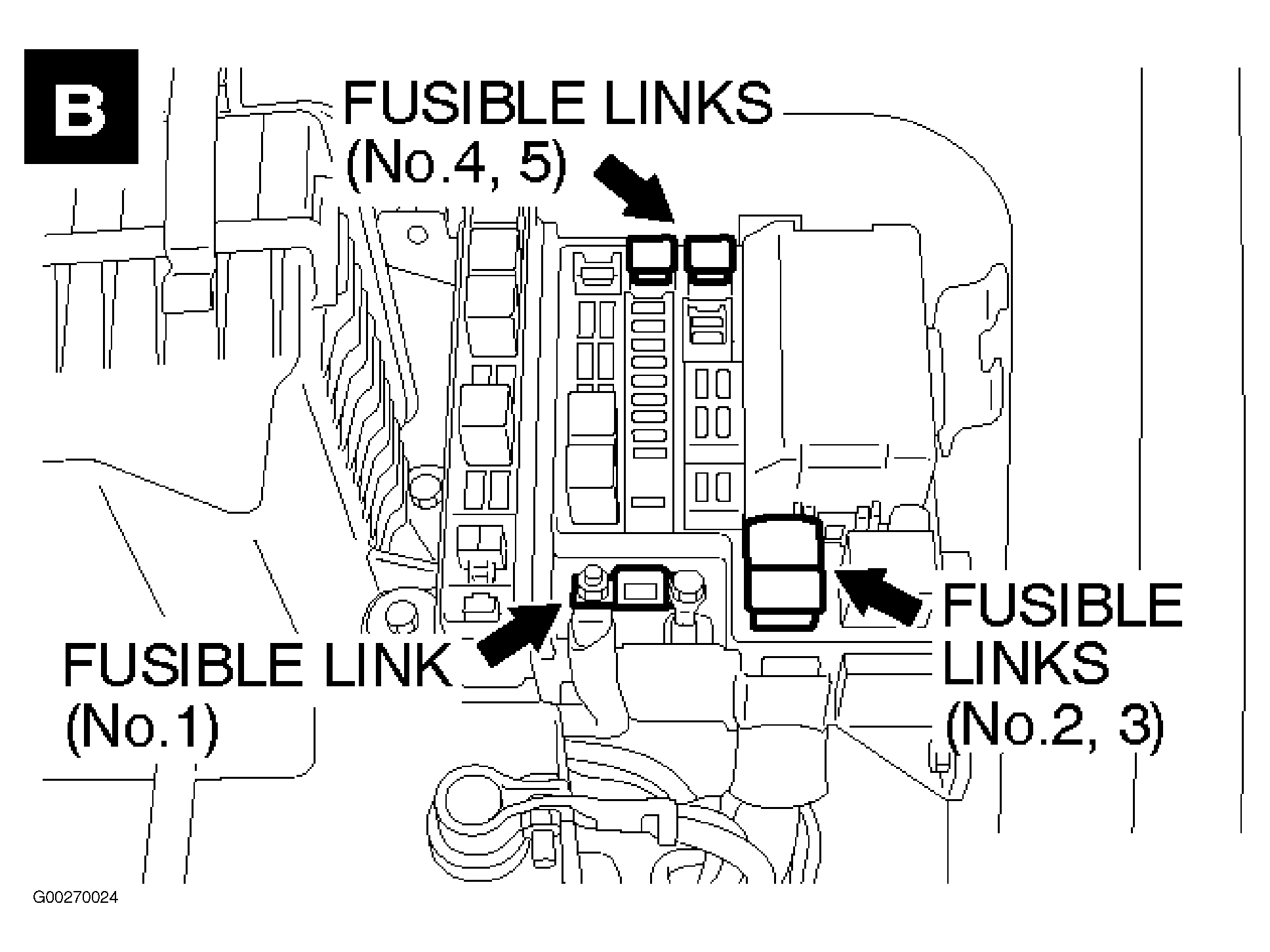

| Fusible Link No. 1, 2, 3, 4 & 5 |
In engine compartment relay box. See Figure. |

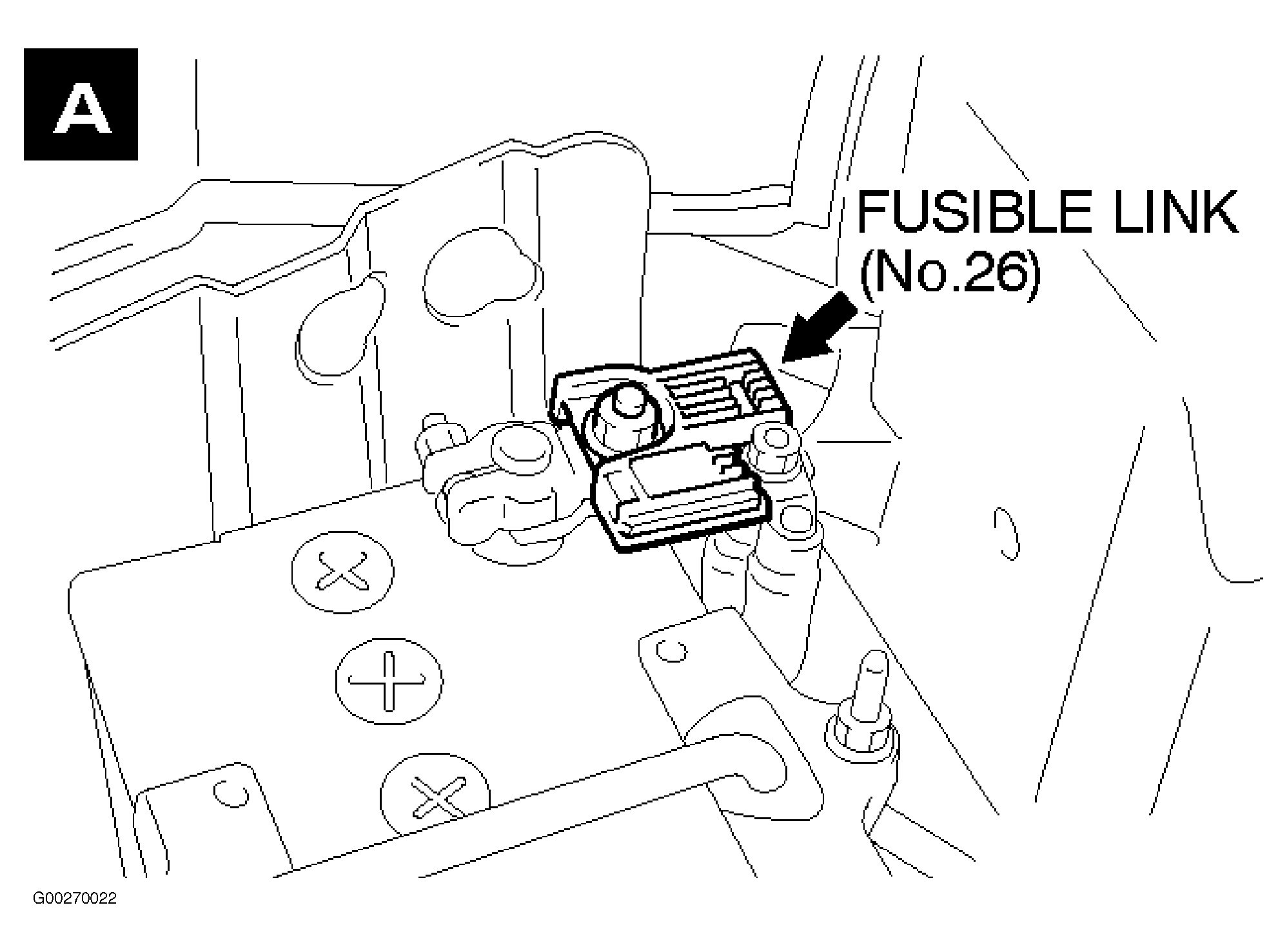

| Fusible Link No. 26 |
On battery terminal. See Figure. |

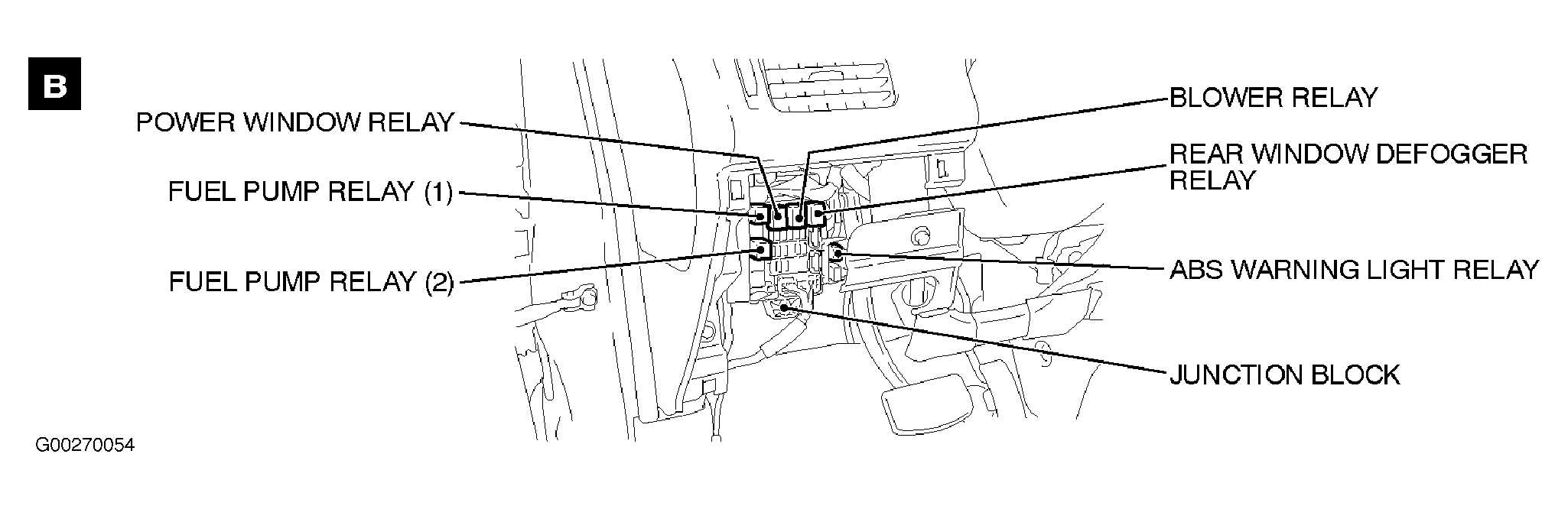

| Junction Block |
Behind left end of dash. See Figure. |
| Relay Box |
Left side of engine compartment. See Figure. |
