Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

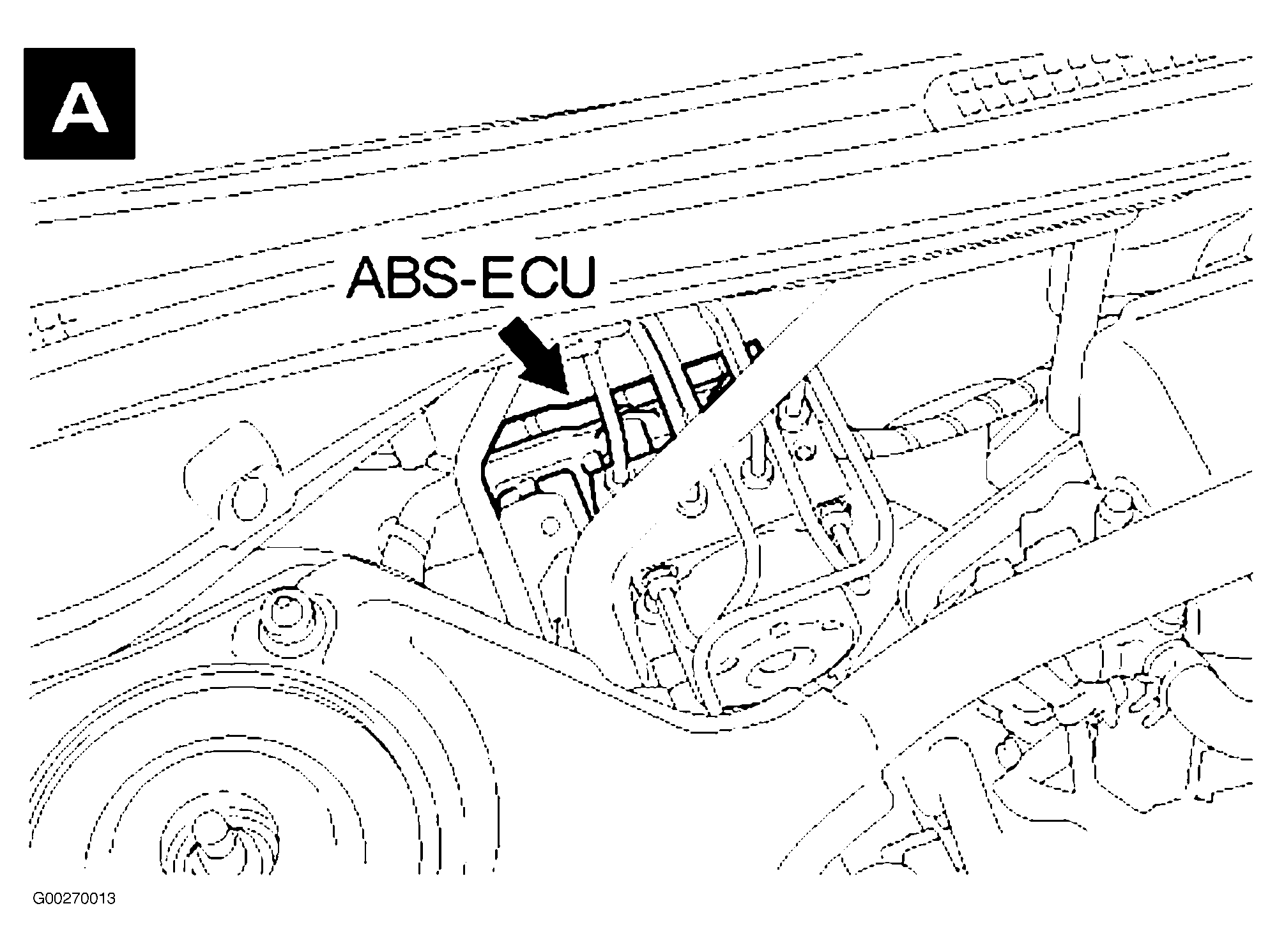

| ABS ECU | On right rear of engine compartment. See Figure. |

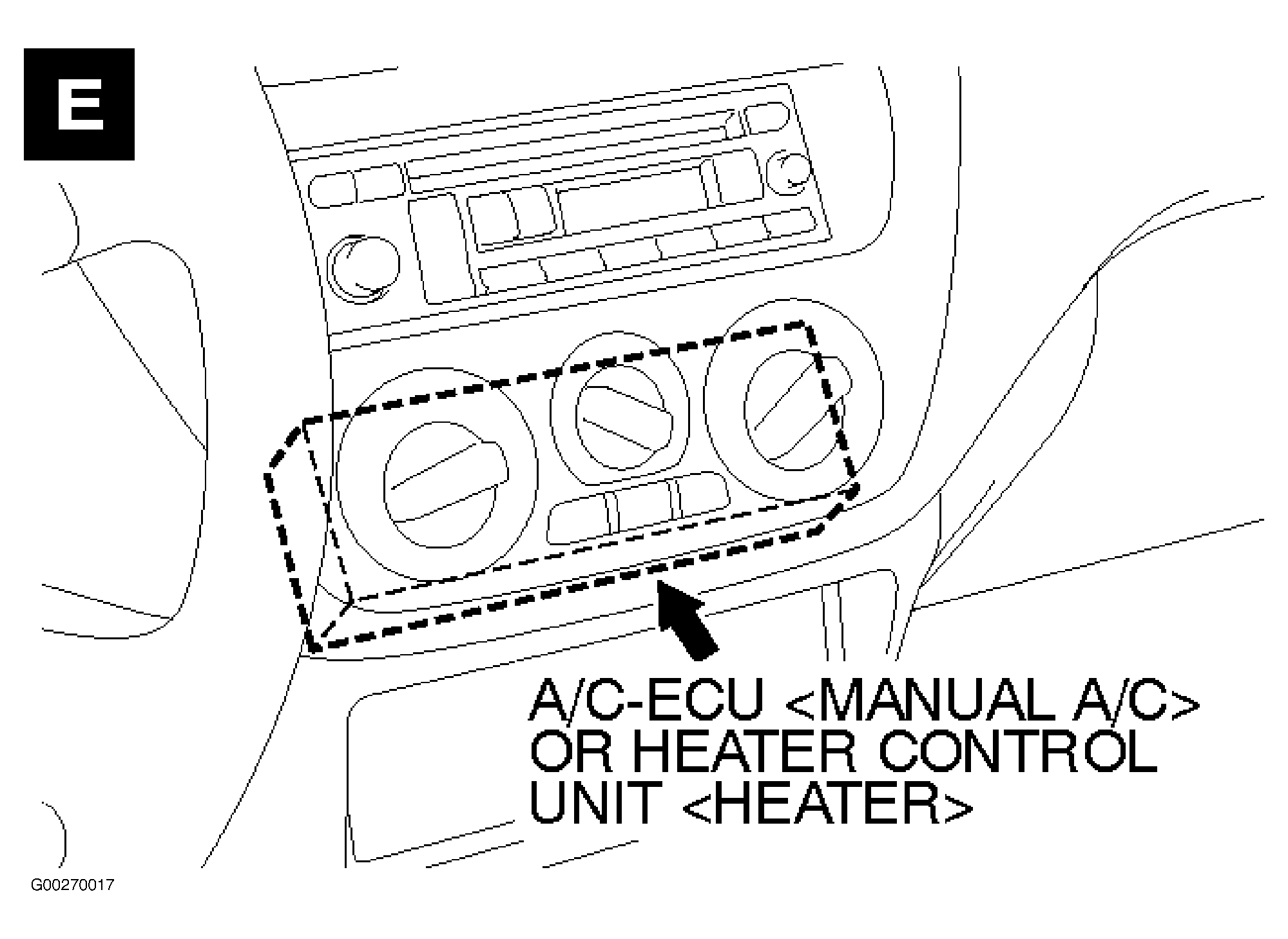

| A/C ECU | Behind center of dash, below radio. See Figure. |

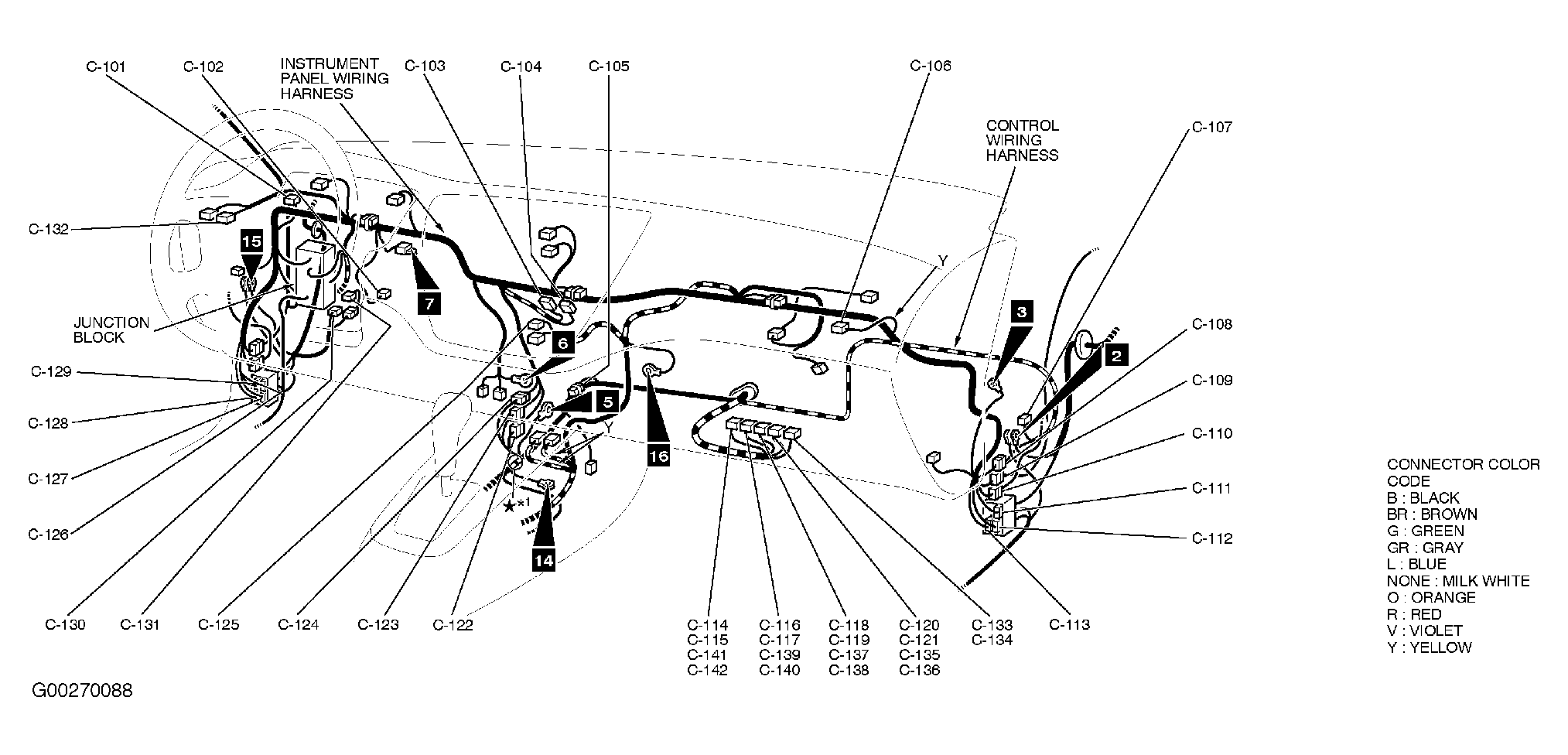

| Air Bag Module (Squib) (Driver's Side) (C-106) | At right side of dash. See Figure. |

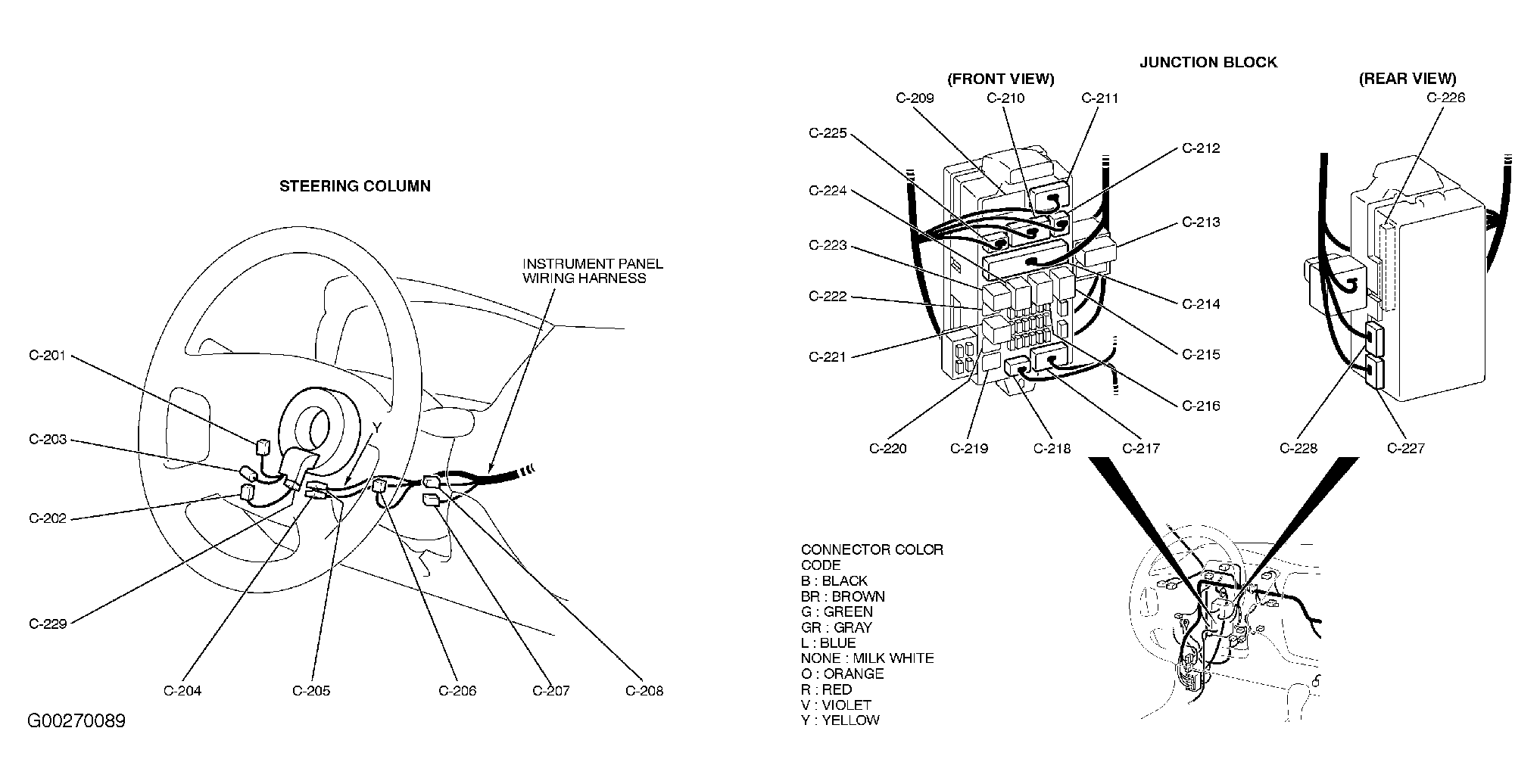

| Air Bag Module (Squib) (Driver's Side) (C-201) | In steering wheel. See Figure. |

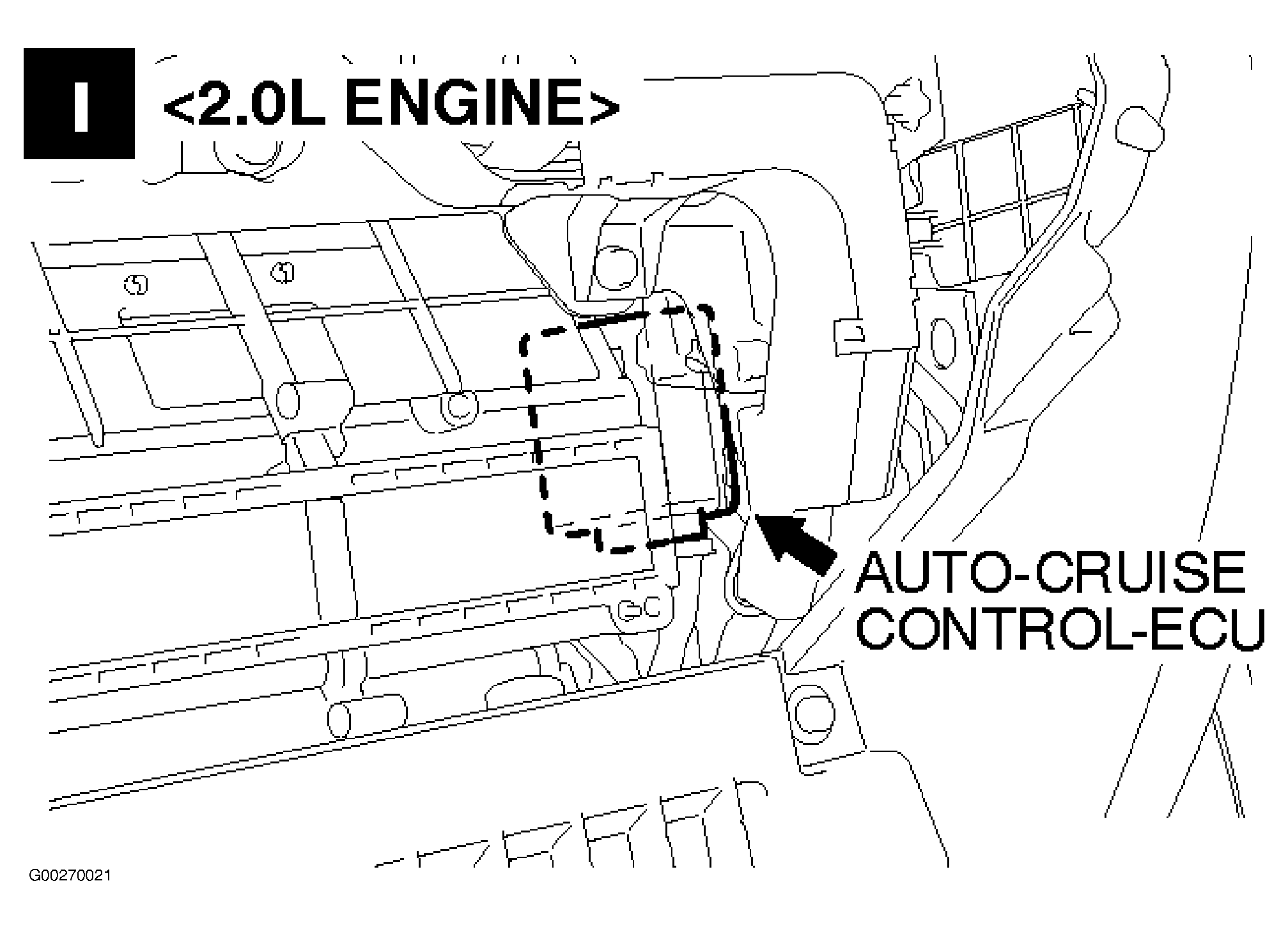

| Auto Cruise Control ECU | Behind right end of dash. See Figure. |

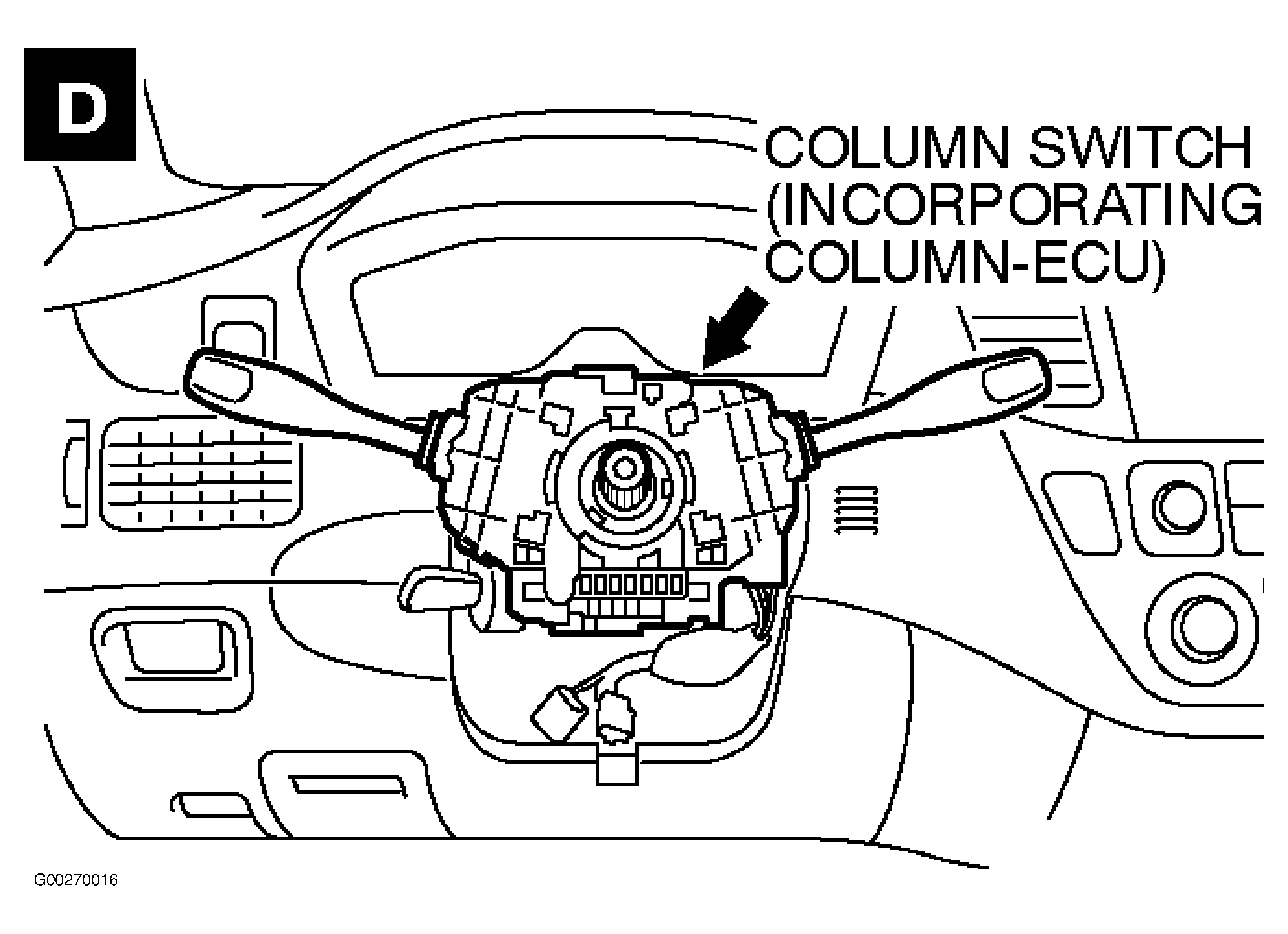

| Column Switch ECU | On top of steering column. See Figure. |

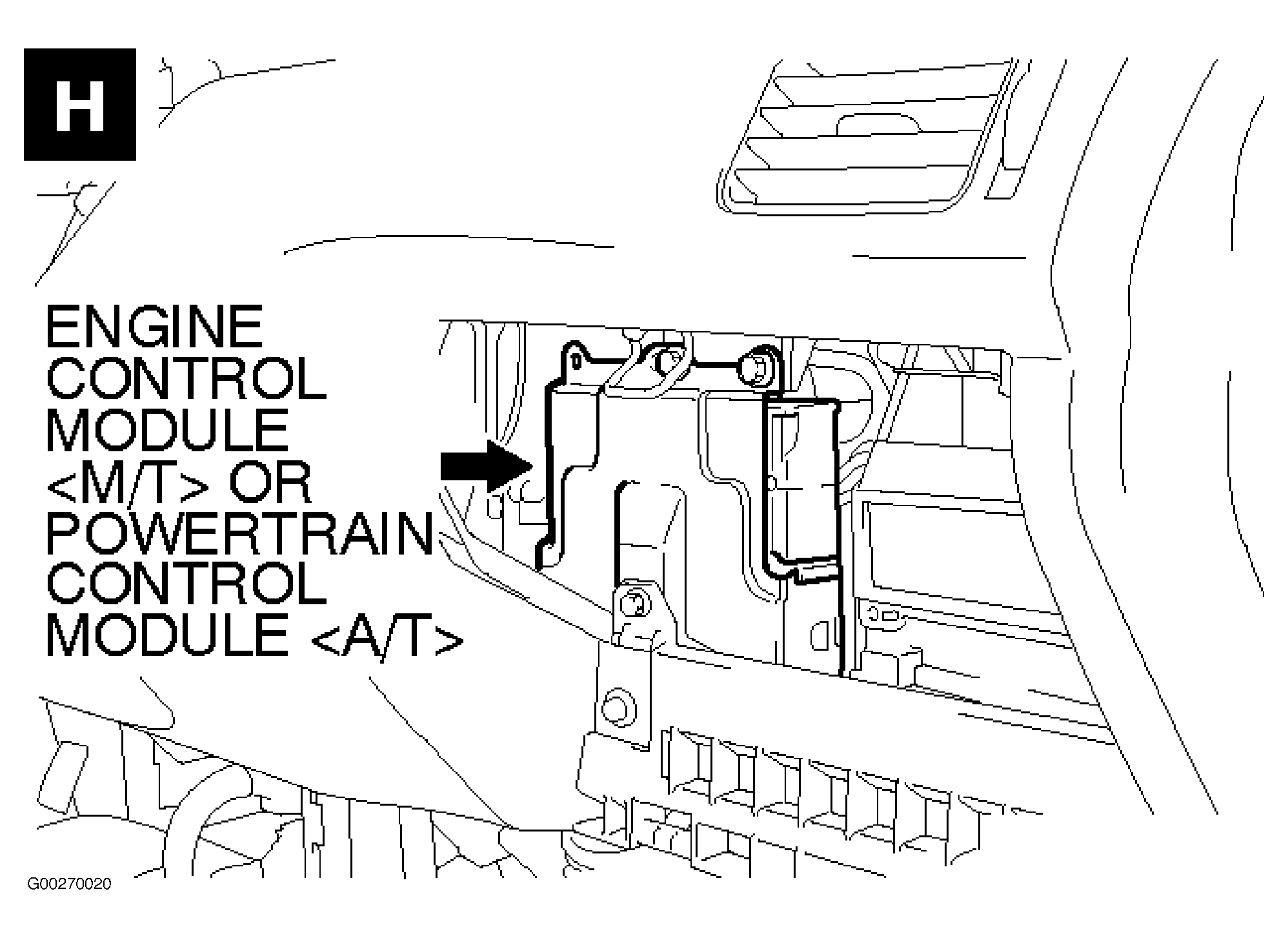

| Engine Control Module (M/T) | Behind glove box. See Figure. |

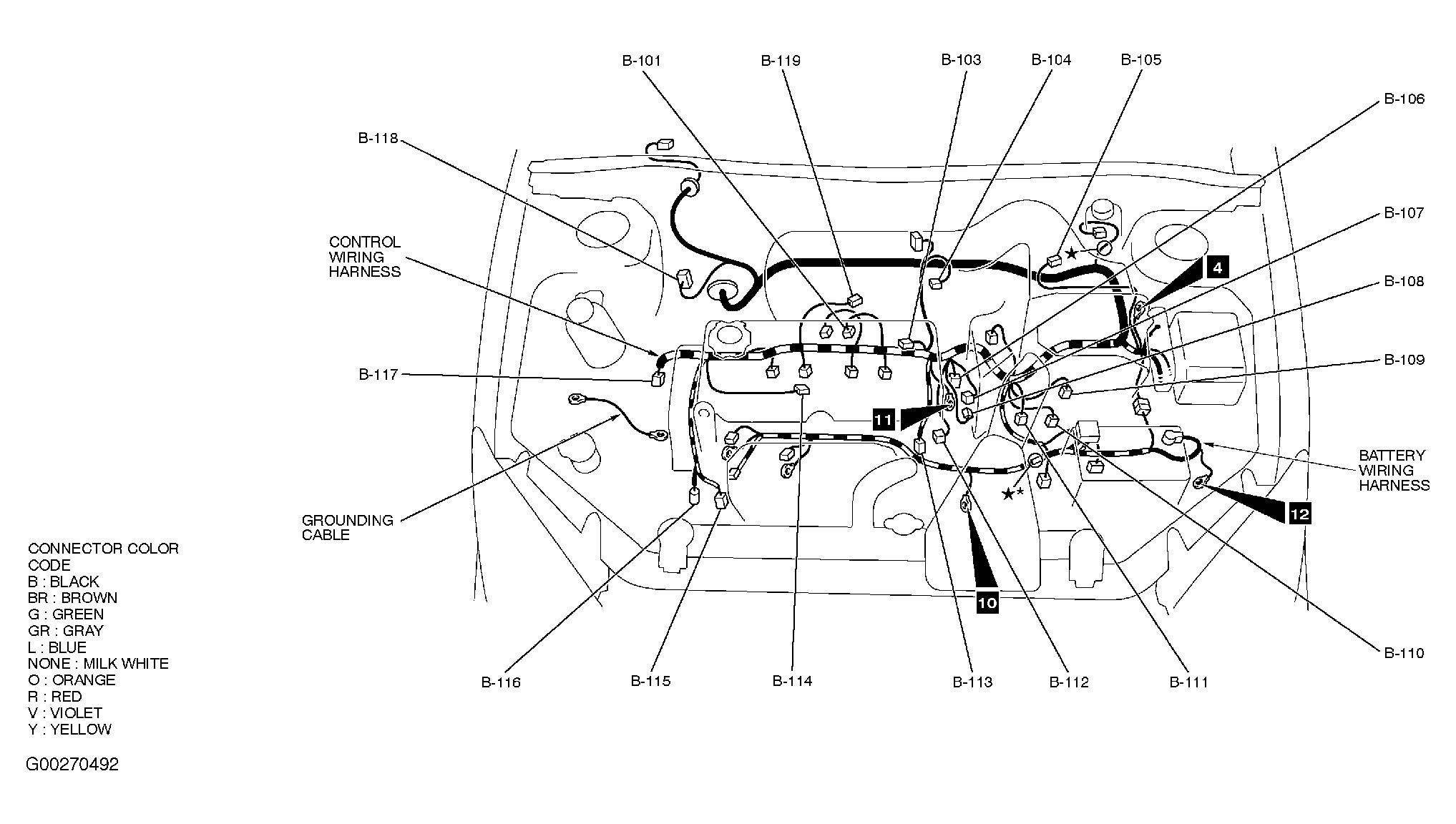

| Engine Coolant Temperature Gauge Unit (B-112) | Left rear of engine. See Figure. |

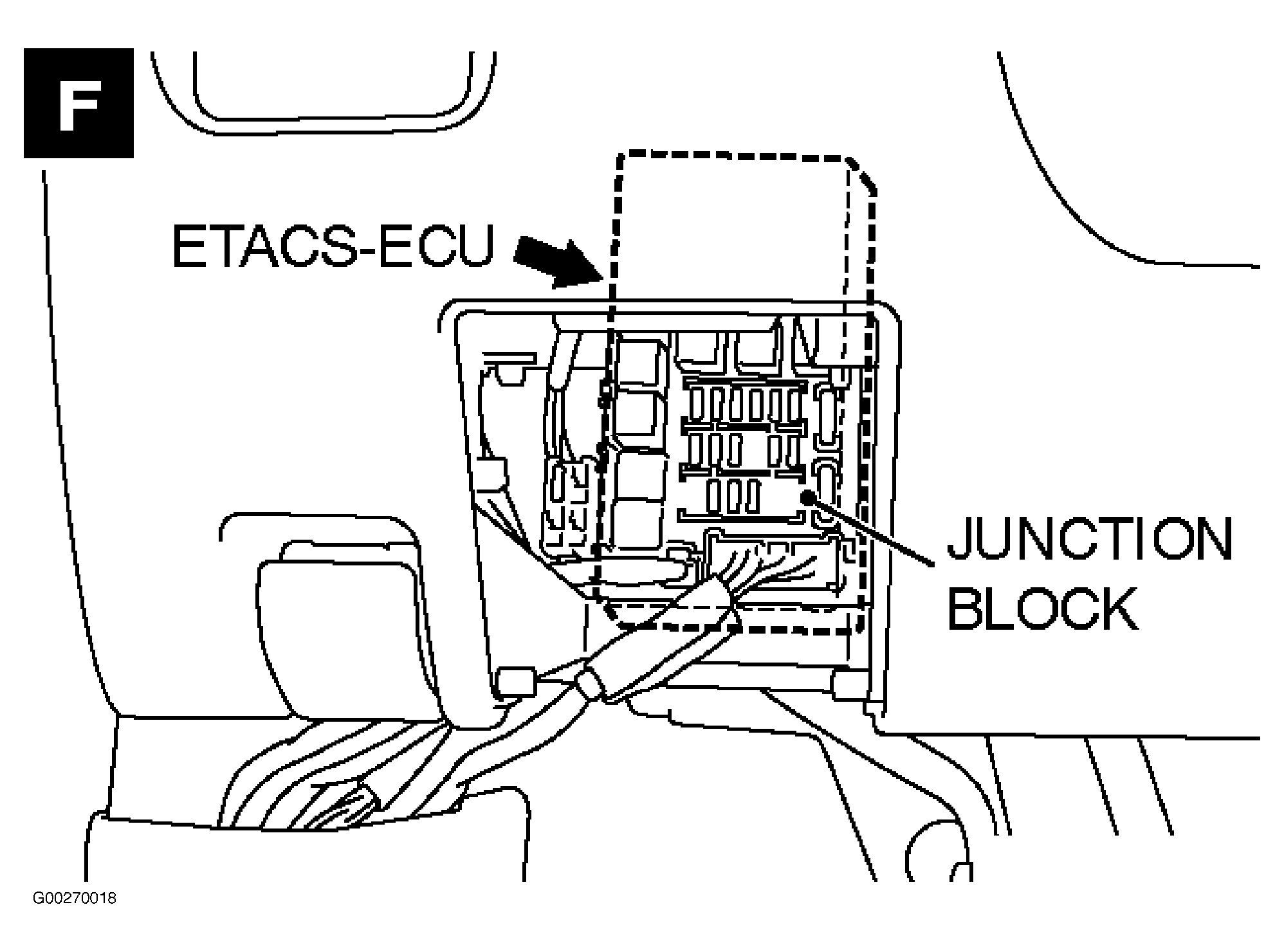

| ETACS ECU | On rear of junction block, behind left end of dash. See Figure. |

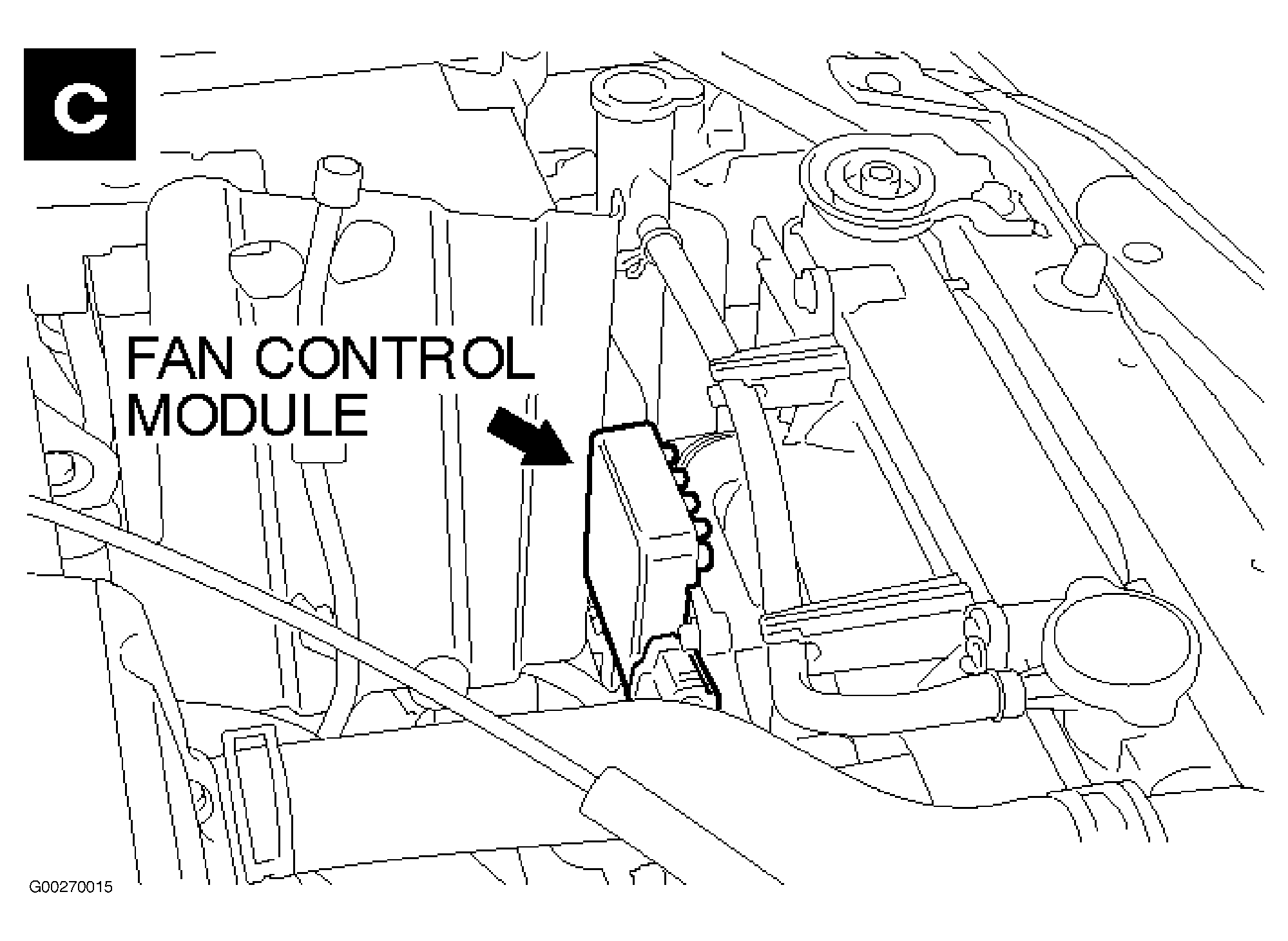

| Fan Control Module | On fan shroud, at left front of engine compartment. See Figure. |

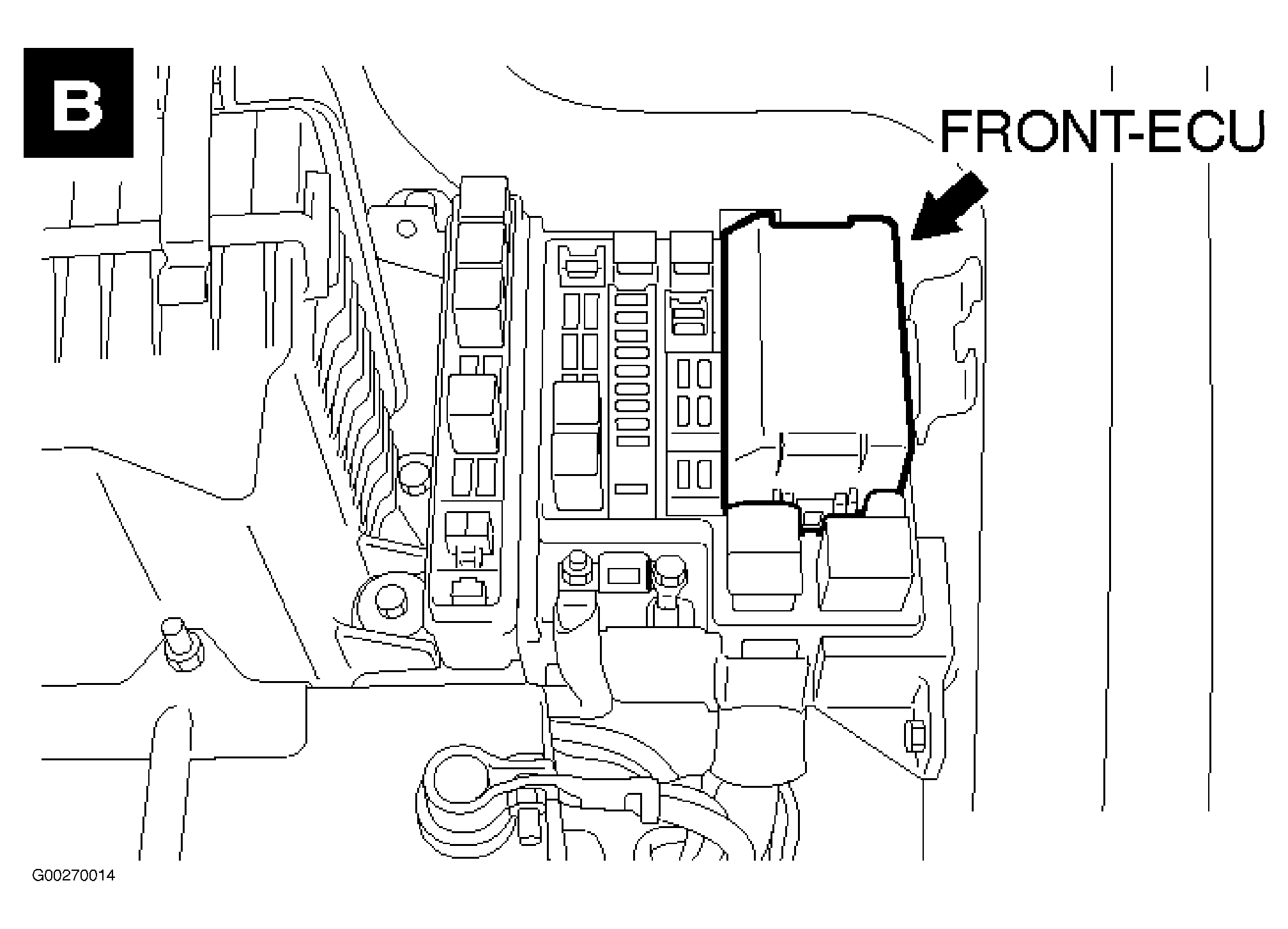

| Front-ECU | In engine compartment relay box. See Figure. |

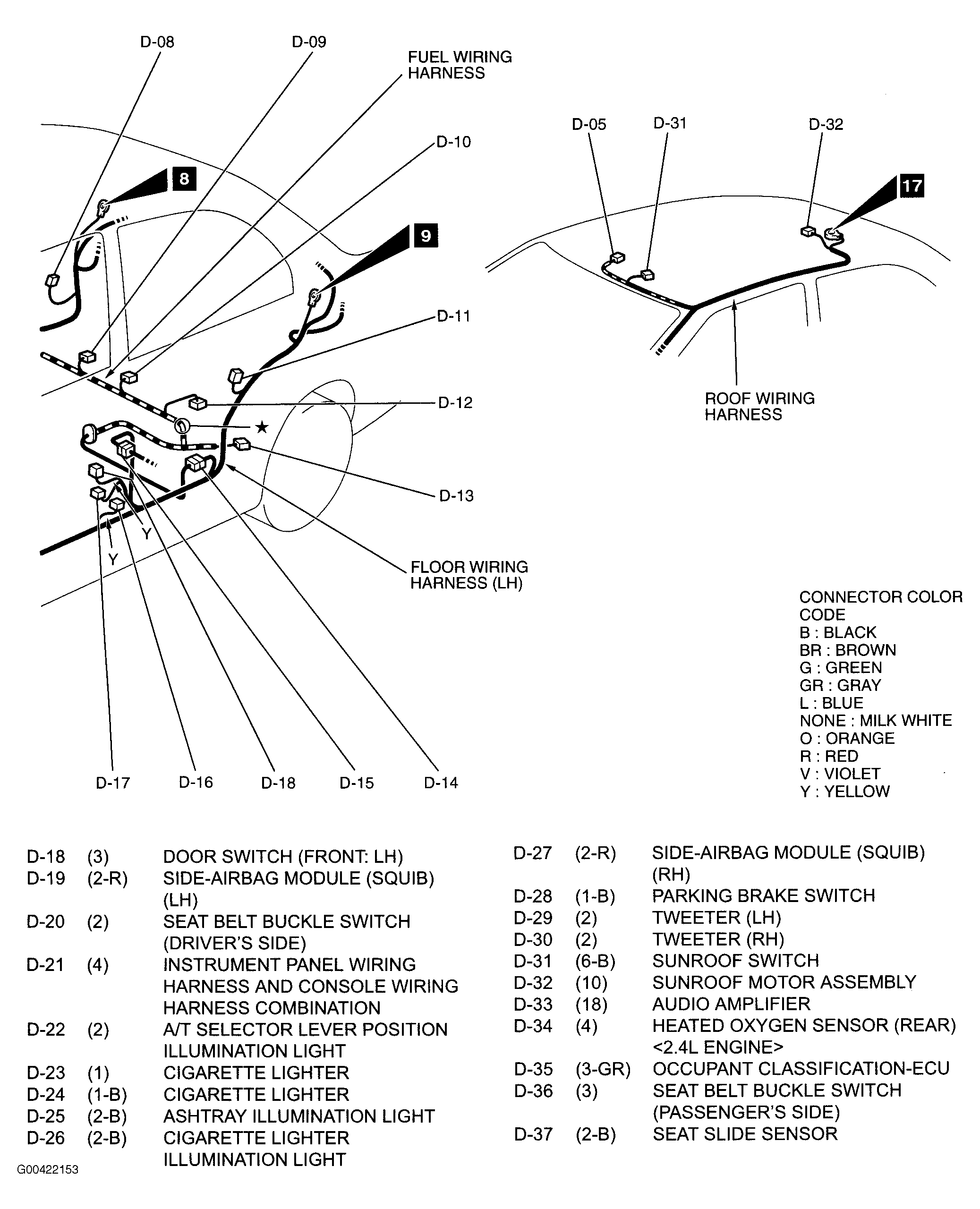

| Fuel Pump Module (D-12) | At fuel tank. See Figure. |

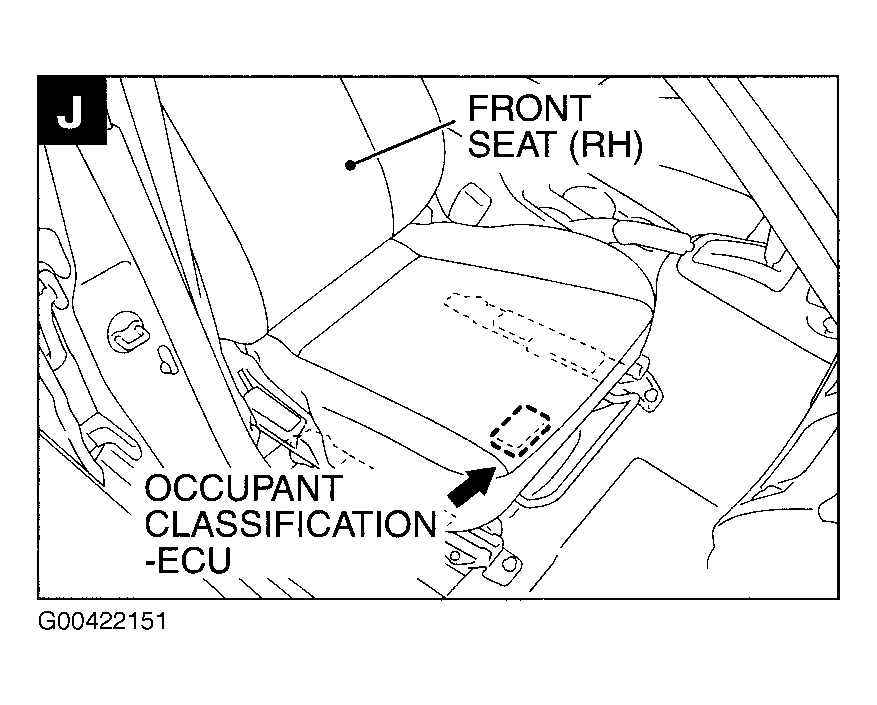

| Occupant Classification-ECU | Under front of front passenger's seat. See Figure. |
| Powertrain Control Module (A/T) | Behind glove box. See Figure. |

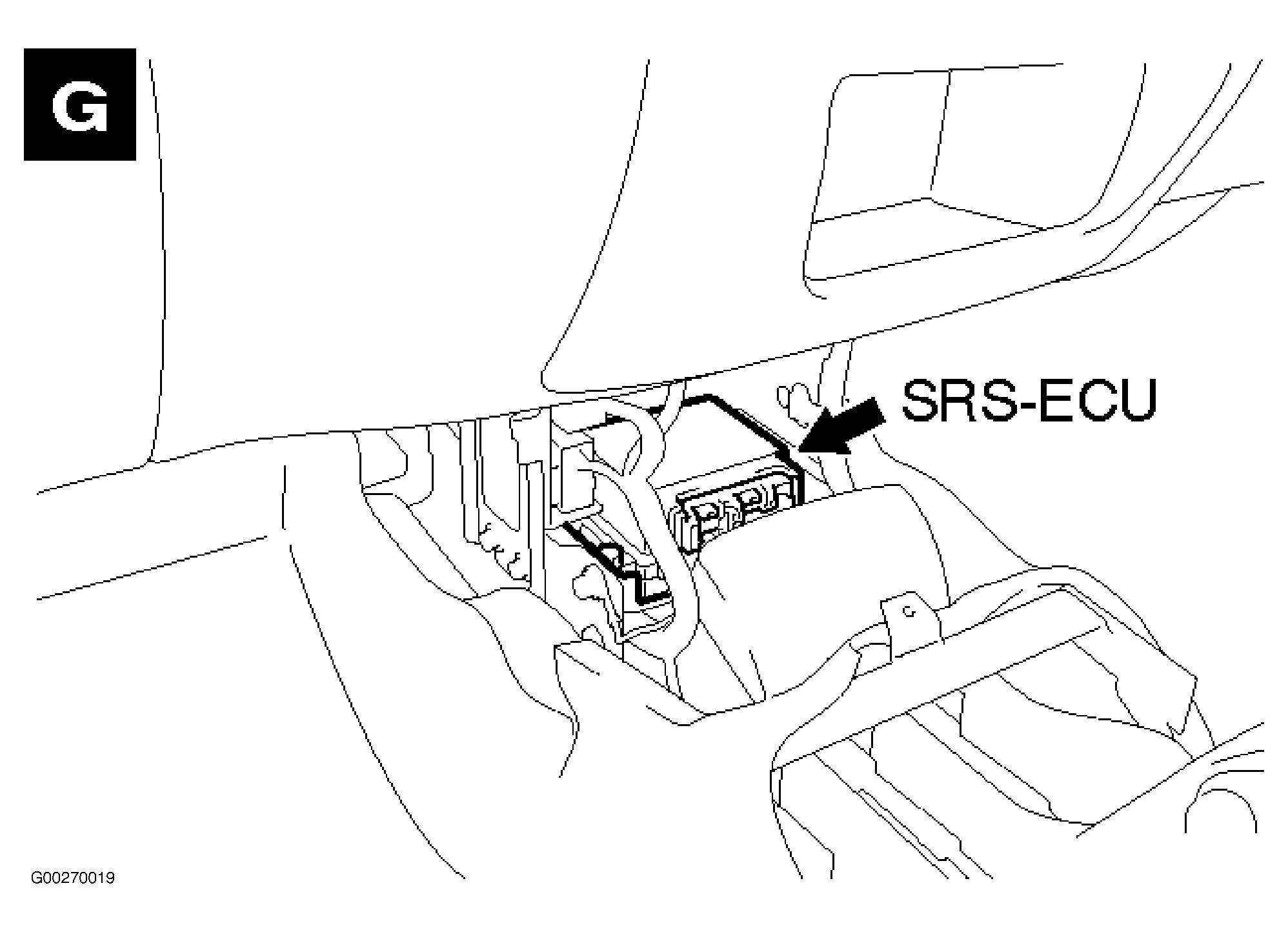

| SRS ECU | Behind lower center of dash. See Figure. |
