Removal and Installation

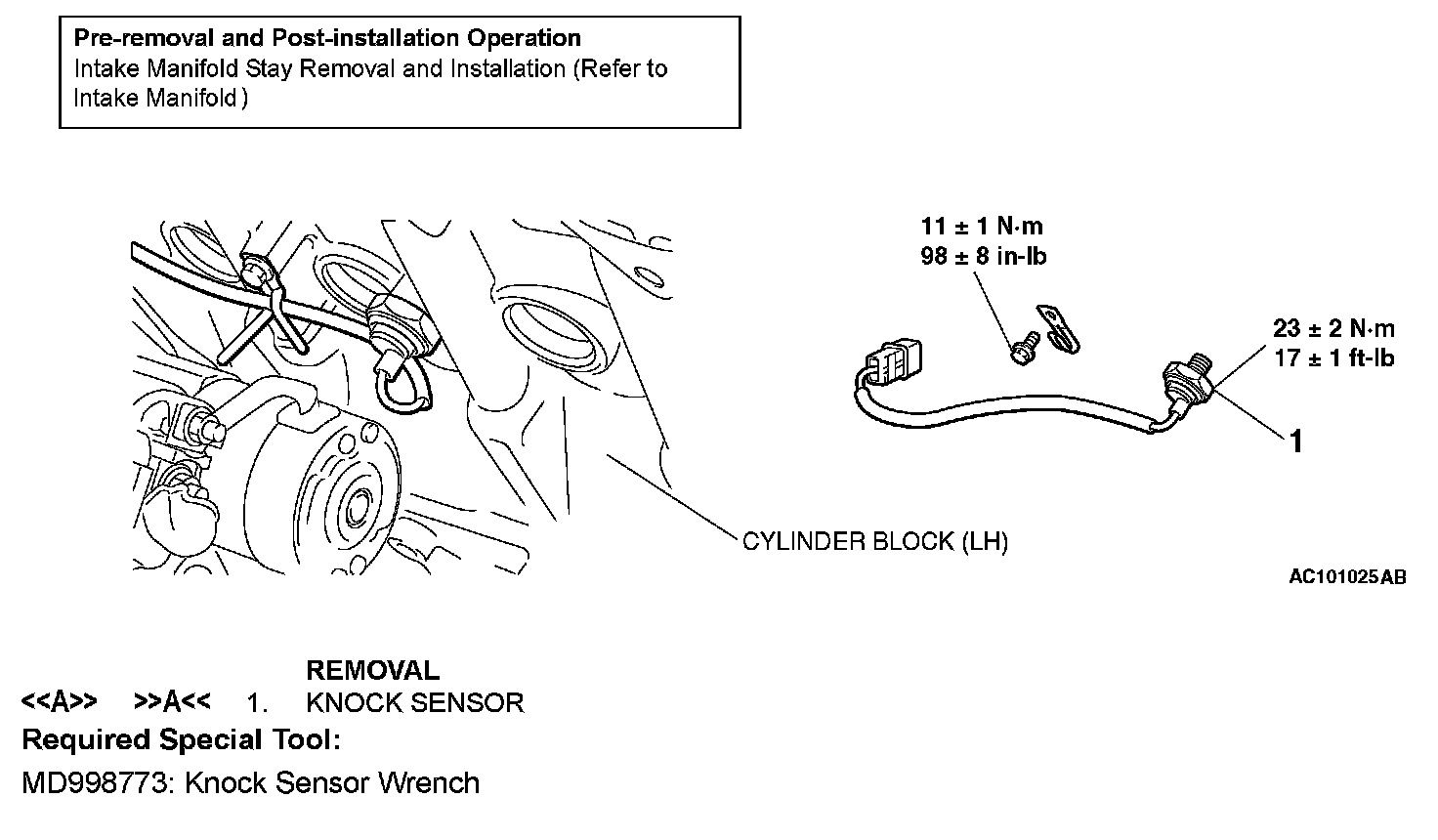

KNOCK SENSOR




REMOVAL AND INSTALLATION <2.0L ENGINE>

REMOVAL SERVICE POINT




<> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT




>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.
