Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.

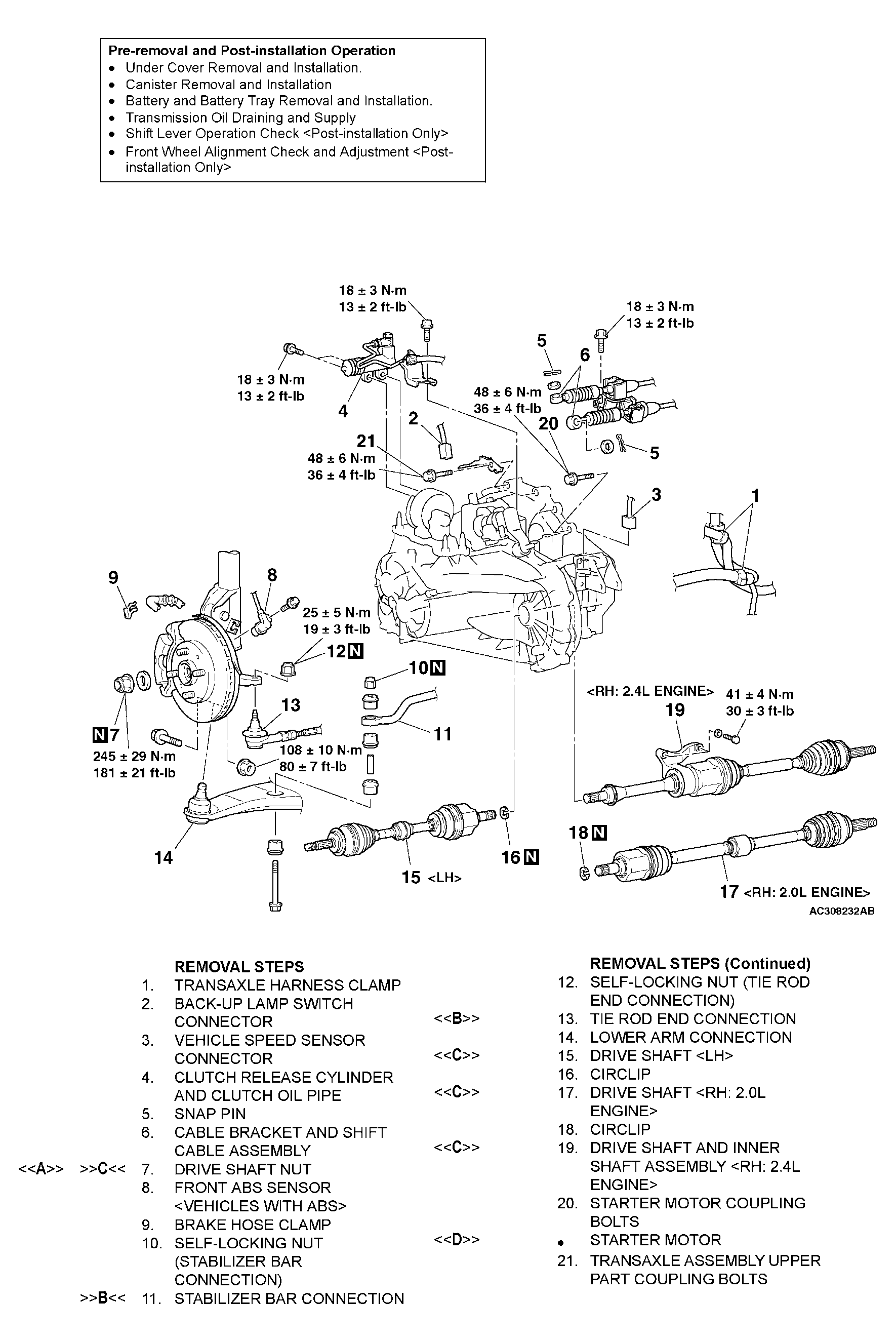

Fig 1: Exploded View Of Transaxle Assembly - 01

G04275748

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

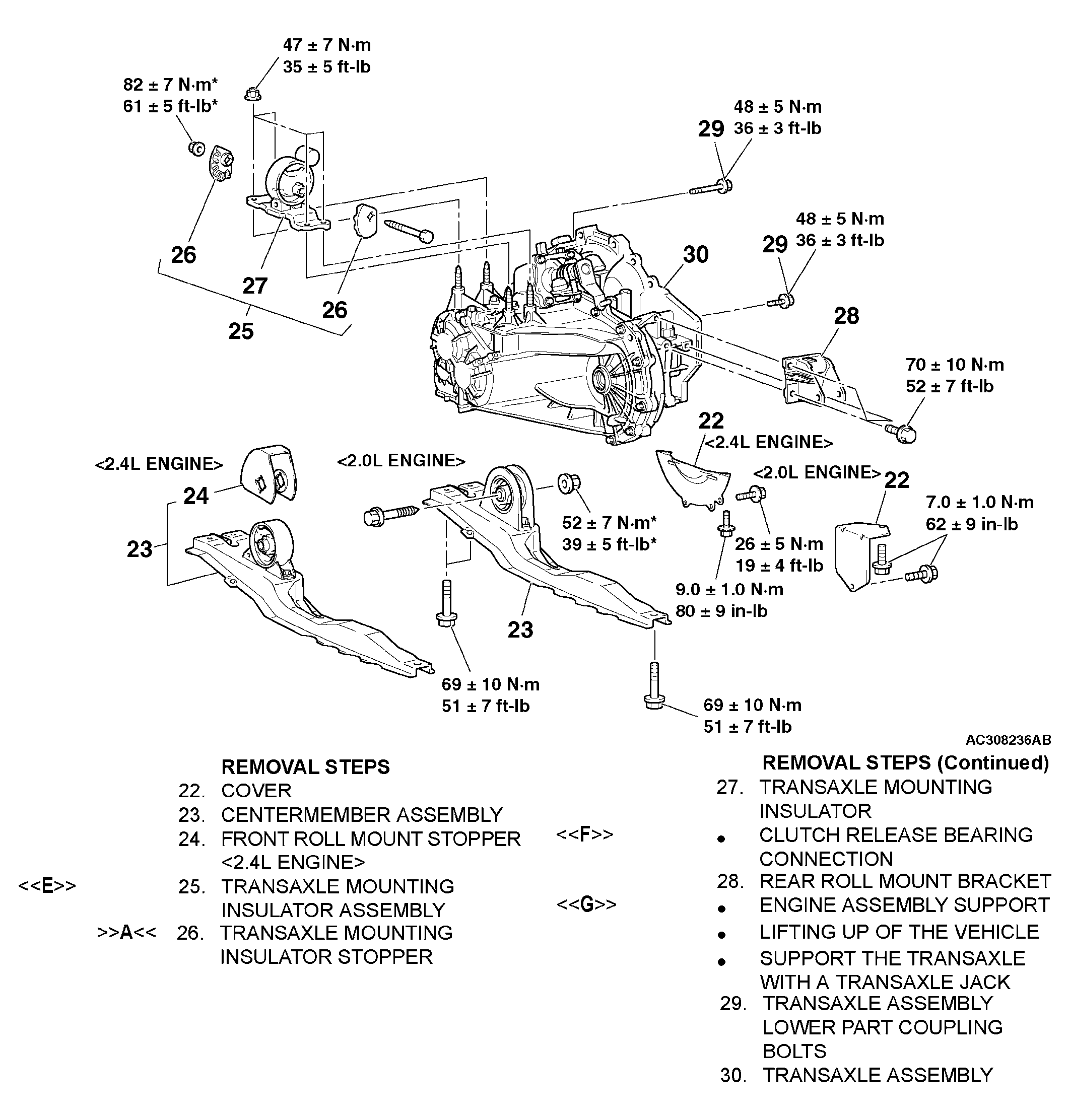

Fig 2: Exploded View Of Transaxle Assembly - 02

G04275749

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990767: End Yoke Holder
MB991897: Ball Joint Remover
MB990241: Axle Shaft Puller
MB990242: Puller Shaft Puller
MB990244: Puller Bar
MB991354: Puller Body
MB991017: Front Hub Remover and Installer
MB991000: Spacer
B991460: Plug
MB991527: Hanger
MB991454: Engine Hanger Balancer (chain)
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991932: Foot (standard)
MB991933: Foot (short)
MB991930: Joint (90)
MB991931: Joint (140)
