Disassembly And Assembly

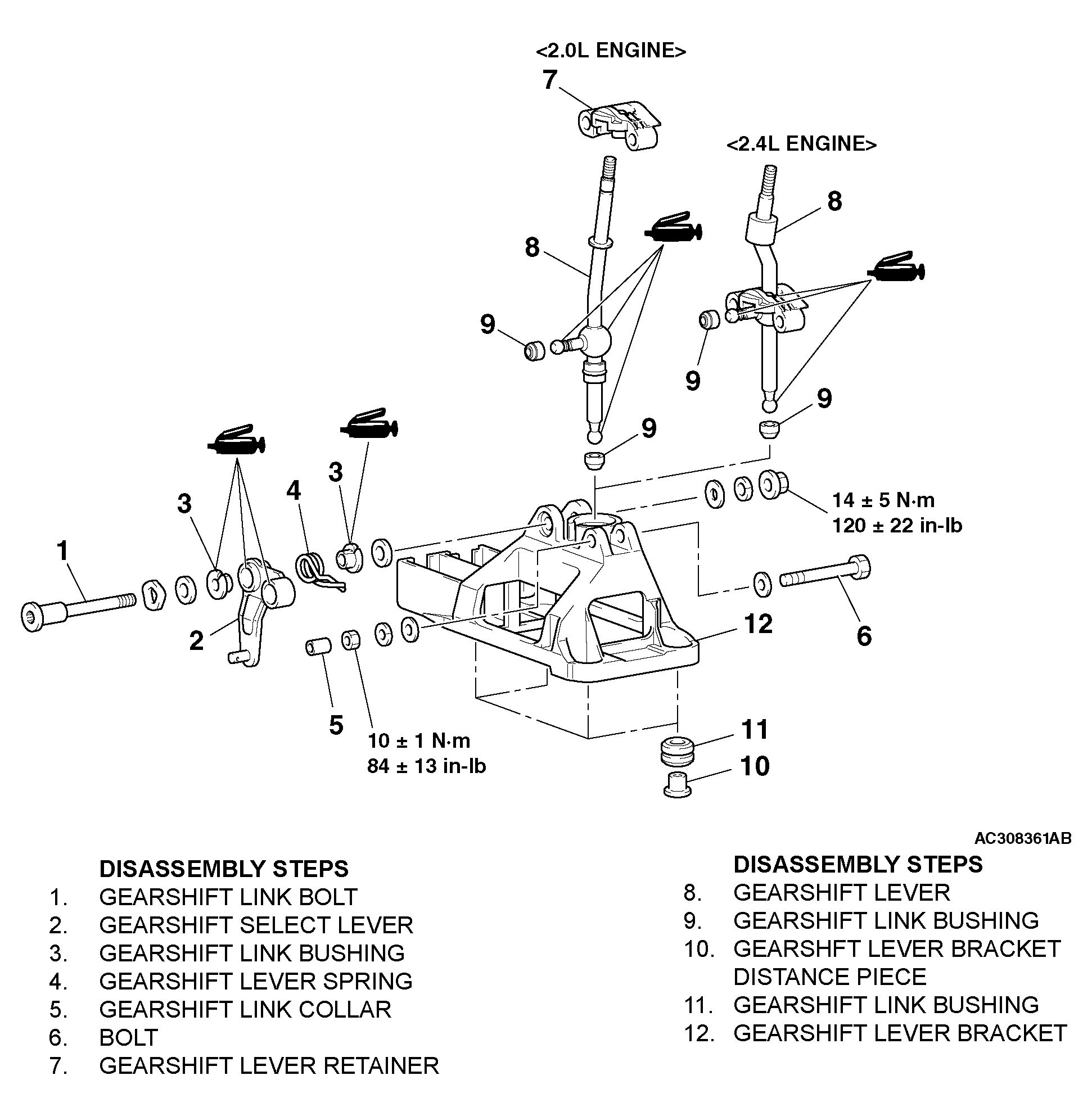

Fig 1: Disassembling And Assembling Shift Lever Assembly
G04275747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
