Removal And Installation: Notes

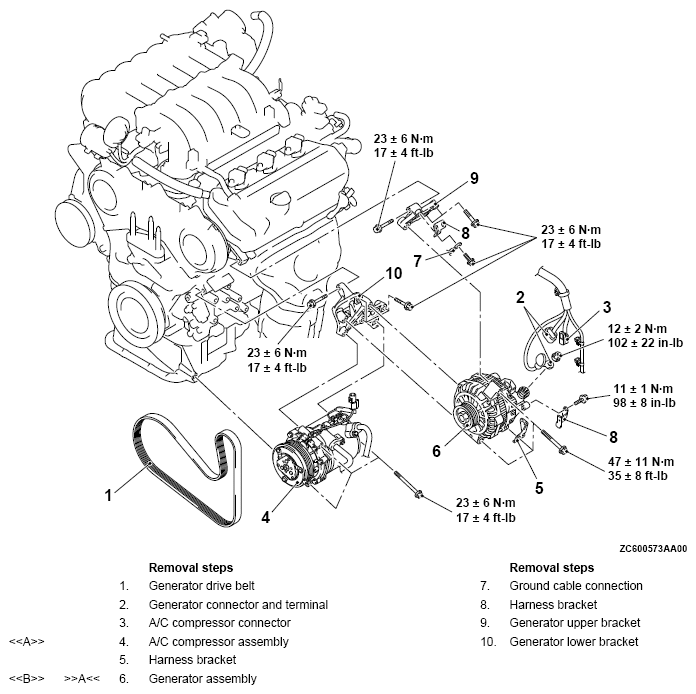

Fig 1: Generator Removal / Installation Components With Torque Specifications
G04870944Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
