*Can C Diagnostic (+) Circuit Open: Notes

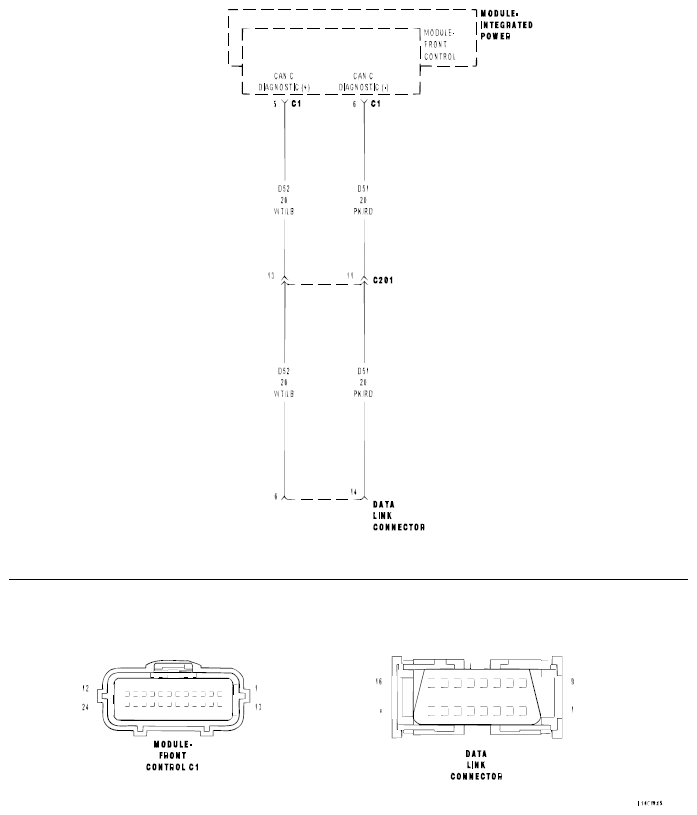

Fig 1: CAN C Diagnostic Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  When the scan tool queries the FCM.

• Set Condition:

  The scan tool has detected an open condition on the (D52) CAN C Diagnostic (+) circuit.
