DTC U0024-Can B Bus (-) Circuit Open: Notes

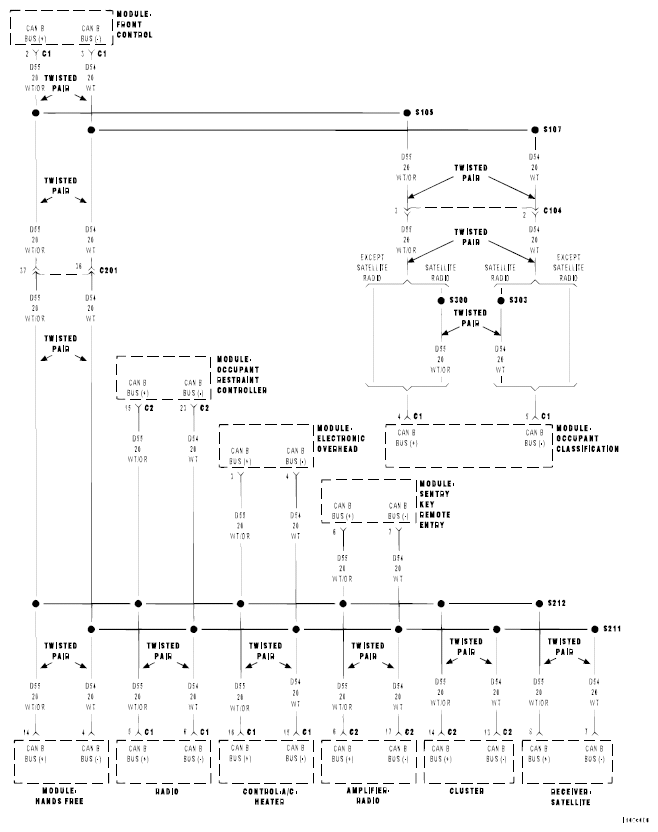

Fig 1: CAN B Bus Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  With the ignition on and battery voltage between 10 and 16 volts.

• Set Condition:

  The FCM detects the (D54) CAN B Bus (-) circuit is open.
