Removal And Installation: Notes

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE .)

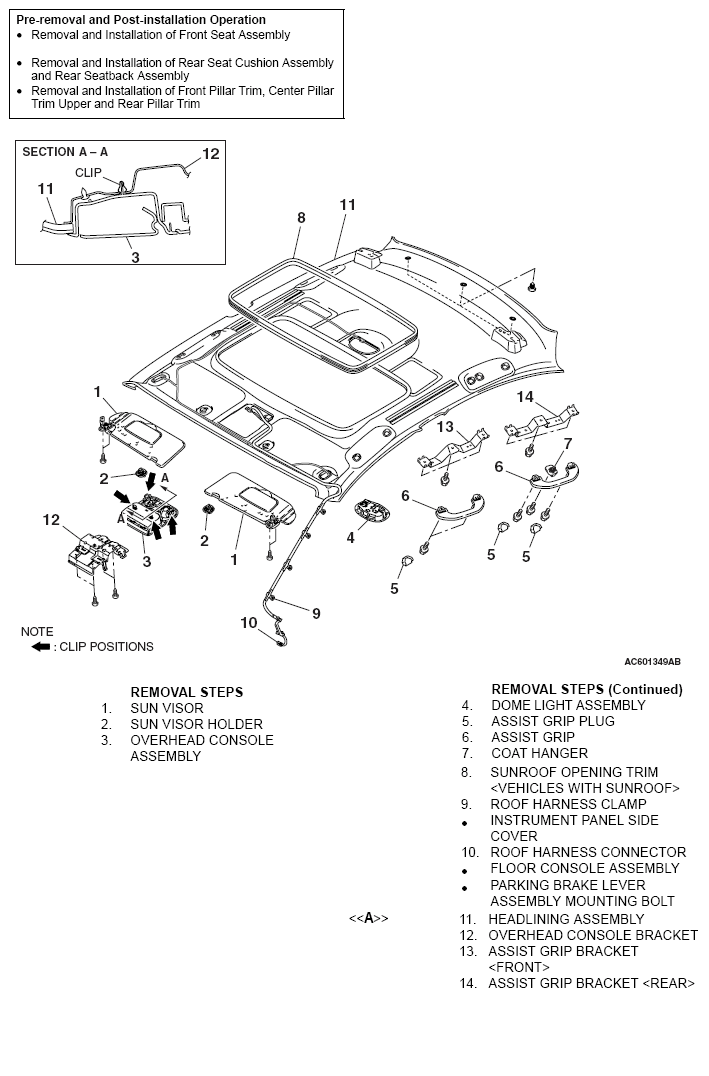

Fig 1: Removing/Installing Headlining Components
G05102826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
