Removal And Installation

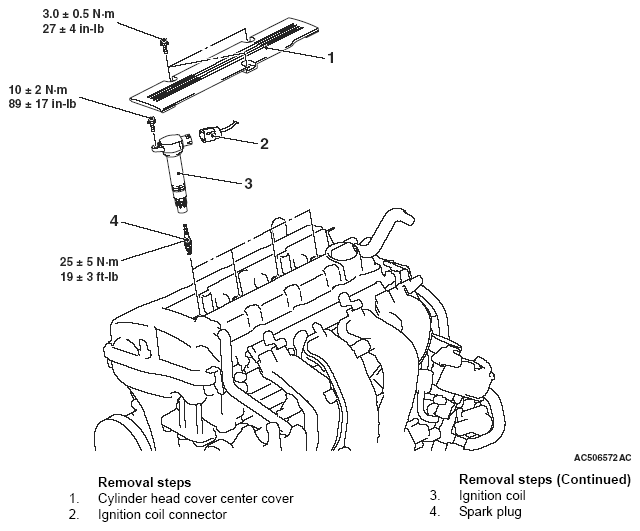

Fig 1: Ignition Coil Replacement Components With Torque Specifications
G05375456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
