Removal And Installation: Notes

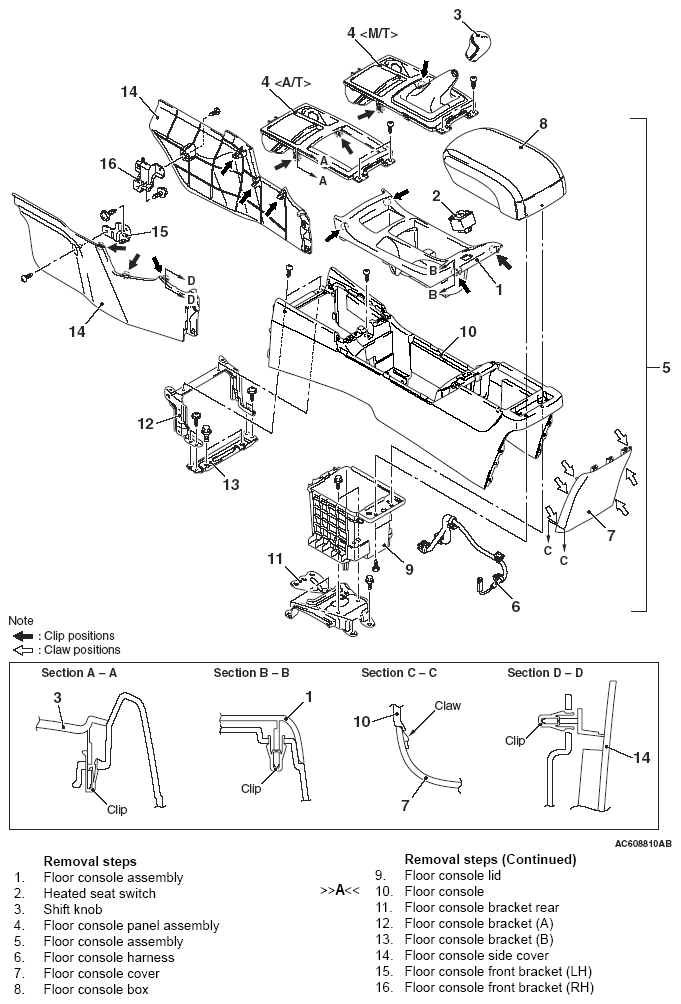

Fig 1: Identifying Floor Console Assembly Remove / Install Components
G05384598Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
