Home >> Mitsubishi >> 2008 >> Lancer ES, Standard >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior - Lancer >> Headlining >> Removal And Installation >> Notes
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Removal And Installation: Notes

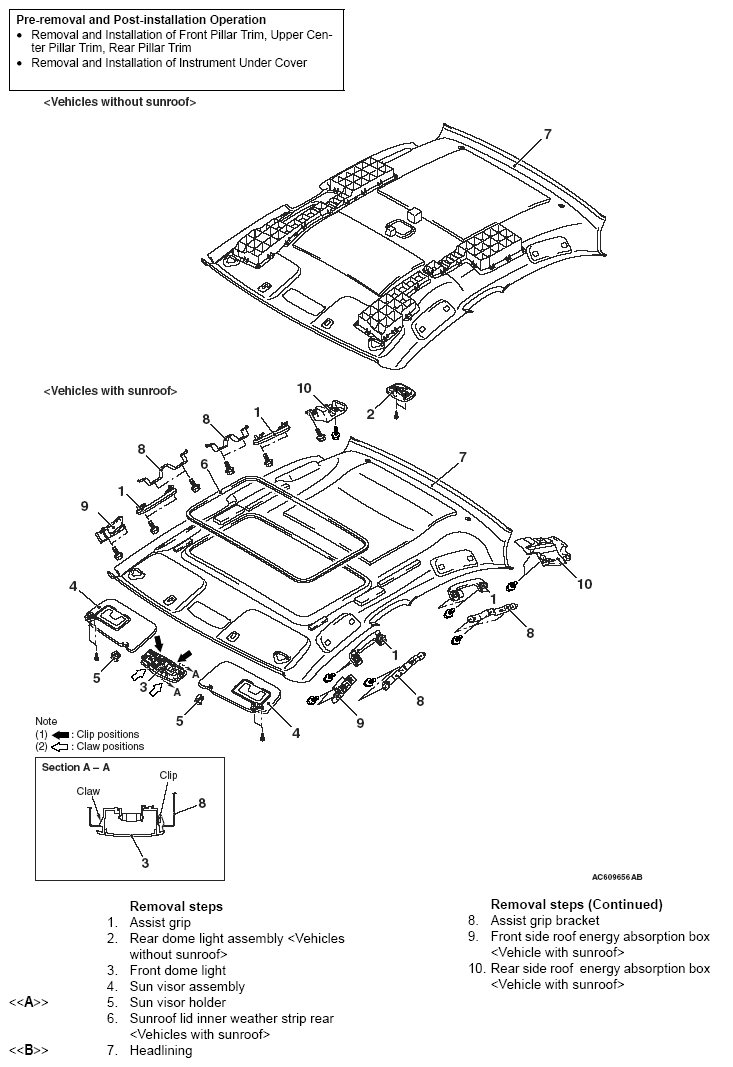

Fig 1: Identifying Sunroof Remove / Install Components
G05384605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
