Removal And Installation: Notes

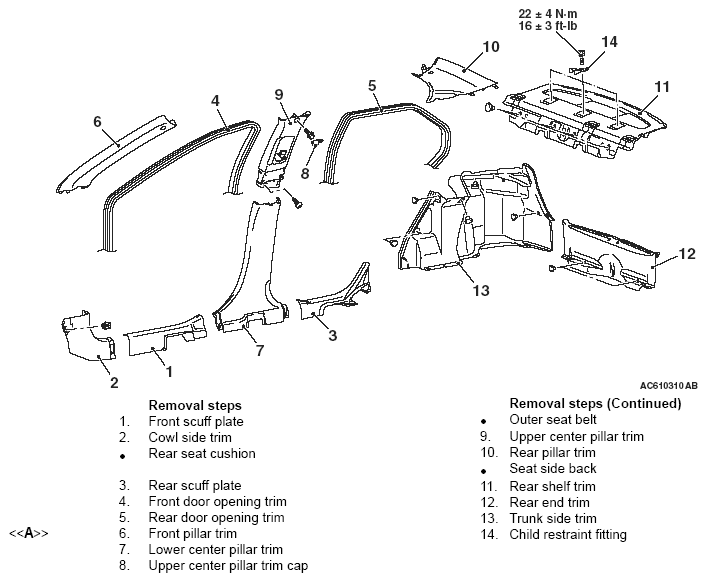

Fig 1: Trims Replacement Components With Torque Specifications
G05384600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
