DTC 22: Stoplight Switch System
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC 22: Stoplight Switch System: Notes

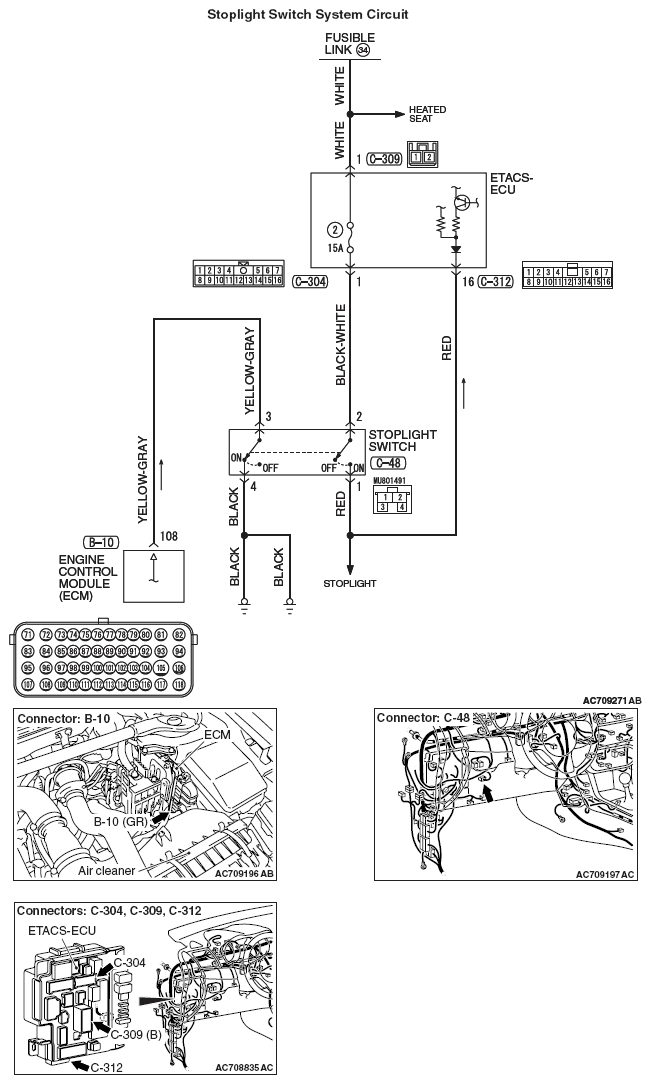

Fig 1: Stoplight Switch System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
