Home >> Mitsubishi >> 2008 >> Lancer Evolution MR >> Repair and Diagnosis >> Body & Frame >> Windows >> Body - Lancer Evolution >> Splash Shield >> Removal And Installation
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Removal And Installation

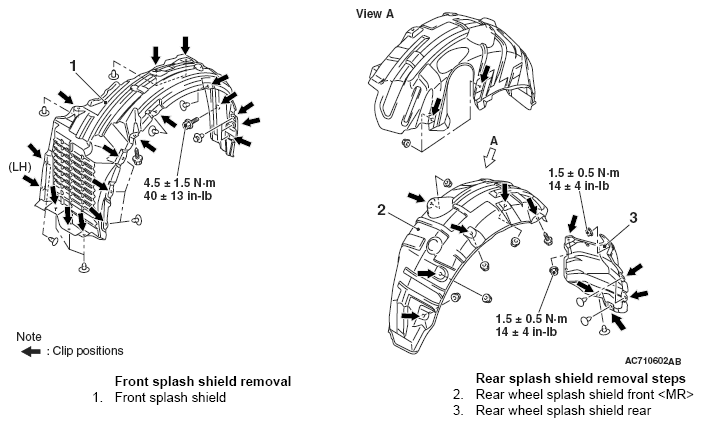

Fig 1: Splash Shield Removal And Installation Replacement Components With Torque Specifications
G05394839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
