Removal And Installation: Notes

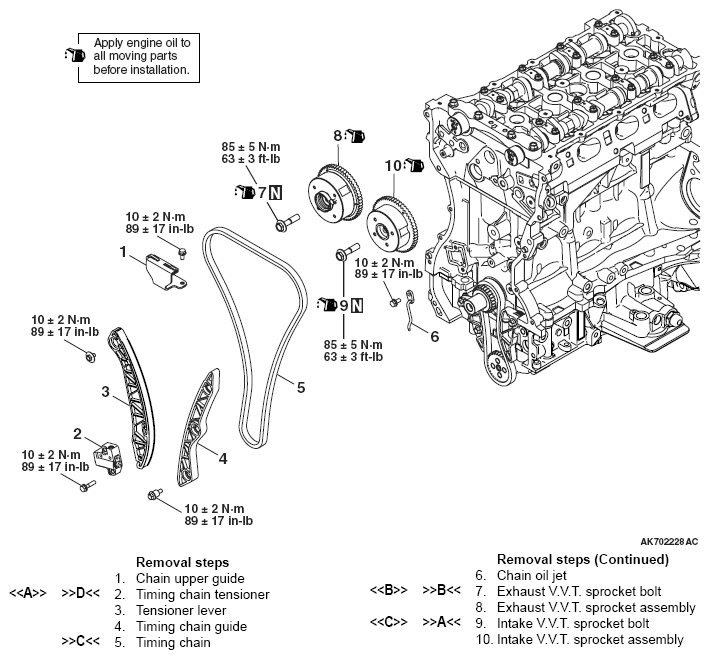

Fig 1: Timing Chain Replacement Components With Torque Specifications
G05392552Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
