Disassembly And Assembly

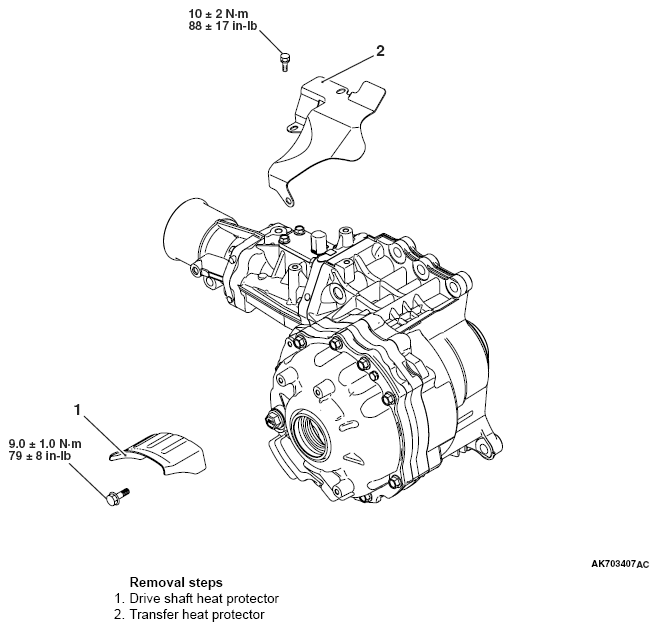

Fig 1: Drive Shaft Heat Protector And Transfer Heat Protector With Torque Specifications
G05394284Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
