Removal And Installation

NOTE: Refer to INSTRUMENT PANEL ASSEMBLY for the clip location .

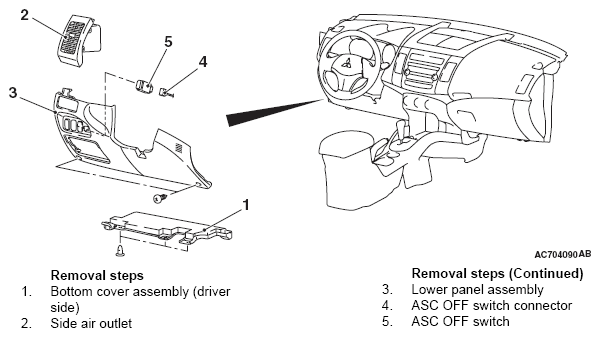

Fig 1: Identifying ASC Off Switch Components
G05432724Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
