Inspection Procedure 1: Communication Between Scan Tool And The TCL/ASC-Ecu Is Not Possible: Notes

Fig 1: Data Link Connector Circuit Diagram (Eclipse)
G05435561Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

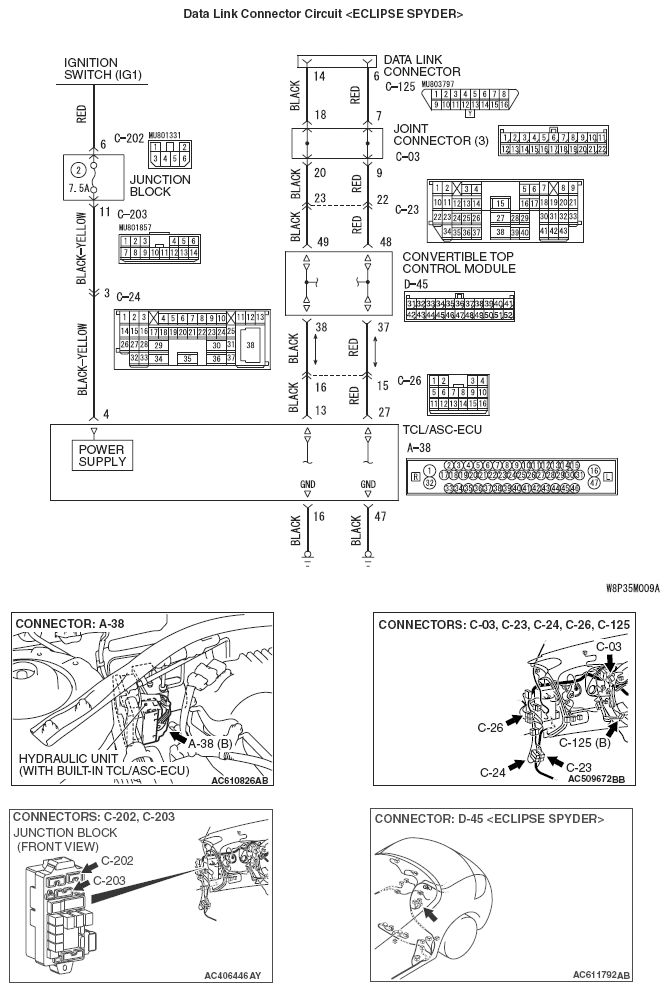

Fig 2: Data Link Connector Circuit Diagram (Eclipse Spyder)
G05435562Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
