OEM Component Locations: Sensor

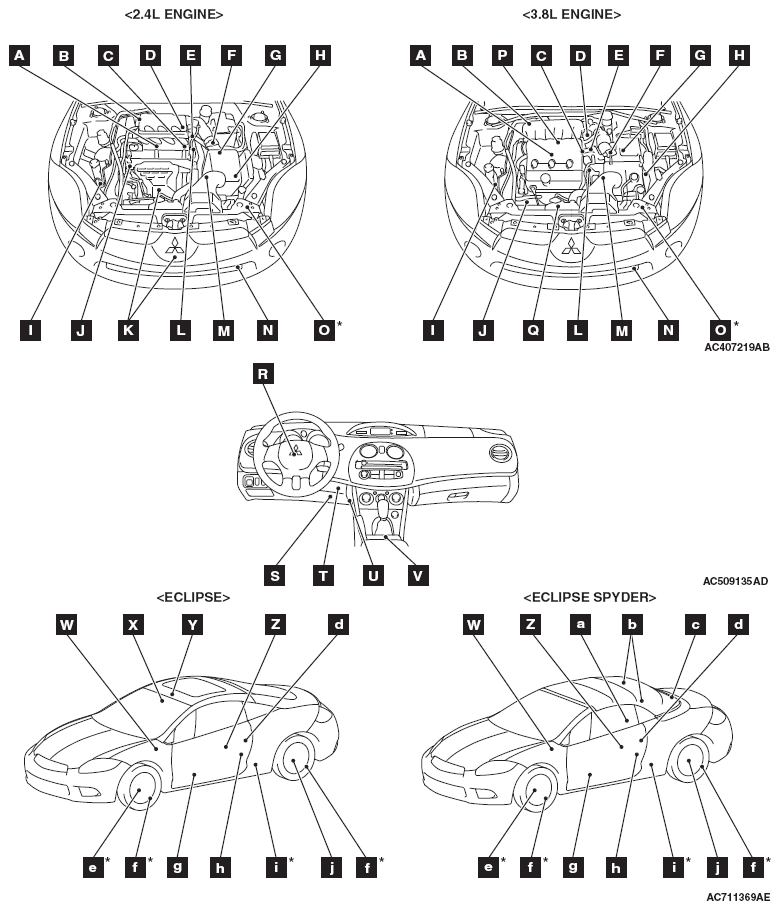

SENSOR SYMBOLS REFERENCE CHART
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|

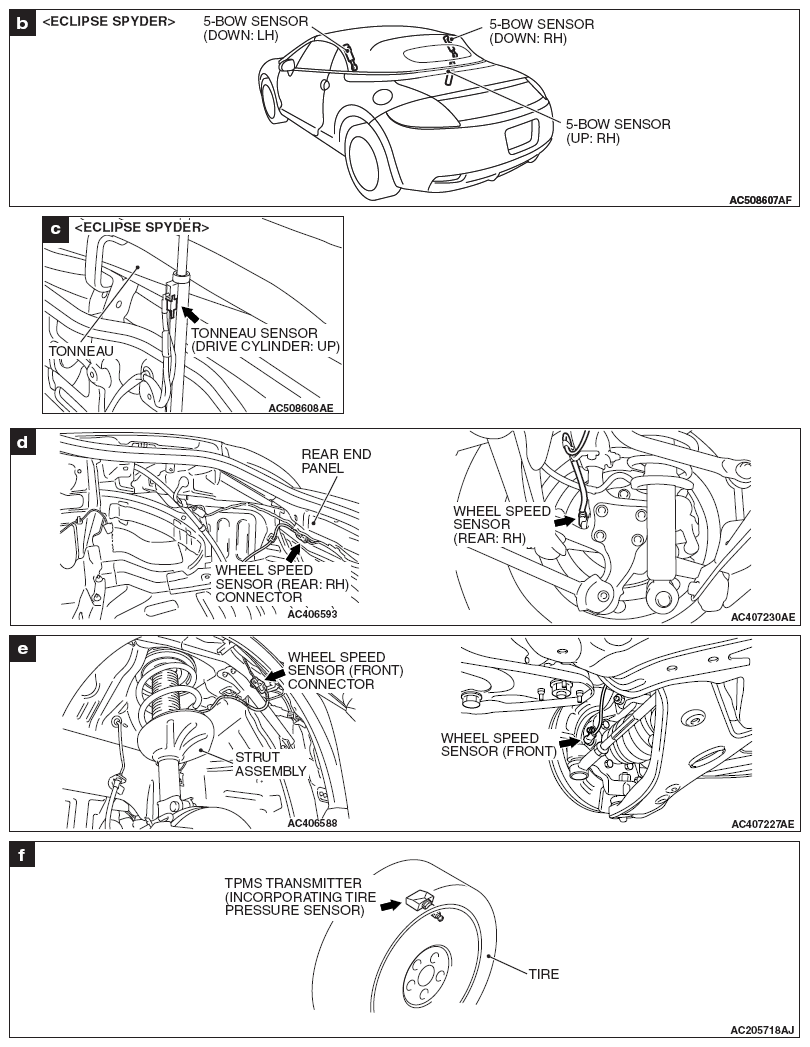

| 5-Bow sensor (Down: LH) < ECLIPSE SPYDER > | b | Input shaft speed sensor < A/T > | M |

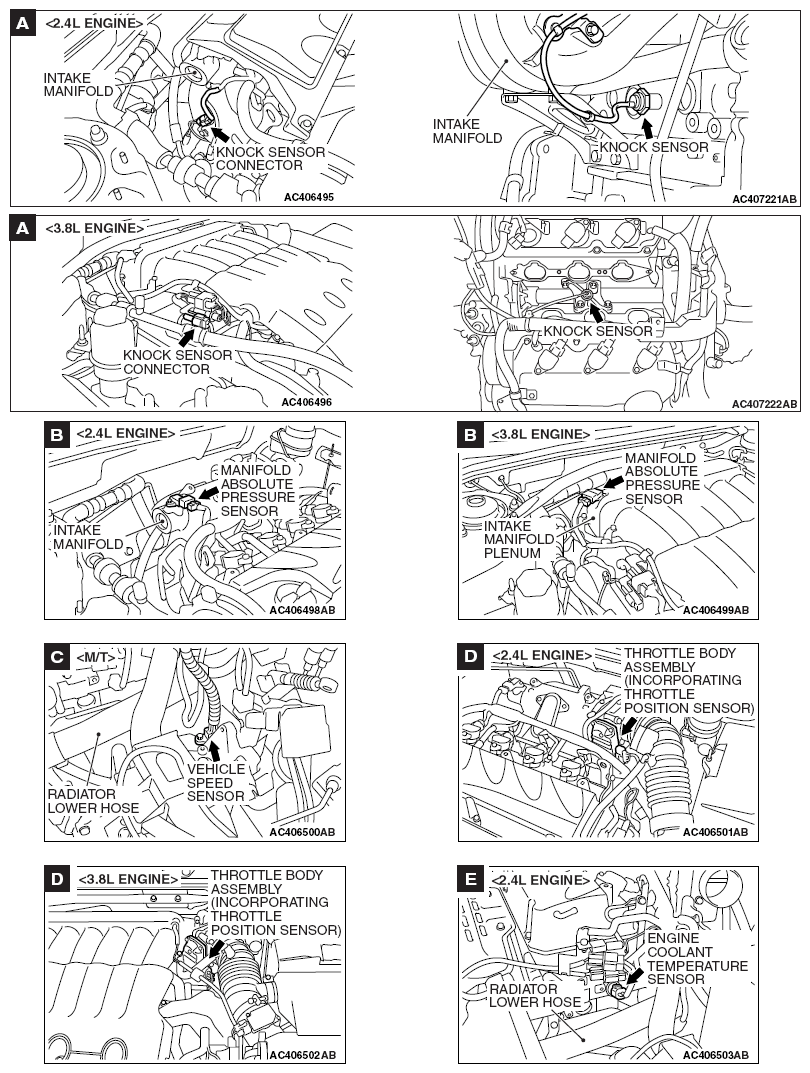

| 5-Bow sensor (Down: RH) < ECLIPSE SPYDER > | b | Knock sensor | A |
| 5-Bow sensor (Up: RH) < ECLIPSE SPYDER > | b | Left bank heated oxygen sensor (front) < 3.8L Engine > | Q |
| A/C pressure sensor | I | Left bank heated oxygen sensor (rear) < 3.8L Engine > | Q |
| A/T control solenoid valve assembly (Incorporating transmission fluid temperature sensor) | H | Manifold absolute pressure sensor | B |
| Accelerator pedal position sensor | S | Mass airflow sensor | F |
| Air thermo sensor | U | Occupant classification sensor (LH), (RH) | W |
| Ambient temperature sensor < A/C > | N | Output shaft speed sensor < A/T > | G |
| Ambient temperature sensor < Multi-center display > | N | Rear light sensor < Automatic anti-dazzling mirror > | X |

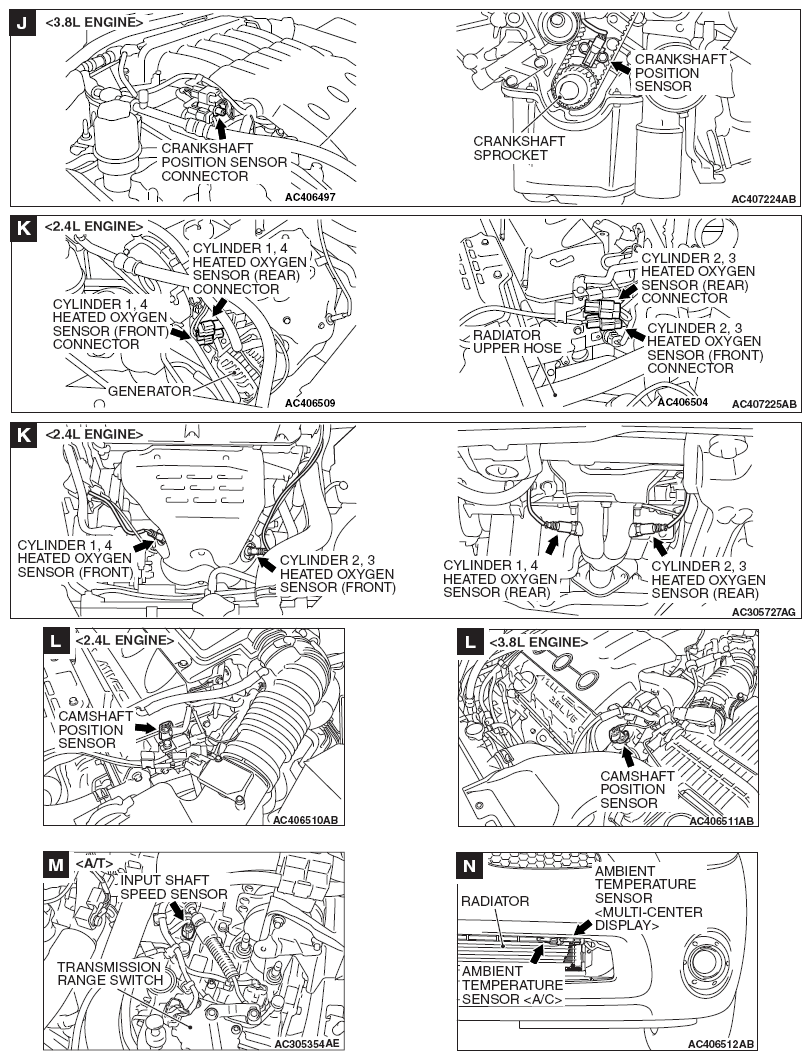

| Camshaft position sensor | L | Right bank heated oxygen sensor (front) < 3.8L Engine > | P |
| Crankshaft position sensor | J | Right bank heated oxygen sensor (rear) < 3.8L Engine > | P |

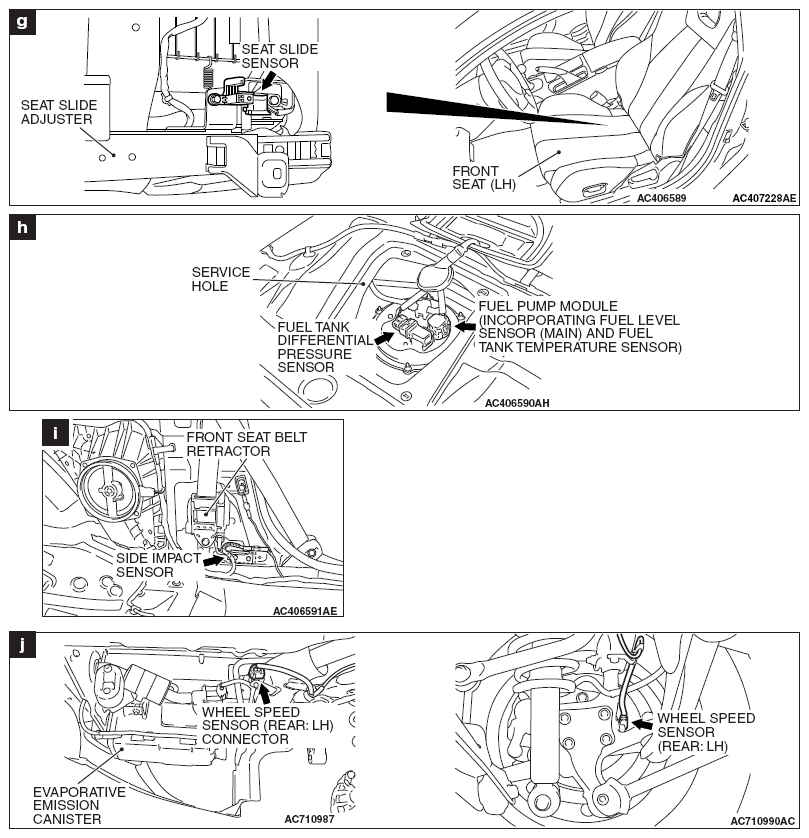

| Cylinder 1, 4 heated oxygen sensor (front) < 2.4L Engine > | K | Seat slide sensor | g |
| Cylinder 1, 4 heated oxygen sensor (rear) < 2.4L Engine > | K | Side impact sensor | i |
| Cylinder 2, 3 heated oxygen sensor (front) < 2.4L Engine > | K | Steering wheel sensor < ASC > | R |
| Cylinder 2, 3 heated oxygen sensor (rear) < 2.4L Engine > | K | Sunroof motor assembly (Incorporating pulse sensor) | Y |

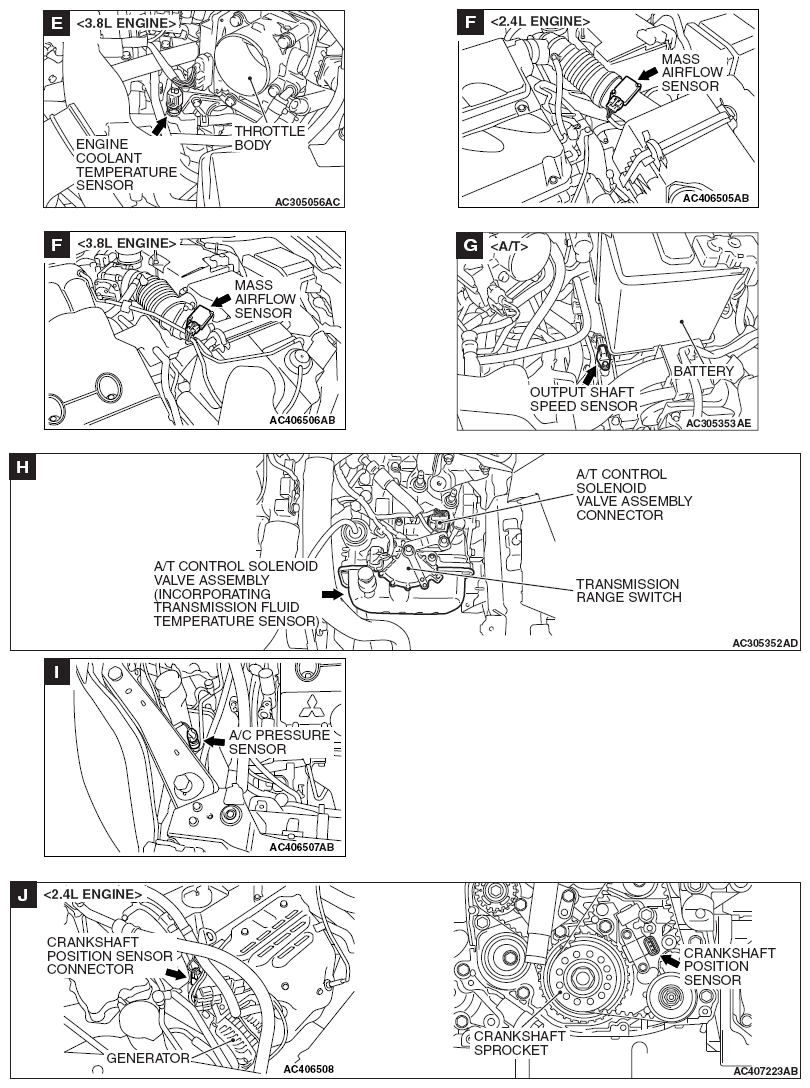

| Engine coolant temperature sensor | E | Throttle body assembly (Incorporating throttle position sensor) | D |

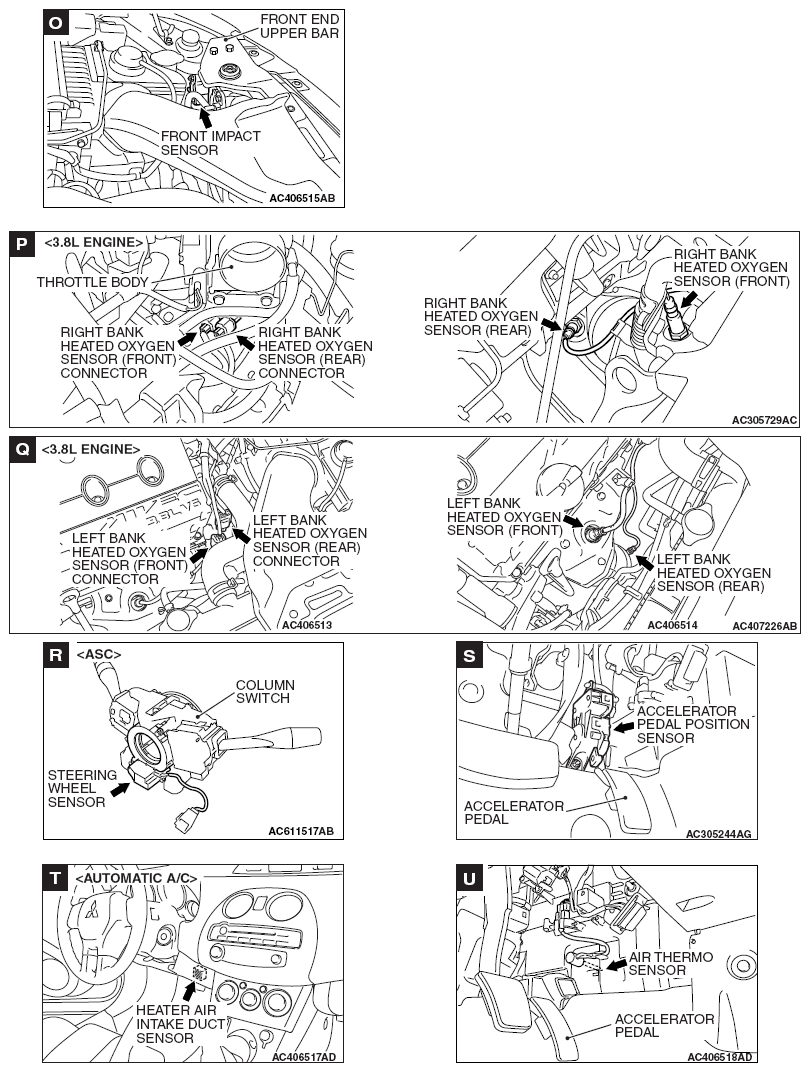

| Front impact sensor | O | Tonneau latch open sensor < ECLIPSE SPYDER > | a |
| Front light sensor < Automatic anti-dazzling mirror > | X | Tonneau sensor (Drive cylinder: Up) < ECLIPSE SPYDER > | c |
| Fuel level sensor (sub) | Z | TPMS transmitter (Incorporating tire pressure sensor) | f |
| Fuel pump module (Incorporating fuel level sensor (main) and fuel tank temperature sensor) | h | Vehicle speed sensor < M/T > | C |
| Wheel speed sensor (front) | e | ||
| Fuel tank differential pressure sensor | h | Wheel speed sensor (rear: LH) | j |

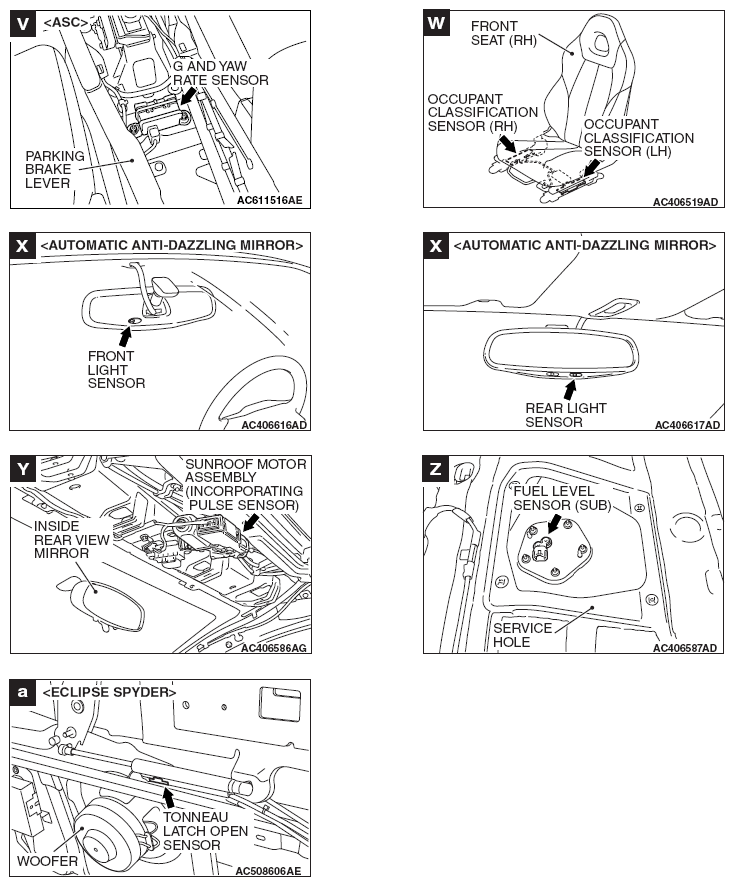

| G and yaw rate sensor < ASC > | V | Wheel speed sensor (rear: RH) | d |
| Heater air intake duct sensor < Automatic A/C > | T |
NOTE:
The * symbols indicate equipped at both sides.
