System Specifications

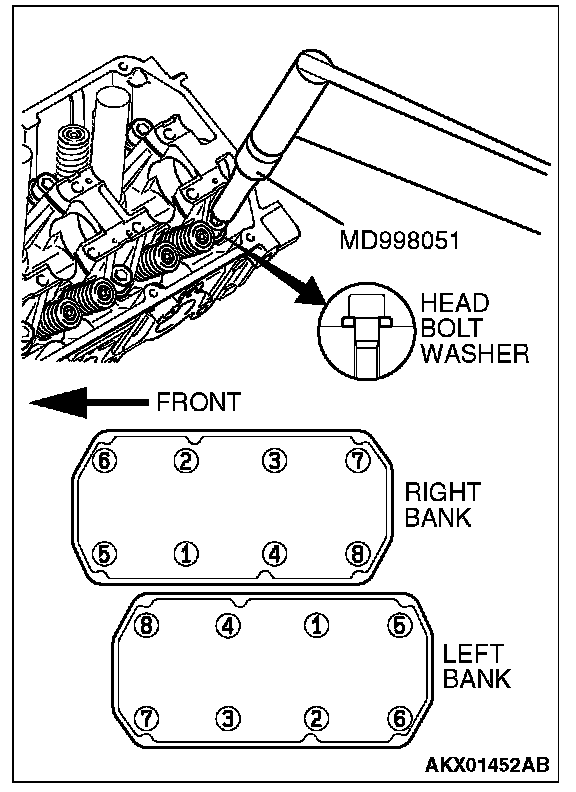

Cylinder Head Bolts
First Pass 108 ± 5 Nm (80 ± 4 ft-lb)
Second Pass 0 Nm (0 in-lb)
Final Pass 108 ± 5 Nm (80 ± 4 ft-lb)

Cylinder Head Surface Variation
Standard value 0.03 mm (0.0012 inch)
Limit 0.2 mm (0.007 inch)

Intake Manifold Nut 20 - 23 Nm (15 - 17 ft-lb)
Intake Manifold Plenum Bolt 22 ± 1 Nm (16 ± 1 ft-lb)

Camshaft Sprocket Bolt 88 ± 10 Nm (65 ± 7 ft-lb)

Exhaust Manifold Nut 44 ± 5 Nm (33 ± 4 ft-lb)
