Disassembly And Assembly: Notes

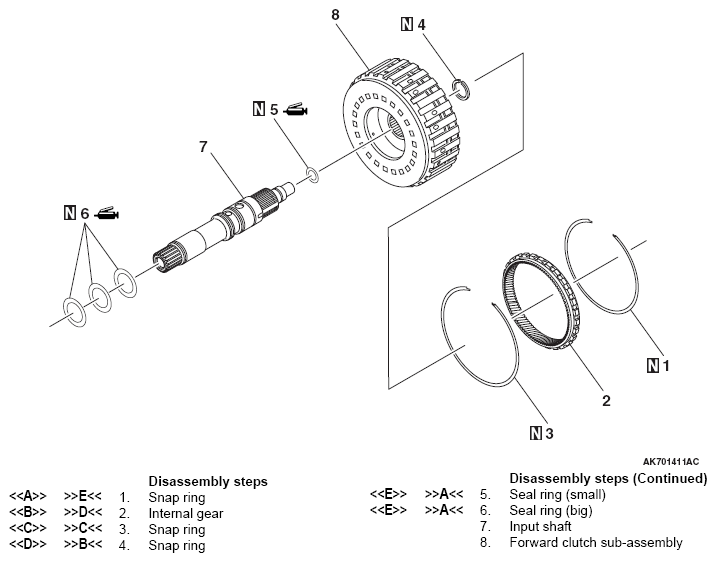

Fig 1: Identifying Forward Clutch Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
